Yh-A26 X1d Drone Detection & Positioning System

Overview

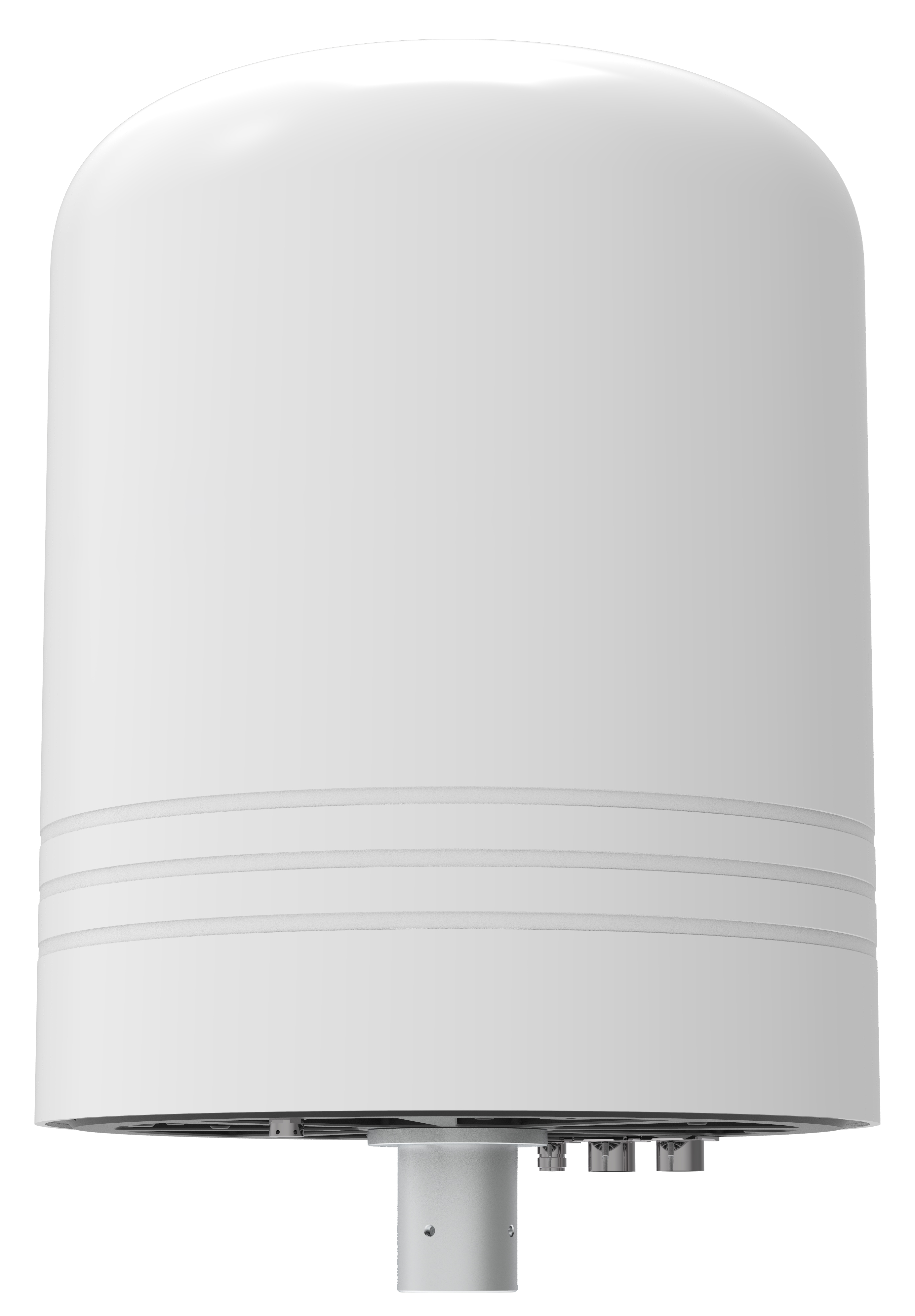

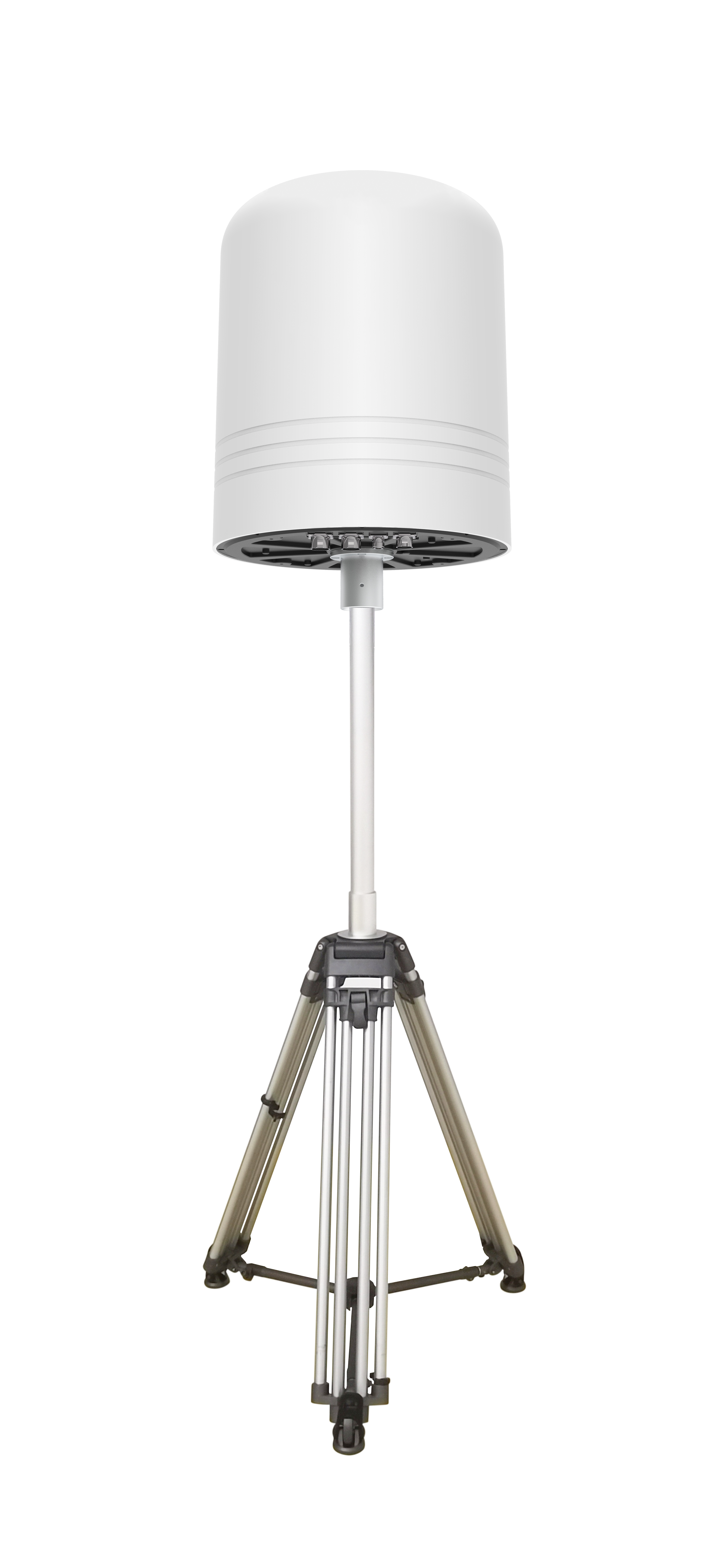

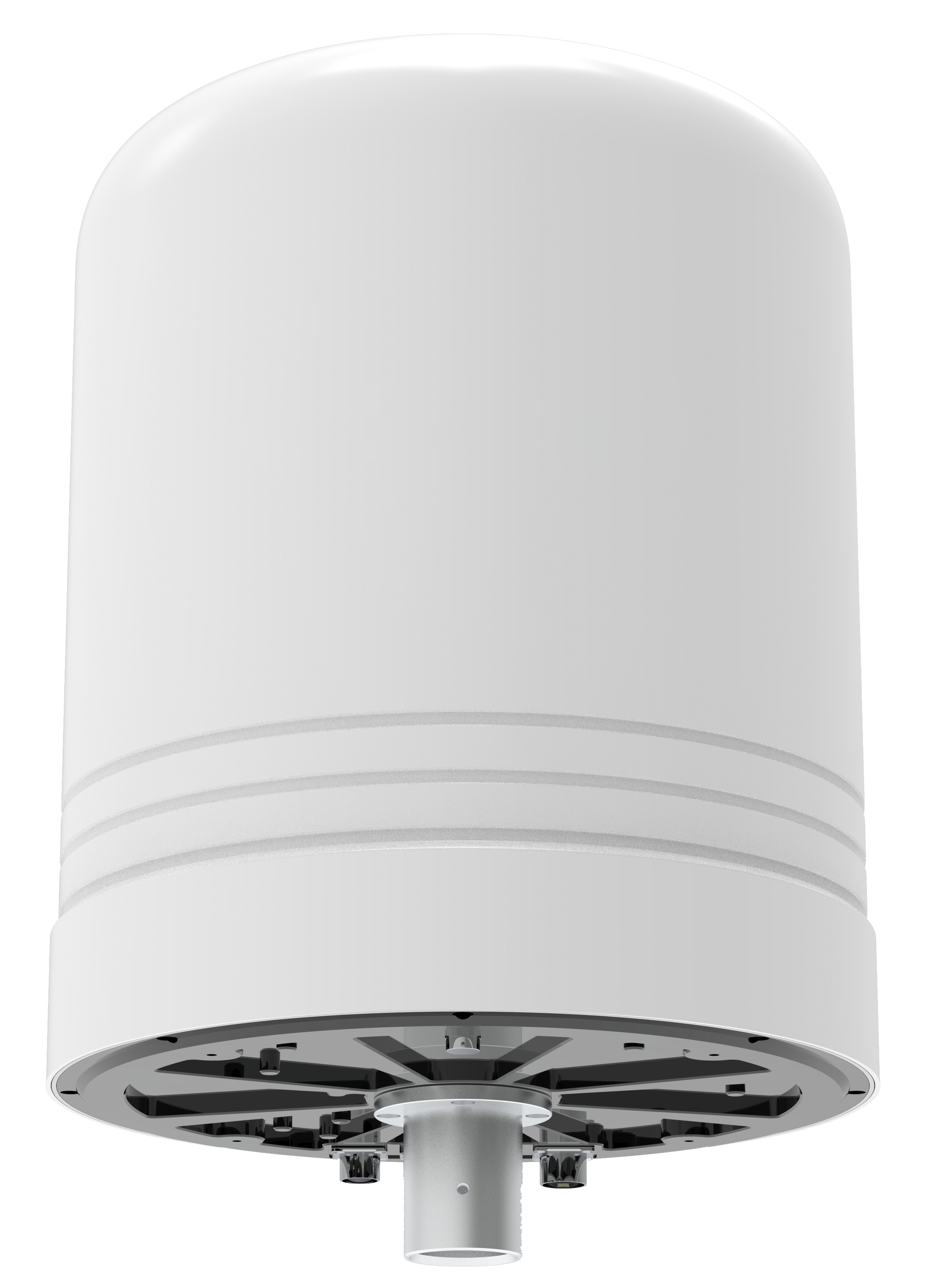

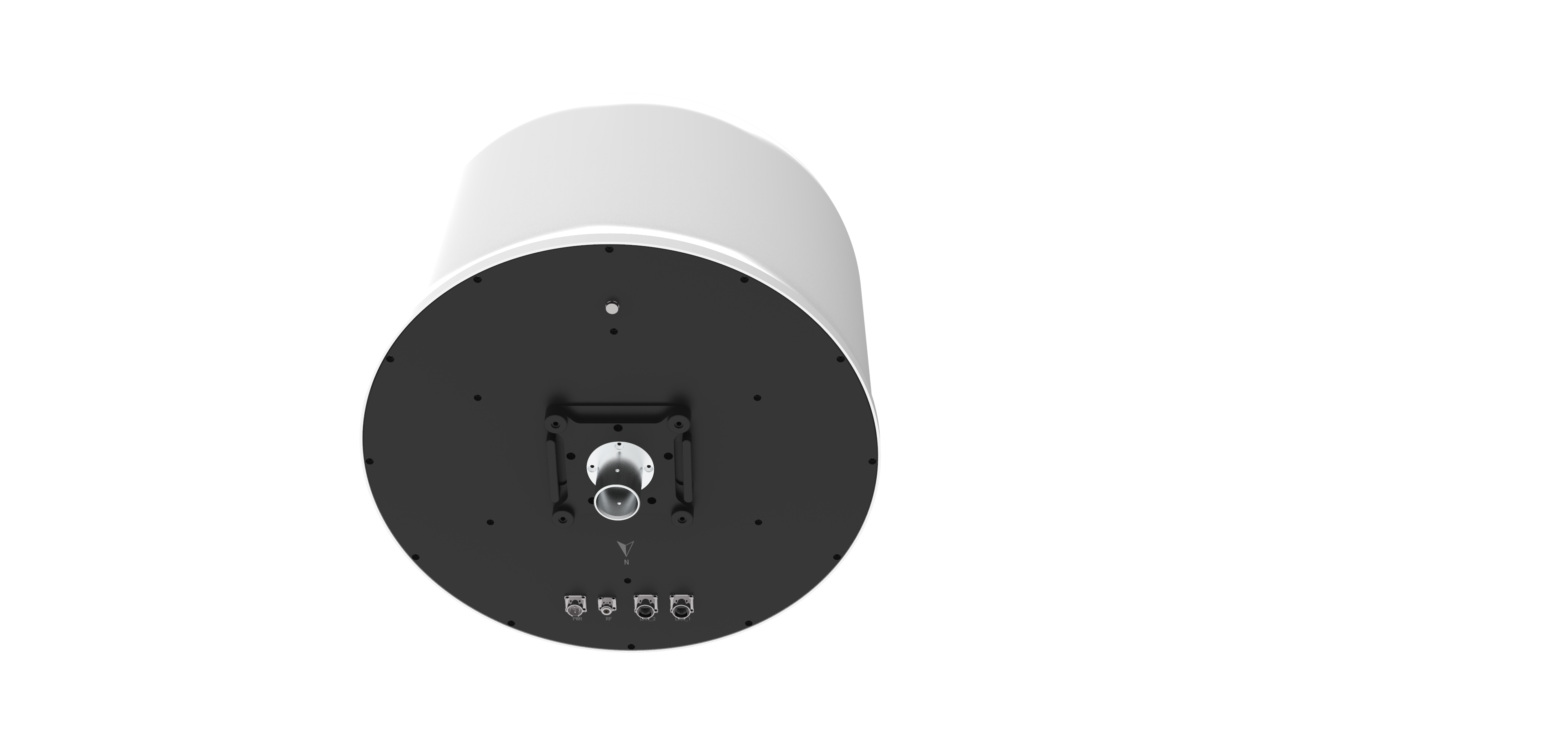

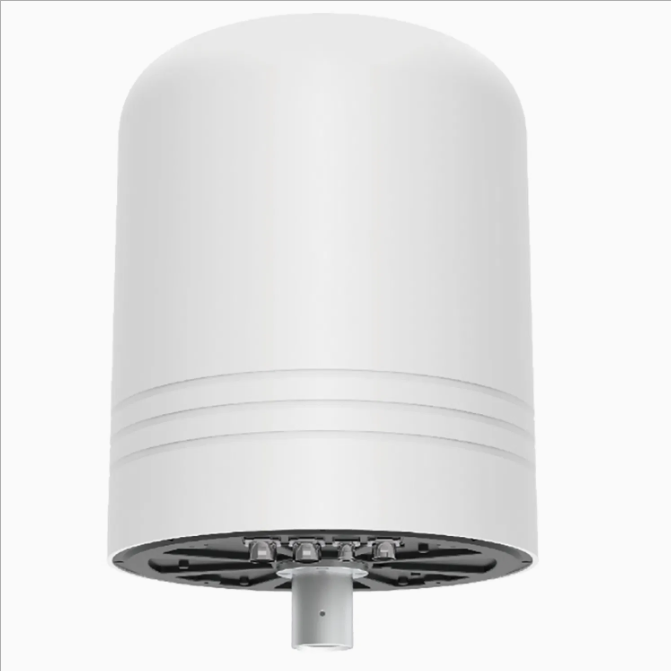

YH-A26 is a drone detector with drone intrusion alarm, identification, direction-finding and networking location capabilities. One signal device detects and finds drone direction. Multiple FTA1 network to locate drones via TDOA (time difference of arrival) algorithm. It emits no signal which makes it interfer-ence-free and suitable for urban environ-ment.

Functions

1) Drone positioning:Multiple FTA1 network to locate drone.

2) Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.

3) Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.

4) Abnormal signal identification: The system can identify abnormal signals based on the spectrum scanning results and display them in the list to assist security personnel in handling abnormal signals.

5) Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.

6) Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.

7) Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.

8) Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data.

9) Detection Record: The detection record list can retain historical detection records, including multi-dimensional information such as drone serial number, model, frequency, etc.

10) Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).

11) Standard API interface: The device has an API interface that can upload data to a specified system.

Product parameters
