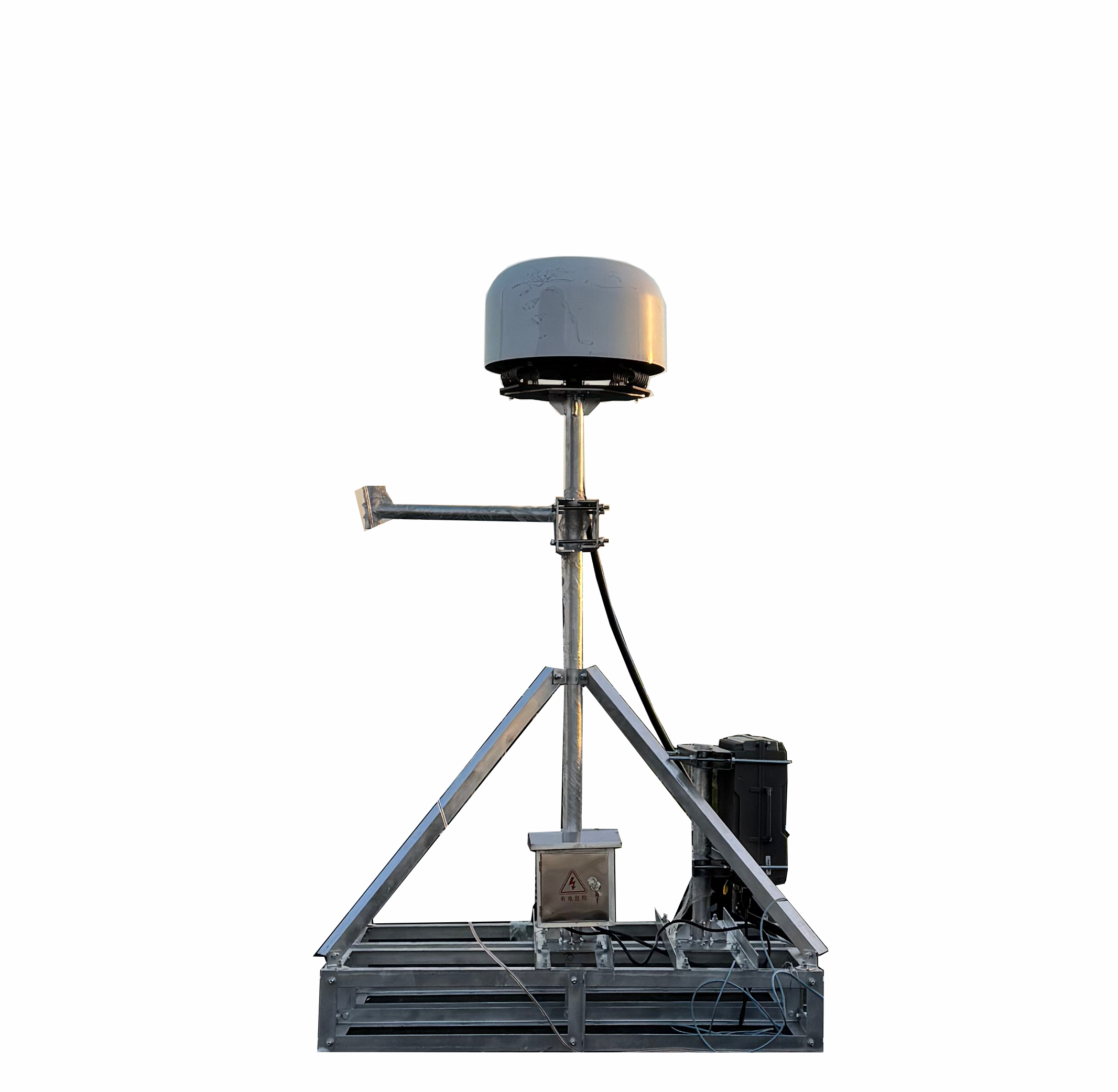

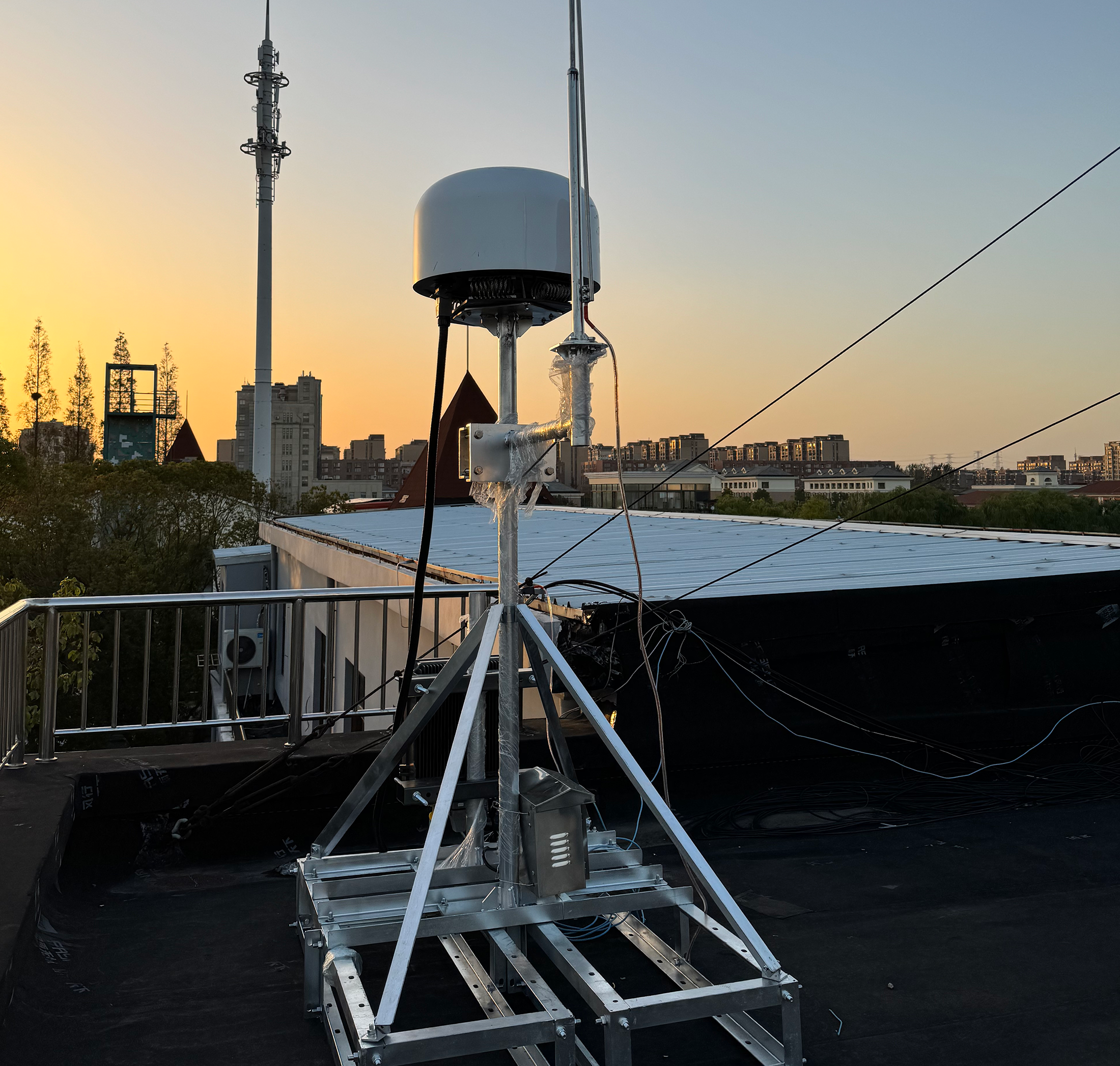

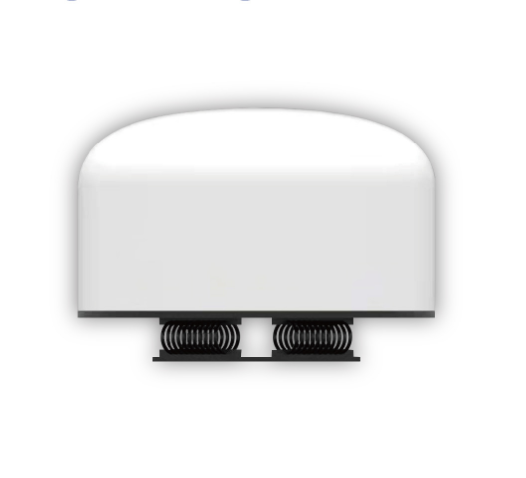

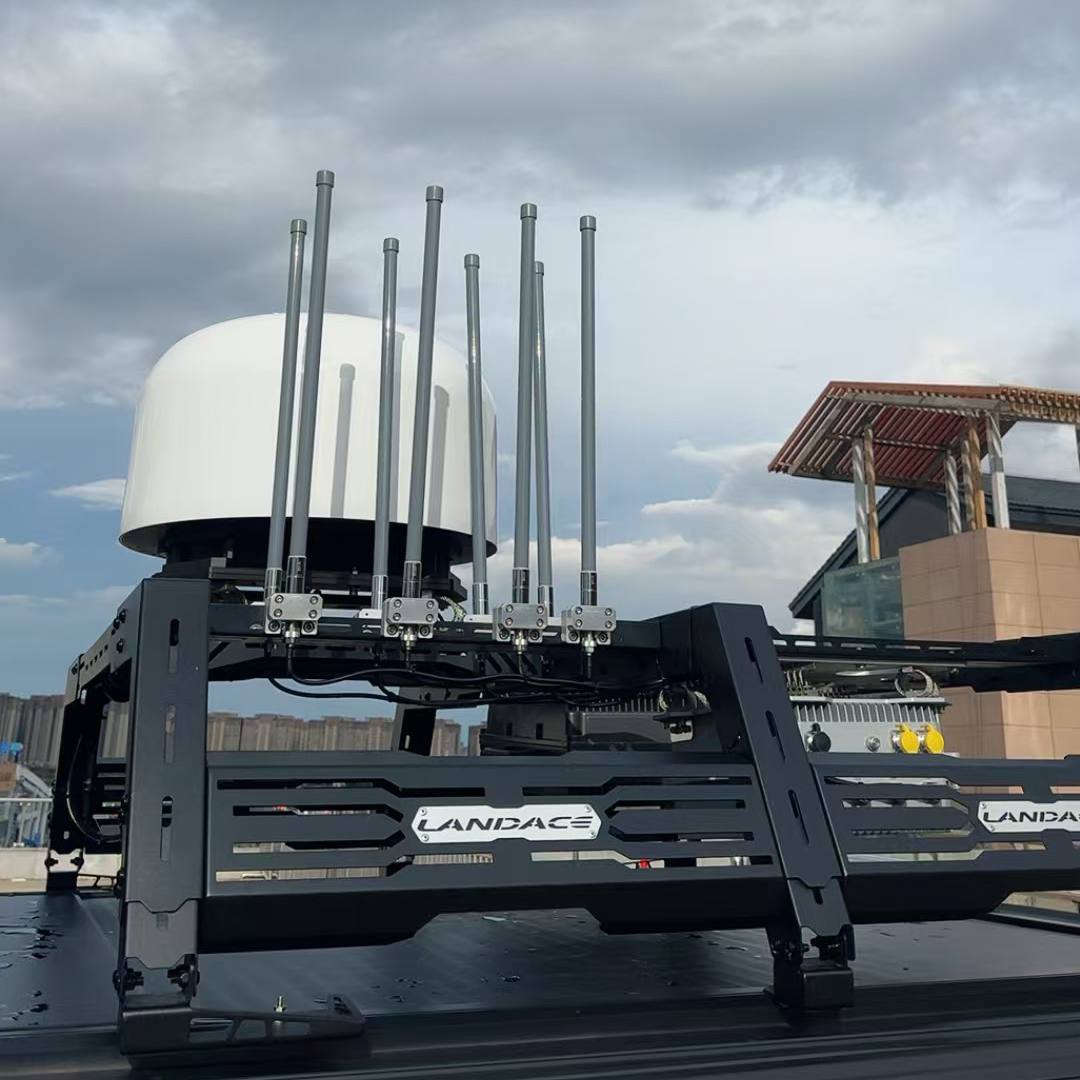

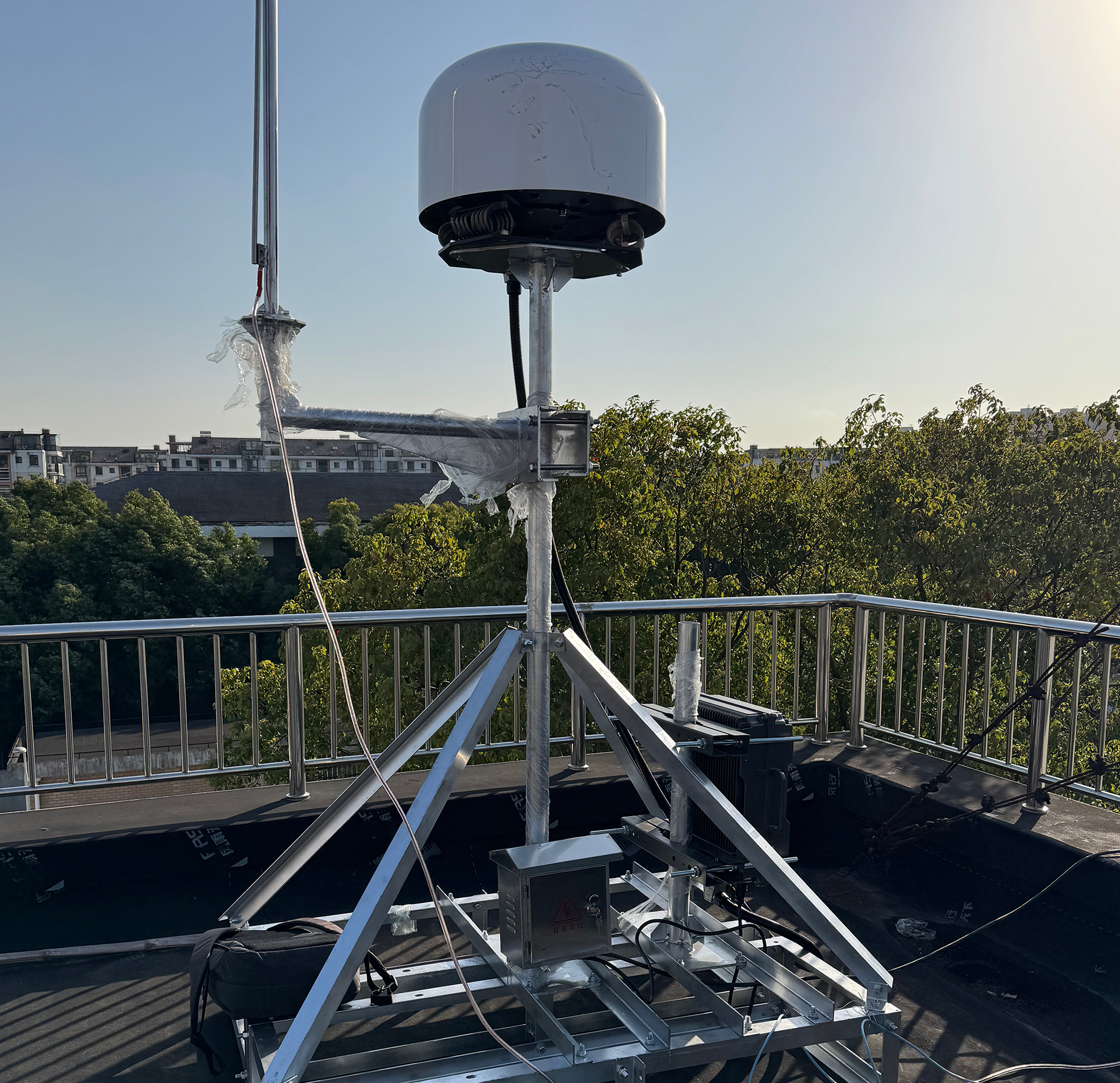

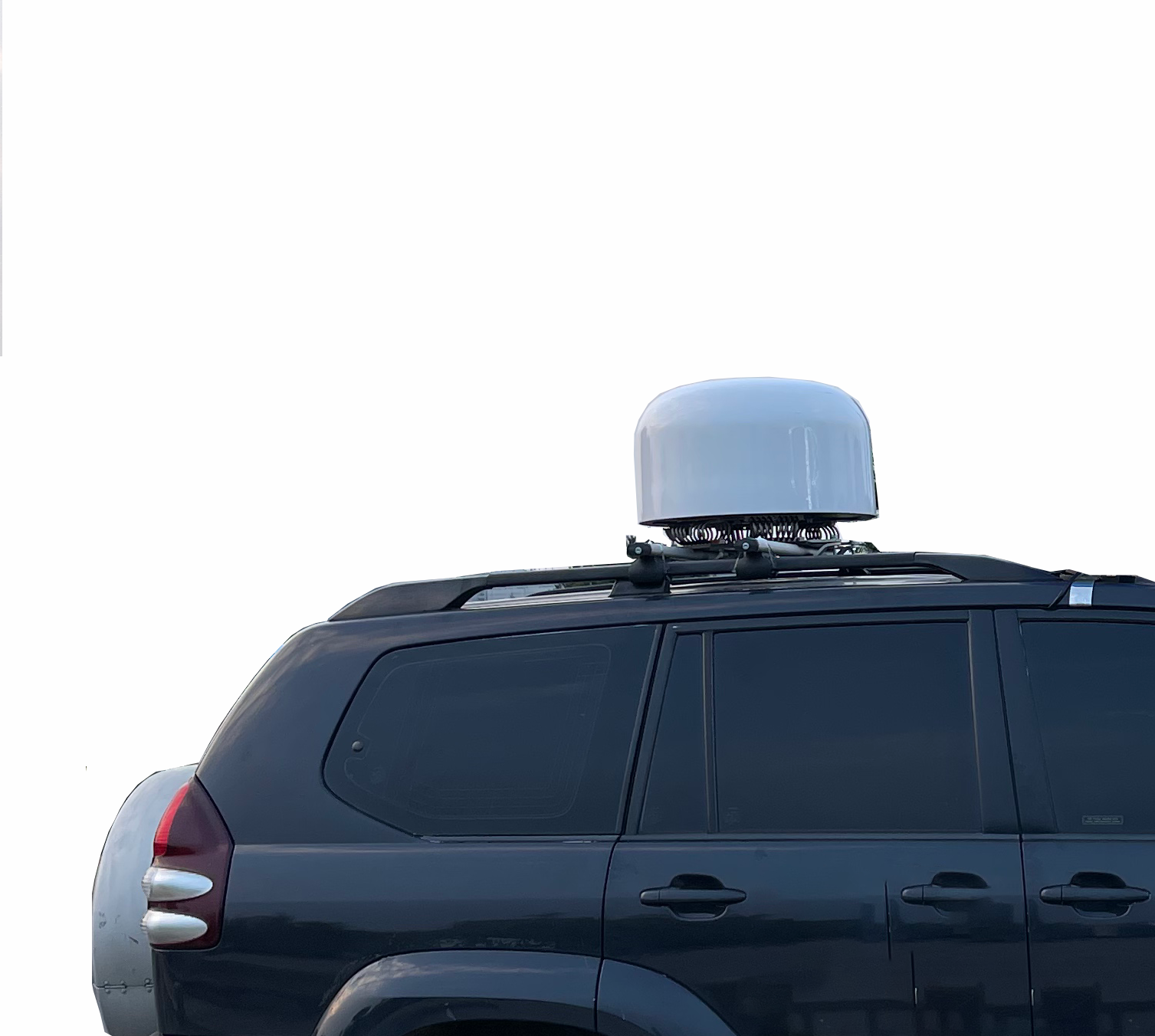

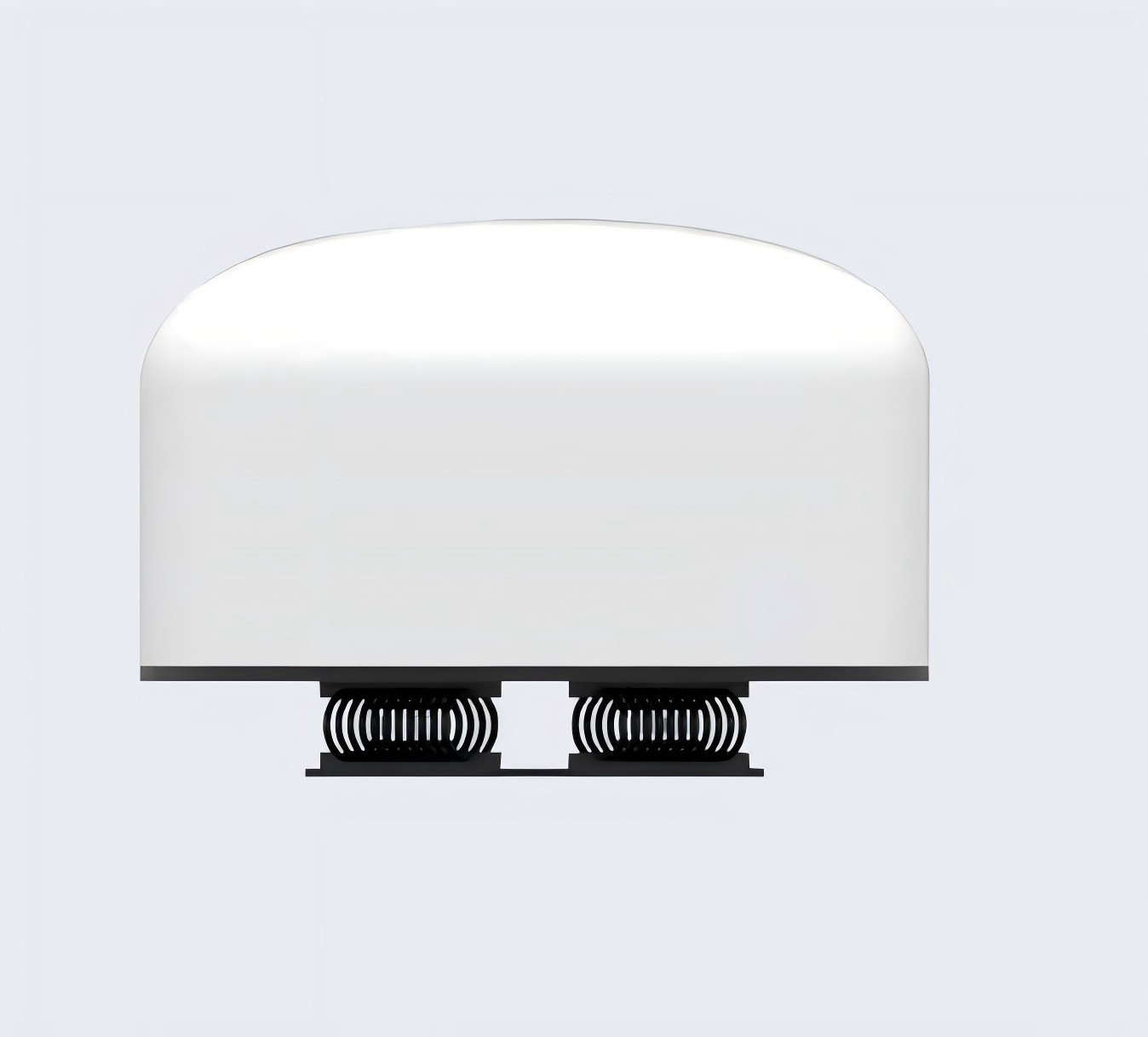

Yh-A25 D2c-A2 Drone Detection and Attack Integrated Equipment

Number

Index

Parameter

Notes

1

Detection and identification of drone types

DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Powervision, Tello drones etc.

2

Localizable drone models

DJI mavic,air,mini,FPV,avata.etc

3

Detection frequency band

100MHz~6GHz

4

Detection and positioning distance

1~5km

Depending on the environment

5

Detection height

0m~1000m

6

Number of targets that can be detected simultaneously

≥10 sorties

7

Capable of simultaneously tracking and displaying drone trajectories

≥5strip

8

Azimuth error

≤1°(RMS)

9

Positioning accuracy

≤10m

10

Detection success rate

≥97%

11

Identify response time

≤3s

Product Performance Indicators

Number

Index

Parameter

Notes

1

Operation mode

Radio jamming suppression

2

Object of action

UAV image transmission, flight control link, navigation signal

3

Action frequency band

Channel1(900MHz) :(915)MHz~(917)MHz

Channel 2(1.5GHz):(1563)MHz~(1603) MHz

Channel 3(2.4GHz):(2400)MHz~(2483.5)MHz

Channel 4(5.2GHz):(5150)MHz~(5350)MHz

Channel 5(5.8GHz):(5725)MHz~(5850)MHz

And other common frequency channels can be independently controlled and flexibly combined as needed

4

Transmitting power

Output Power per Port(Average Power):

Channel 1:(37±2)dBm

Channel 2:(37±2)dBm

Channel 3:(45±2)dBm

Channel 4:(45±2)dBm

Channel 5:(45±2)dBm.

5

Reverse distance

1km-2km (there may be some differences depending on the environment and model)

Depending on the environment

6

Counter mode

Directional and omnidirectional

7

Capable of simultaneously tracking and displaying drone trajectories

≥5strip

8

Azimuth error

≤1°(RMS)

9

Positioning accuracy

≤10m

10

Detection success rate

≥97%

11

Identify response time

≤3s
