Overview

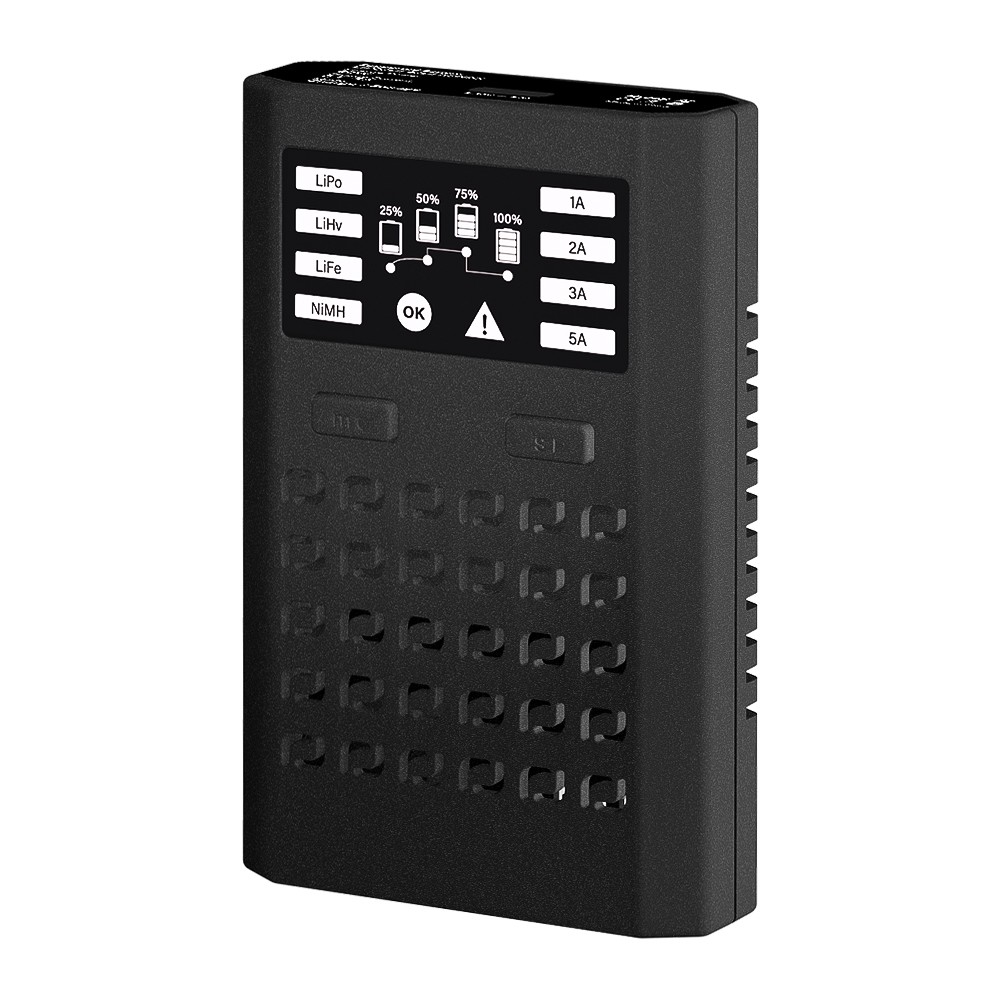

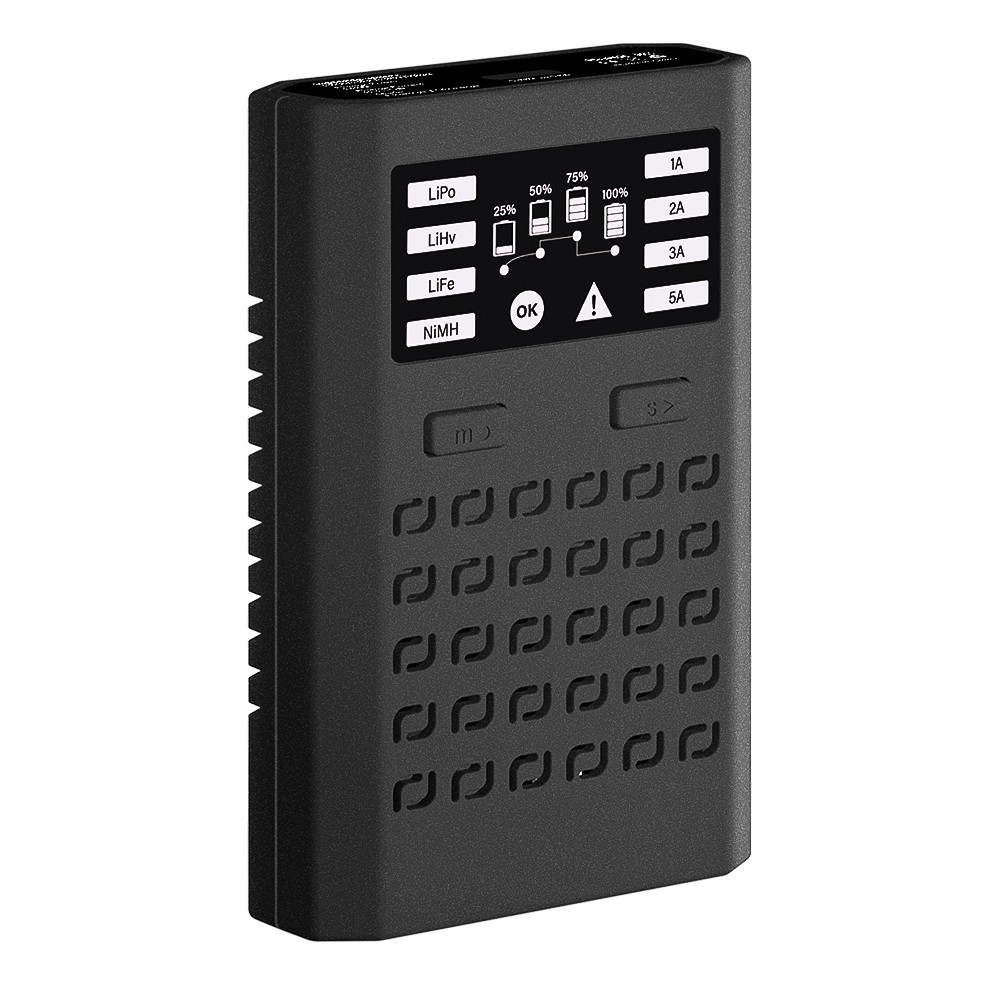

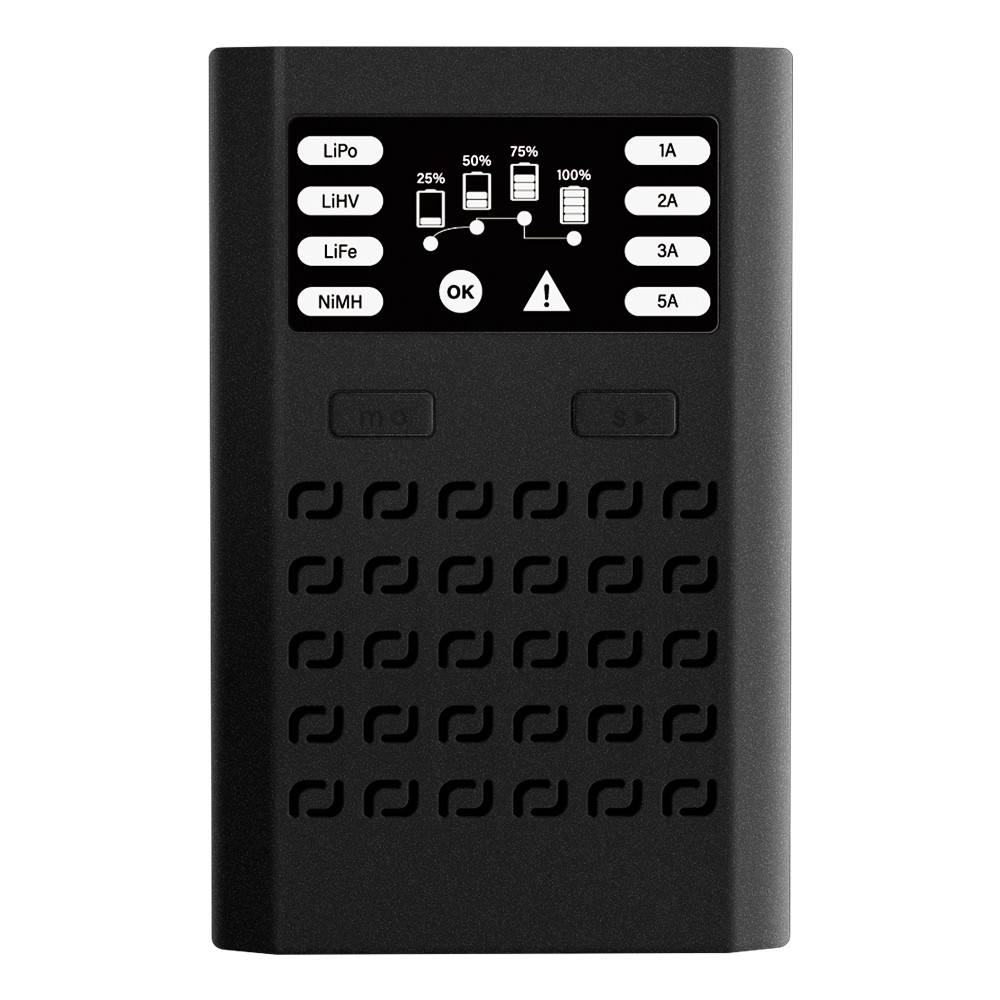

The E5 balanced charger adopts an integrated output design of DC/DC control circuit. It has a wide range of application conditions and is easy to operate and understand. The product features an exquisite and beautiful appearance design. It is equipped with four high-brightness LED lights for indication, which can simply and conveniently show the working status of the product during operation, allowing customers to keep track of the product's working condition at any time.
Product specification
Work pattern | Max. power | Input voltage | Combined regulation | Current |
Charging | 55W |
| ±10mV | 5A |
Balanced | / | / | 400mA |
Hightemperature | +60℃ | Thermalshock | -25℃ to75℃,3min |
Lowtemperature | 0℃ | Shellmaterial | Plastic |
Hightemperature | +70℃ | Outlinedimension | 98×98×36 mm |
Lowtemperature | -20℃ | Weight | 278 g |
Output characteristic or charge stages | ||
No | Item | Technicalspecification |
1 | CC(constantcurrent) | 5A |
2 | CV(constantvoltage) | LIPO:25.2V LIHV:26.1V LIFE:21.6V |
3 | Floatstage | ⁄ |
4 | BatteryType | LiPo,LIHV,LIFE,NIMH |
5 | Batterycellcount | LIXX:1 ~ 6 S |
6 | Unitcellvoltage | 2S-6S |
7 | PrechargeTime | / |
8 | DeltaPeak | / |
9 | Temperature protection | 75℃ |
10 | Safe time | 480Min |
11 | Unit cell voltage | 2.5 ~ 4.35 V |
