Overview

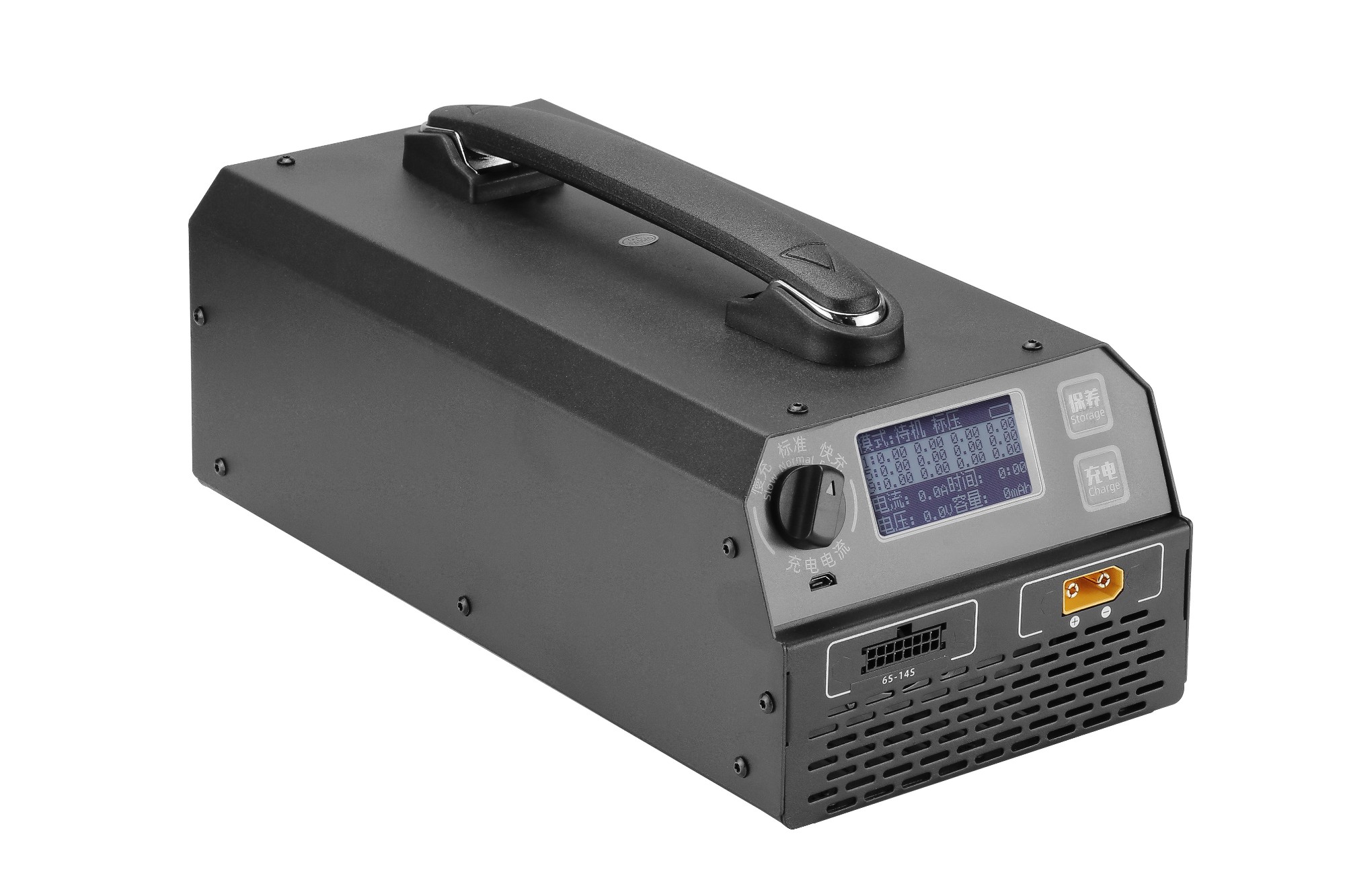

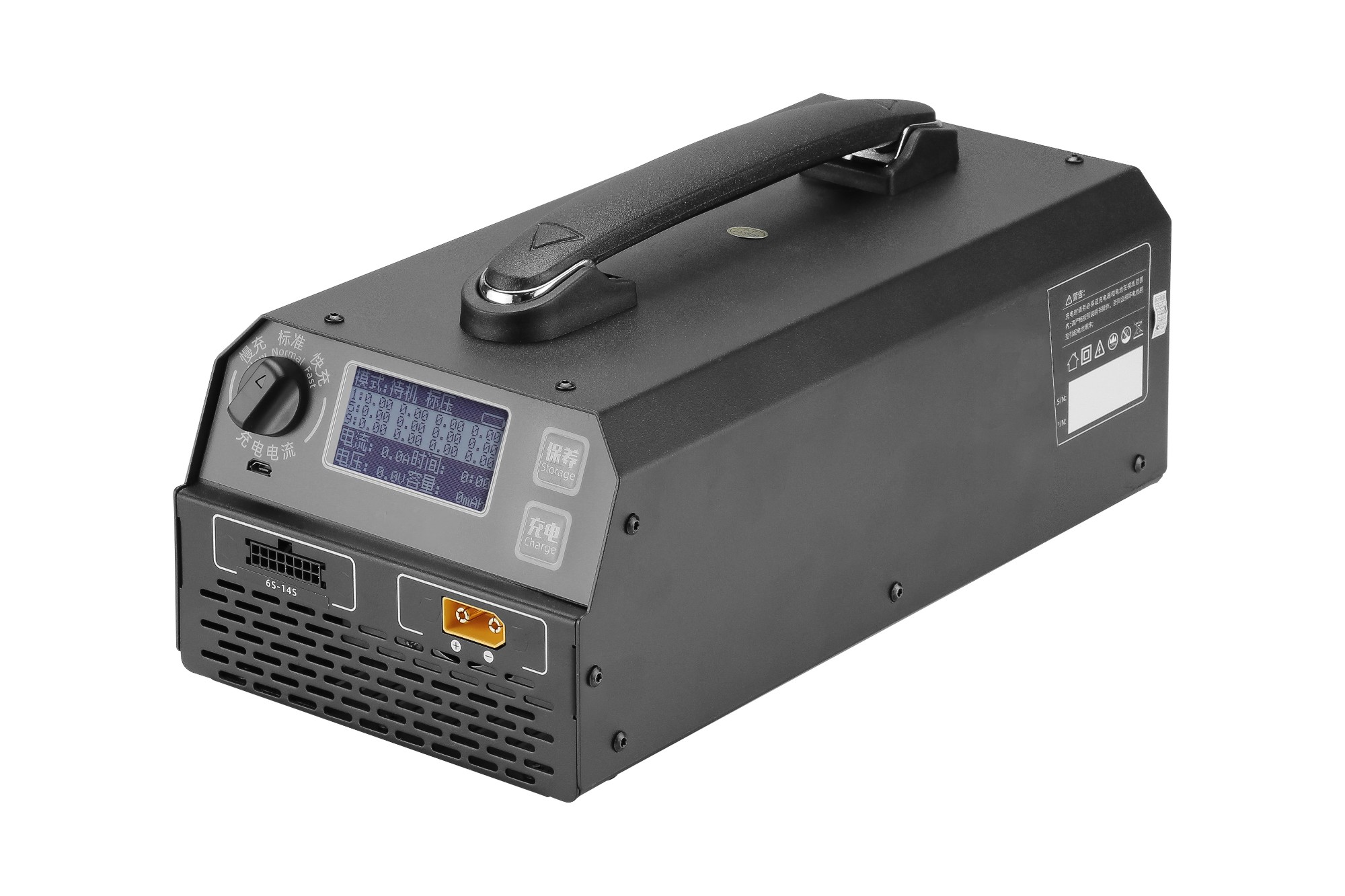

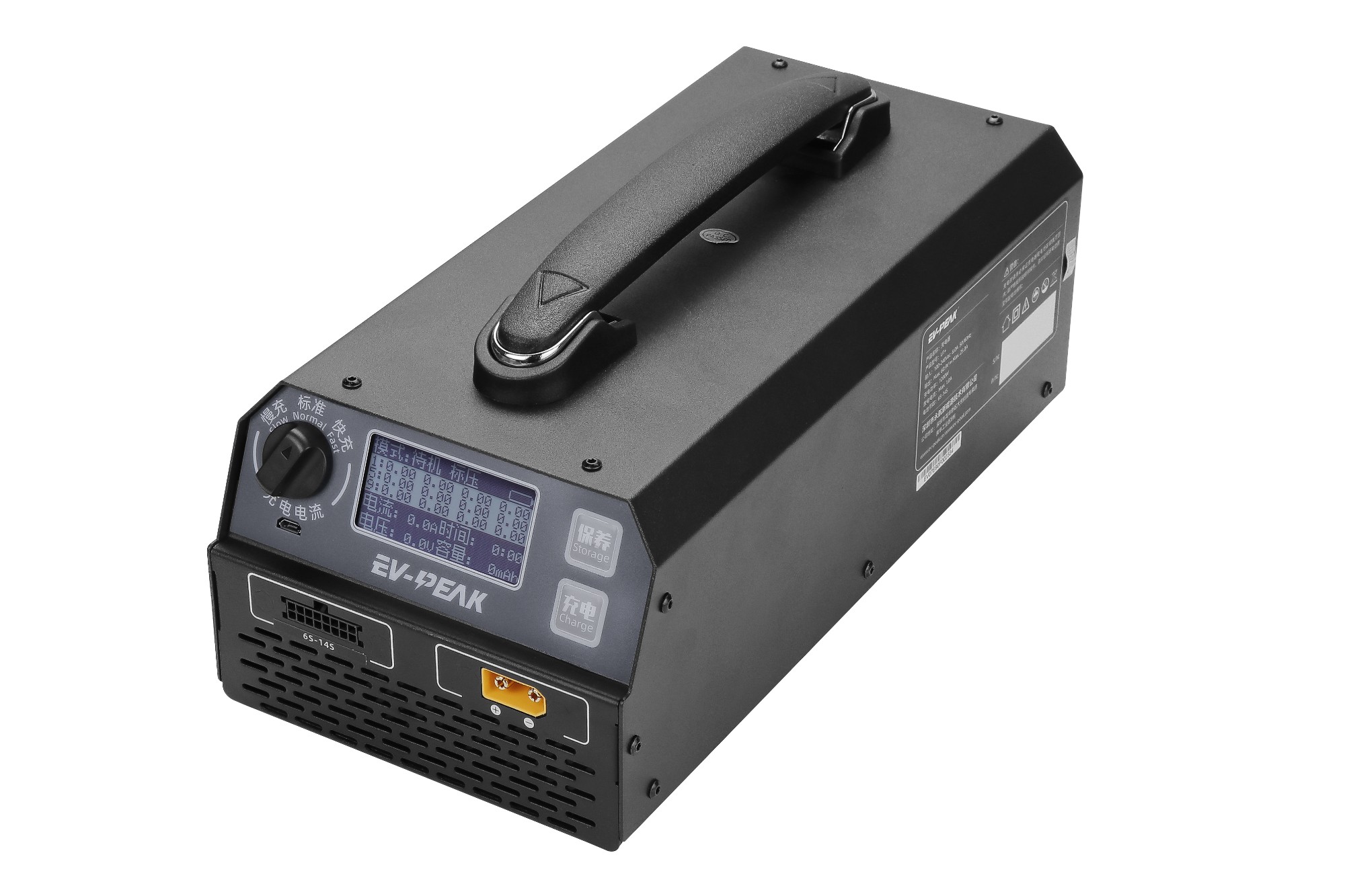

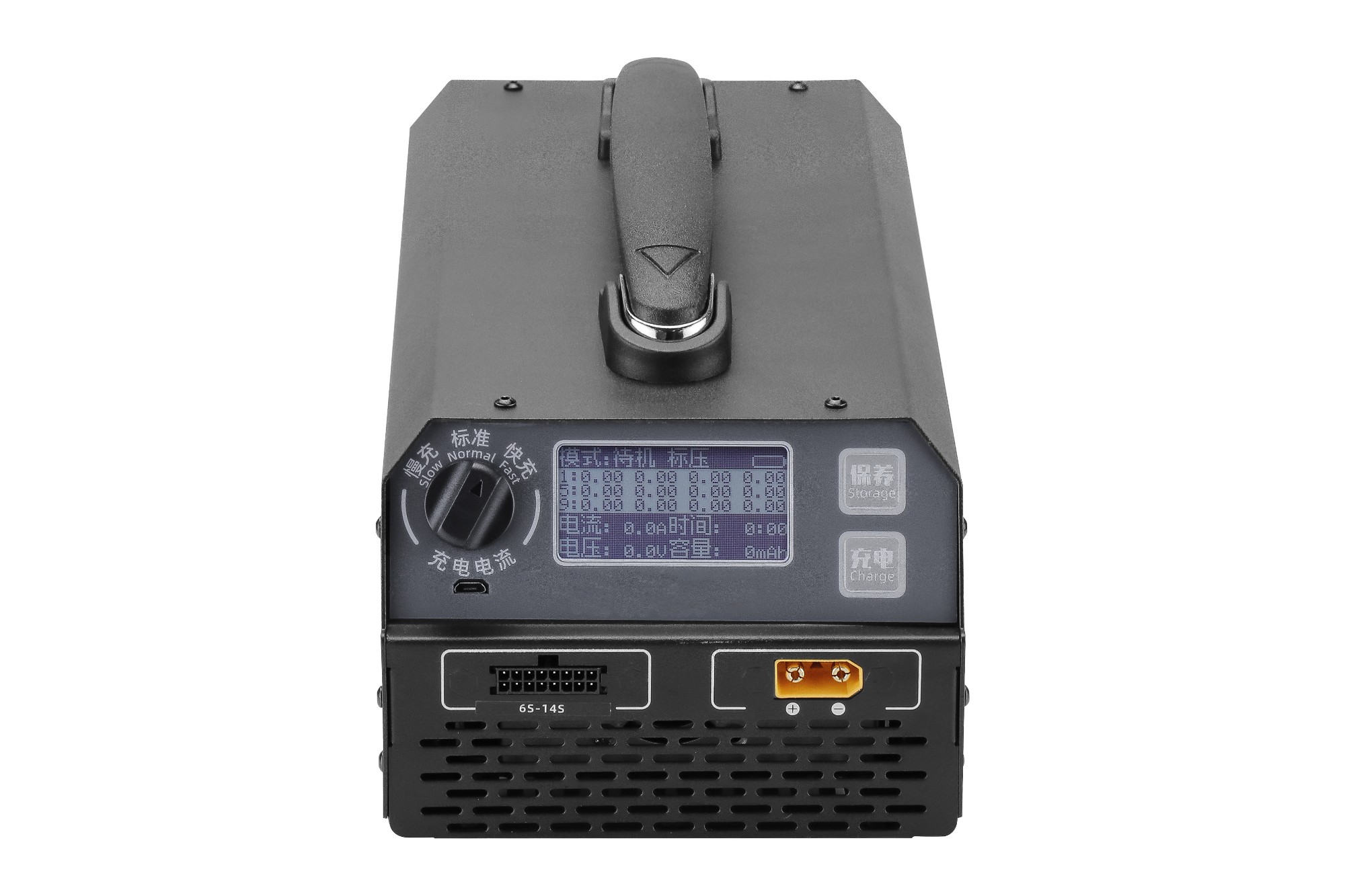

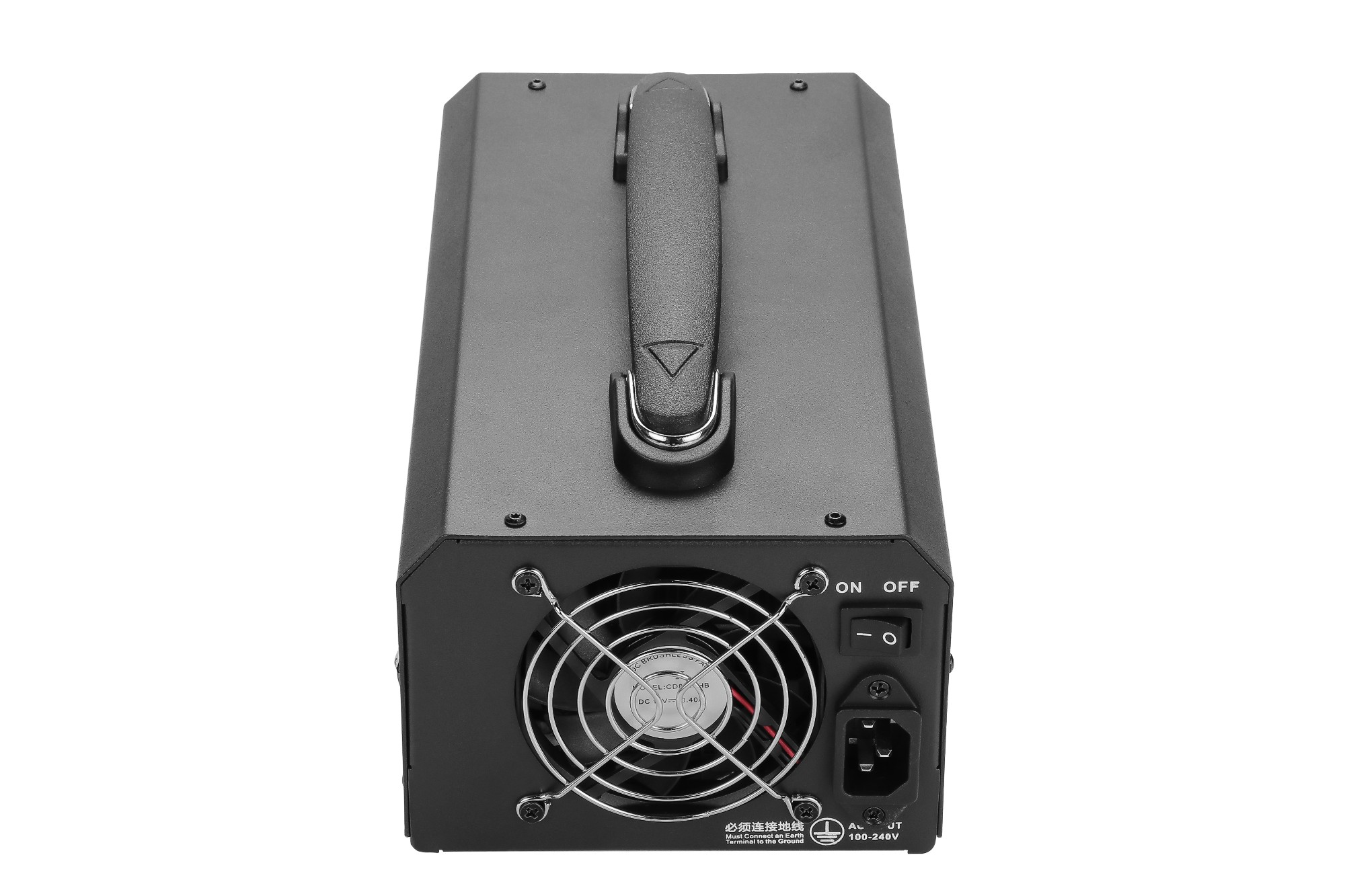

U1+ balanced charger, fast charging speed, high balance accuracy, low energy consumption. The charging current is 10A, 20A, 25A adjustable and easy to use; the display window during the charging process of the product can accurately display the single-cell voltage and total voltage of the battery in real time to facilitate understanding of battery performance and charging status. The internal temperature rise heat dissipation channel of the product is designed reasonably, which can effectively dissipate heat to ensure the continuous and stable operation of the product.
Product specification
Work pattern | Max. power | Input voltage | Battery voltage | Current |
Charging | 1200W |
| 60.9V | 25A |
Charging | 1200W | 3.85V/3.9V*14S | 25A | |
Discharge | 50W | 3.85V/3.9V*14S | 2A | |
Charging | 500W | AC:100~180V | 60.9V | 25A |
Charging | 500W | 3.85V/3.9V*14S | 25A | |
Discharge | 50W | 3.85V/3.9V*14S | 2A |
Output characteristic or charge stages | |||
No | Item | Technicalspecification | Remark |
1 | CC(constantcurrent) | 25A | 10A,20A,25A adjustable |
2 | CV(constantvoltage) | 60.9 V ↓ | Customizable |
3 | Floatstage | ⁄ | |
4 | BatteryType | LiPo/LIHV | Customizable |
5 | Batterycellcount | 6~14S | |
6 | Unitcellvoltage | 4.20 / 4.35V | Customizable |
7 | PrechargeTime | / | |
8 | DeltaPeak | / | |
9 | Temperature protection | 75℃ | |
10 | Safe time | CHG:360 Min , STOR:600 Min | Customizable |
11 | capacity limitation | 50Ah | Customizable |
Hightemperature | +40℃ | Thermalshock | -25℃ to75℃,3min |
Lowtemperature | 0℃ | Shellmaterial | Metal |
Hightemperature | +70℃ | Outlinedimension | 287×145×139mm |
Lowtemperature | -20℃ | Weight | 4KG |
