Overview

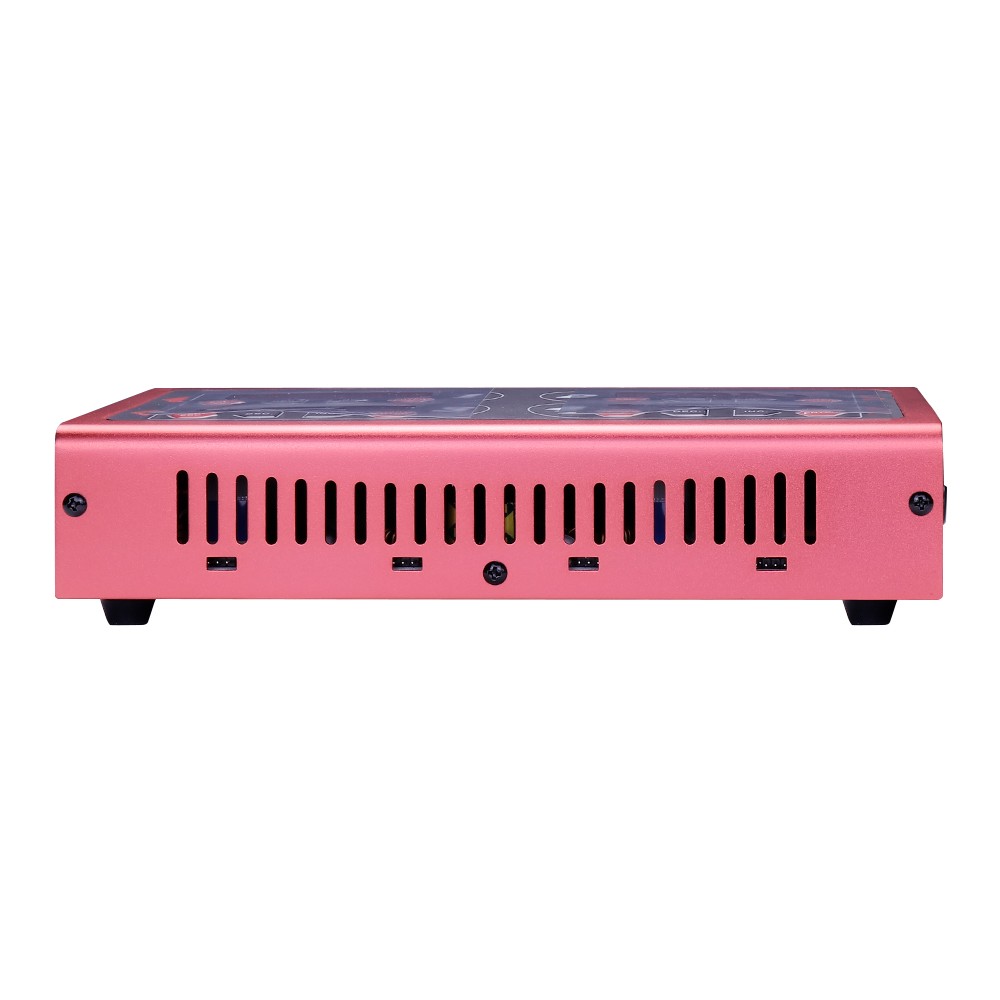

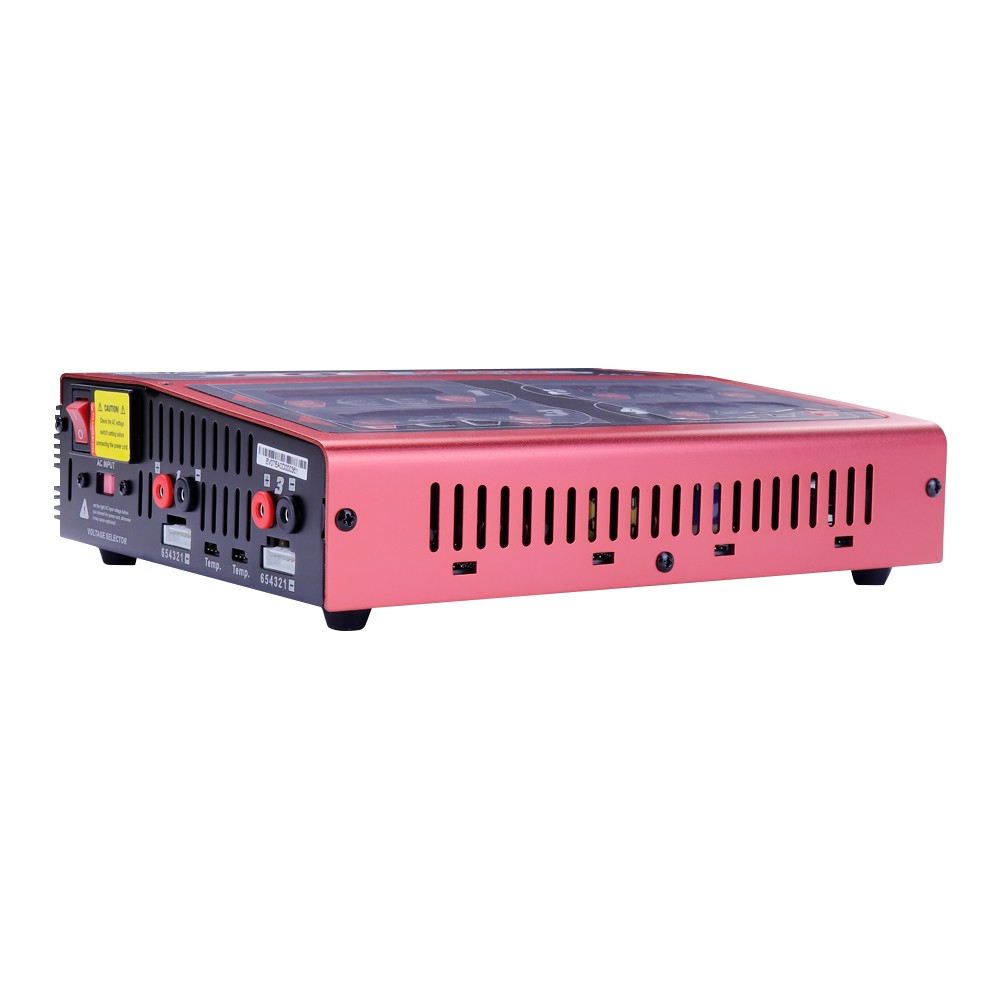

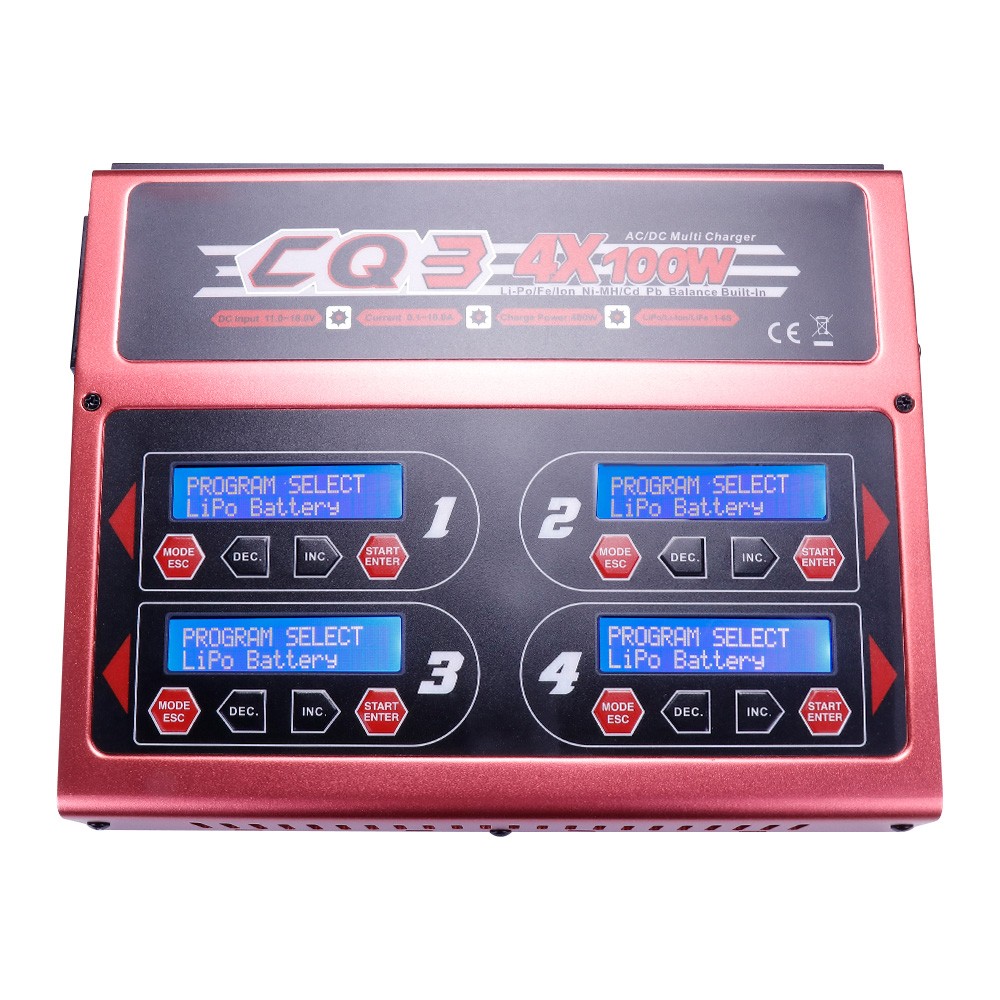

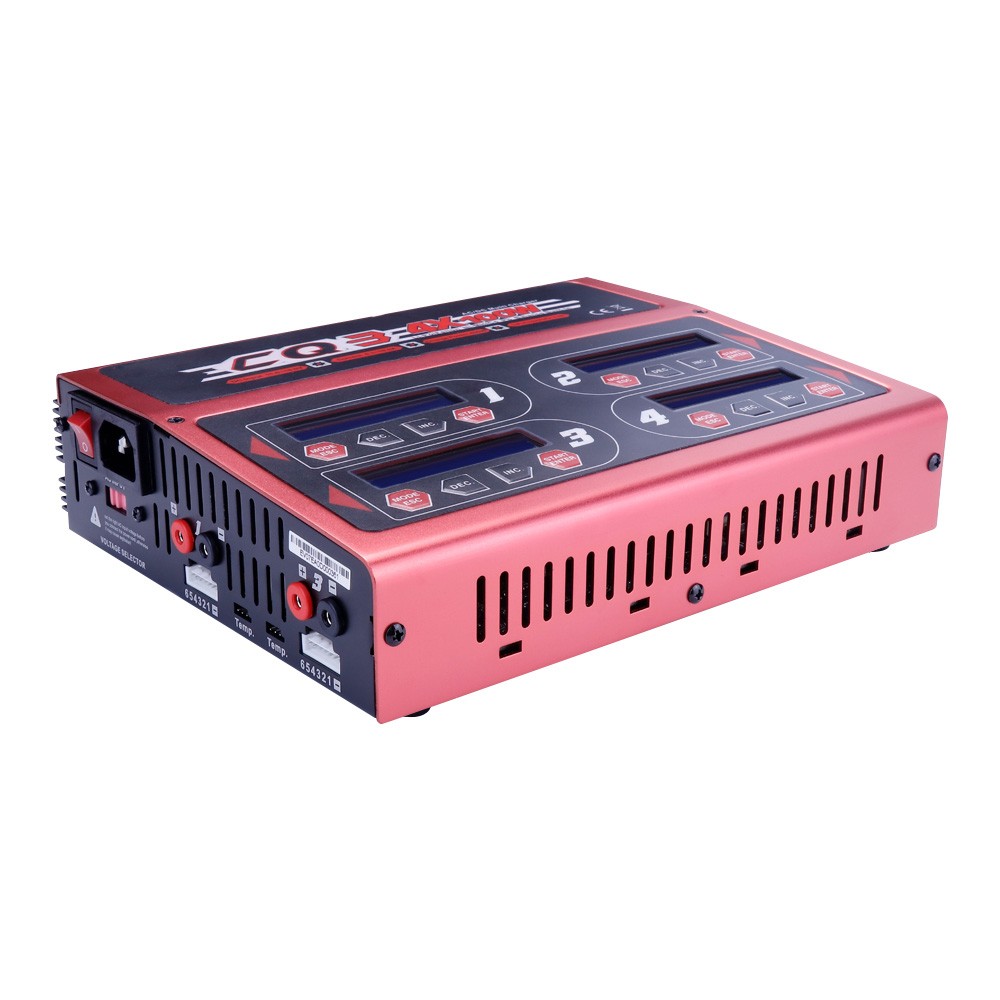

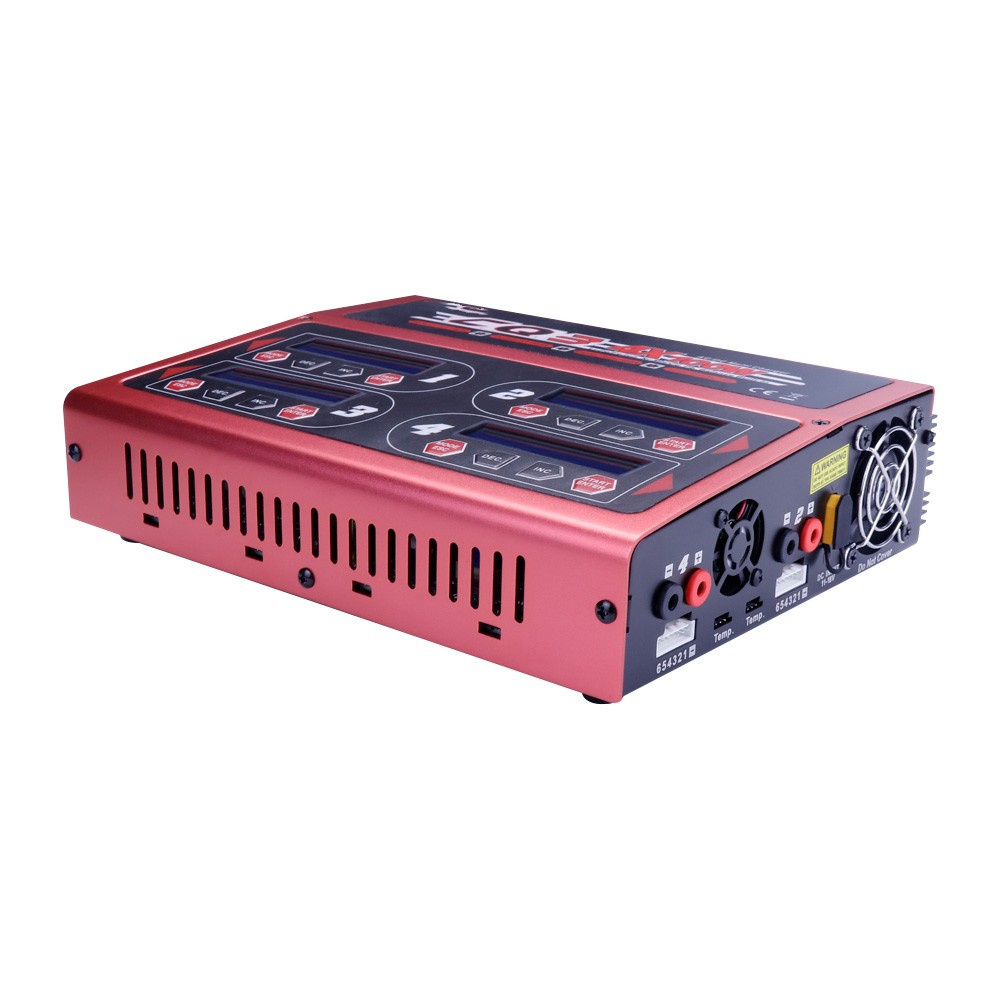

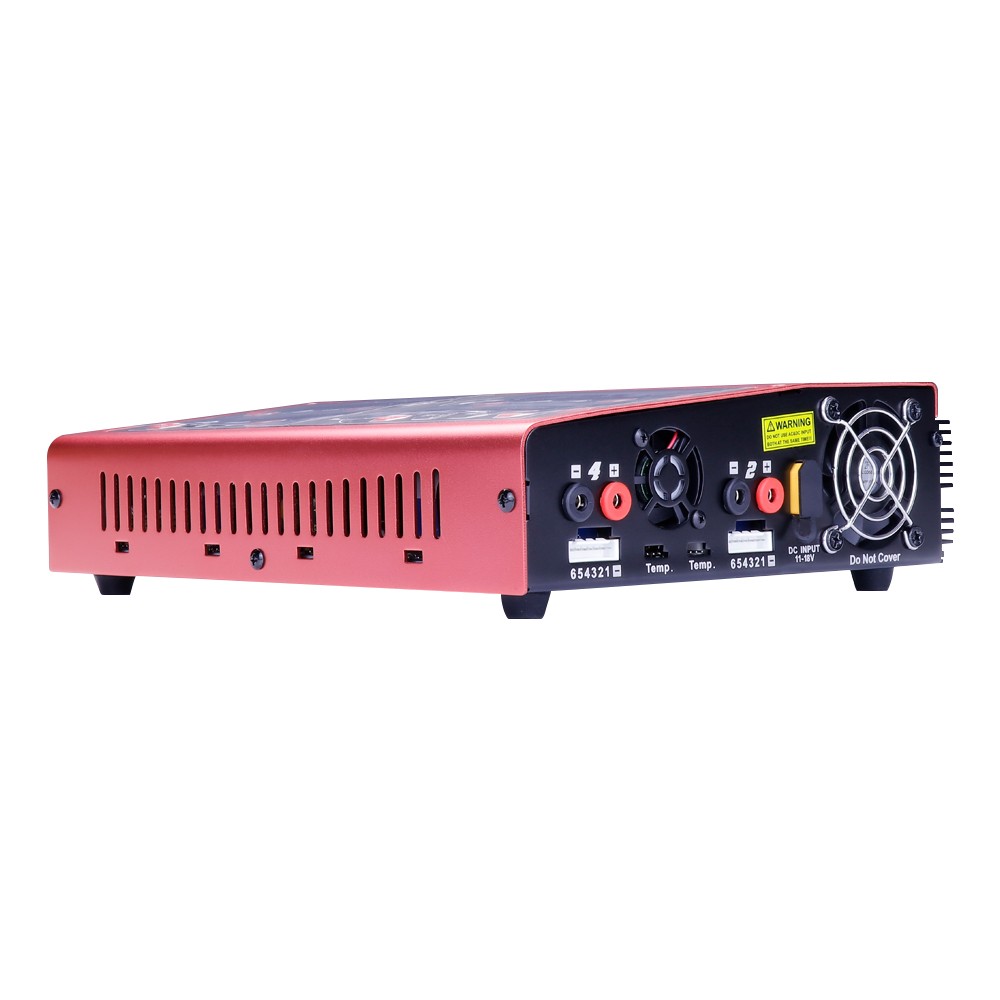

CQ3 High power balance charger, fast charging speed, high balance accuracy, low energy consumption, multiple battery types and number of battery options, simple operation, light and beautiful appearance. The product adopts a synchronous rectification low-loss and high-efficiency energy conversion design. In addition, the structural design is exquisite, and the heat dissipation channel design of the product is reasonable, which can effectively meet the heat aggregation and dissipation of high-power products and ensure the continuous, stable and reliable operation of the product.
Product specification
Work pattern | Max. power | Input voltage | Combined regulation | Current |
Charging | 100W*4 | AC:110V/220V | ±15mV | 10A |
Discharge | 10W*4 | ±15mV | 5A |
Hightemperature | +40℃ | Thermalshock | -25℃ to75℃,3min |
Lowtemperature | 0℃ | Shellmaterial | Metal |
Hightemperature | +70℃ | Outlinedimension | 220×240×68mm |
Lowtemperature | -20℃ | Weight | 1750g |
Output characteristic or charge stages | |||
No | Item | Technicalspecification | Remark |
1 | CC(constantcurrent) | 0.1~10A | |
2 | CV(constantvoltage) | 50.4V↓ | |
3 | Floatstage | ⁄ | |
4 | BatteryType | LiPo/LiIon/LiFe/LiHv/NiMh/NiCd/PB | |
5 | Batterycellcount | LIXX:1 ~ 6 S | |
6 | Unitcellvoltage | LiPo:4.30V,LiFe:3.60v,LiHV:4.35v | |
7 | PrechargeTime | 0-10Min | Adjustable |
8 | DeltaPeak | 5~20mV | Adjustable |
9 | Temperature protection | 80℃ | |
10 | Safe time | 1~720Min/OFF | |
11 | capacity limitation | 0.1~99.9Ah/OFF | |
12 | DCinputvoltagelimit | 11~18V | |
