Overview

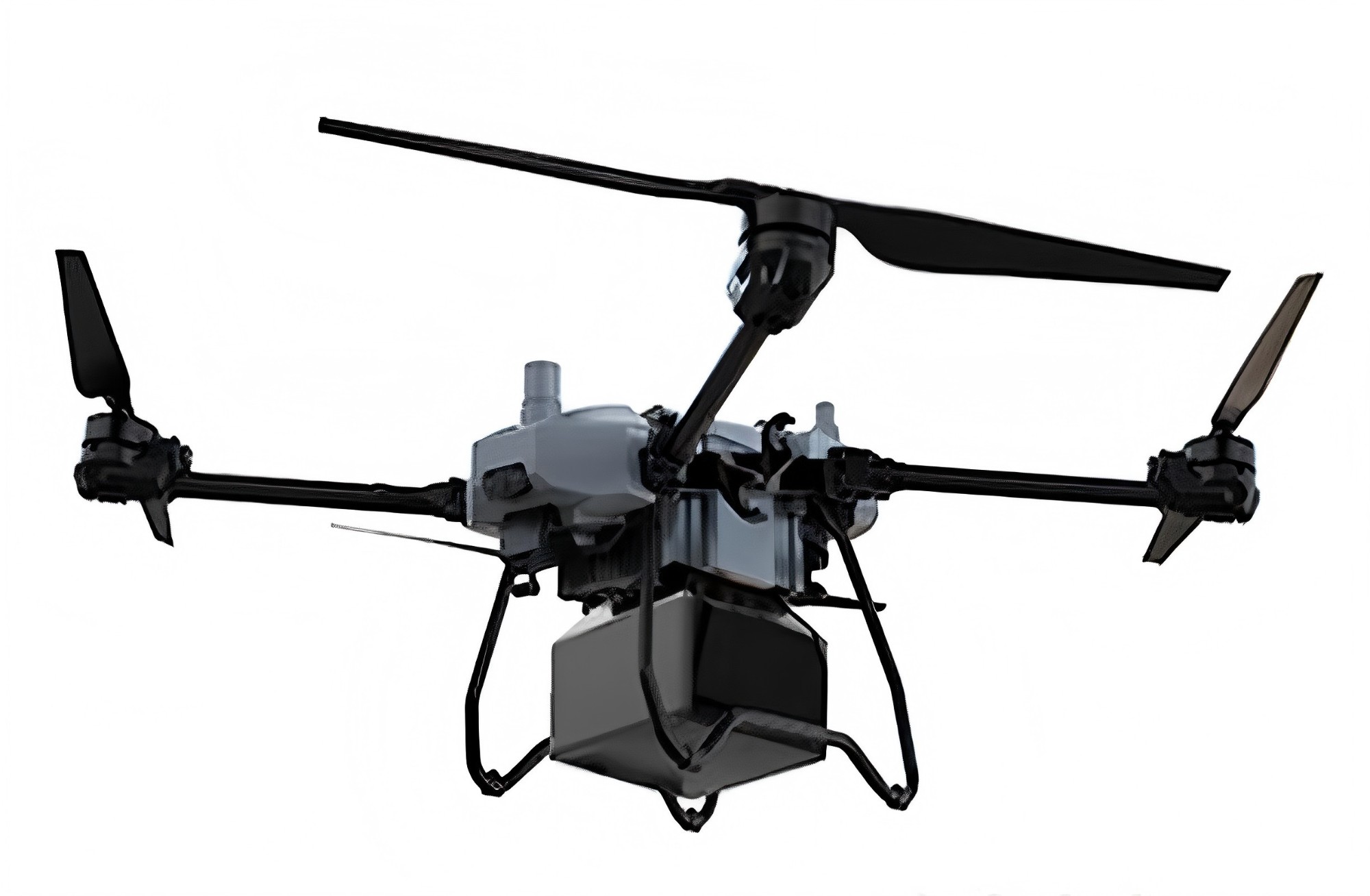

This high-strength composite carbon fiber UAV is engineered for demanding industrial applications.Supports a maximum take-off weight of 112kg, with a rated payload of 50kg and a maximum load capacity of 60kg,equipped with an 18S 46000mAh high-voltage battery. Offers up to 30 minutes of no-load flight and covers a maximum distance of 30km (dual-power version, no-load), ensuring efficient mission execution.
Detailed technical parameters
Body material | High strength composite carbon | Body wheelbase size | 2200mm |
Collapse size; (pack) | 1115 x760x1027mm | Weight of the whole machine | 28.5kg (no battery included) |
Maximum take-off weight | 112kg | Payload capacity | 60kg (maximum load) |
Battery life on a full charge; 20kg battery life; | 30 minutes (no load) | Maximum flight distance of dual power version | 30km (no-load) 18 km (40kg load) |
Battery voltage capacity | 18S 46000mha (high pressure) | Flight control avionics system | Industrial-grade dual IMU inertial navigation system with AI control algorithm |
Flight hover accuracy | GNSS single-point positioning 0. | Multimodal satellite positioning system | GPS/BeiDou/GLON ASSS\Galieo |
Maximum speed | 16m/s | Maximum data transfer dis | 30km |
Multi-purpose function | Container handling | Set the autopilot path; | APP Route Planning |
Maximum flight altitude and maximum wind resistance; | 6000 meters (non-relative height) | Operating ambient temperature | -20 to 55 degrees |
Machine protection rating | IP56 | Obstacle avoidance method; | Electronic fence + human vision |
