Product Overview

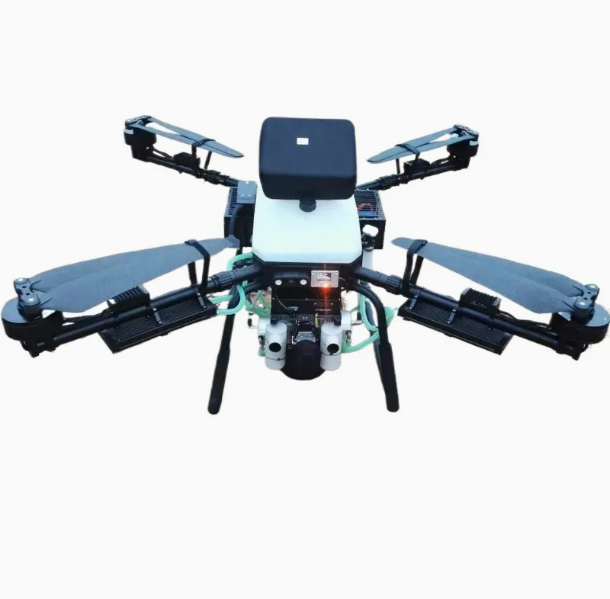

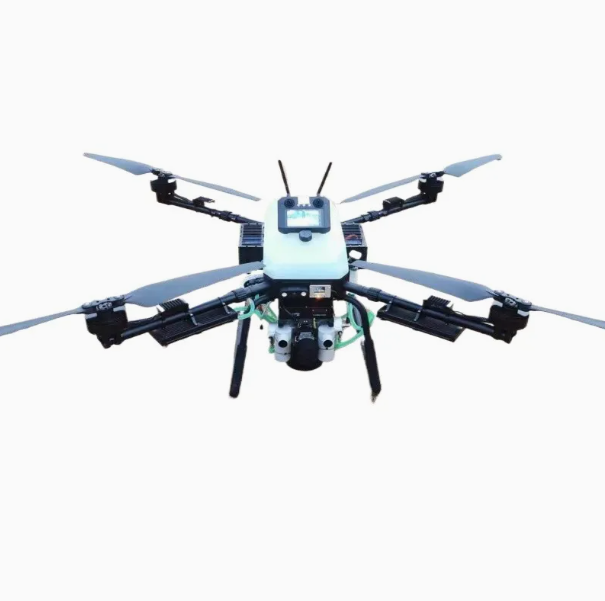

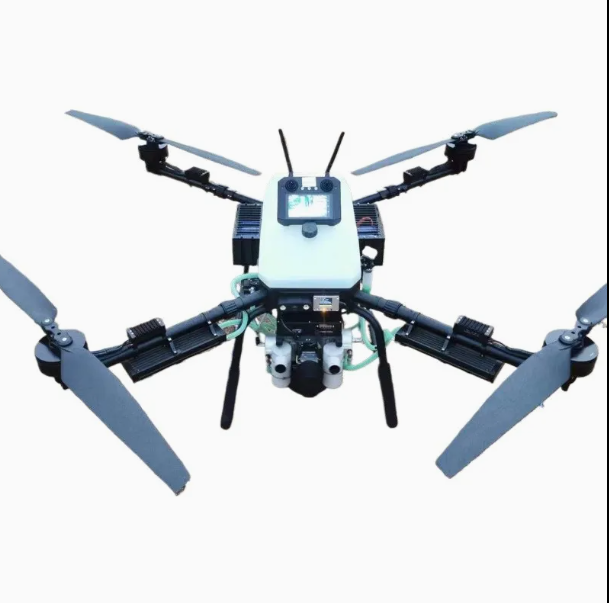

This high-performance Unmanned Aerial Vehicle (UAV) is engineered for demanding commercial and industrial missions. Offers an industry-leading empty flight time of up to 300 minutes (5 hours). With a 10-12kg payload, it maintains an operational endurance of over 2.5 hours.Supports a maximum take-off weight of 78kg with a substantial 25kg maximum payload capacity. The powerful 7000W engine ensures reliable performance for heavy-lift applications.
| Body material | High-strength carbonfiber + 7075 aviationaluminum | Body wheelbase size | 1580mm |
| Recycled folded size | 480mm*380mm*520mm | Curb weight; (including engine) | 35kg |
| Maximum take-off weight | 78kg | Maximum payload | 25kg (30 minutes of battery lfe) |
| Economic operating load | 12kg | Empty flight time | ≥300 minutes(5h) |
10-12kg loadendurance 1-2kgcamera load | ≥2.5h ≥4.5h | Total output powrer of the engine | 7000w(maintenance time ≥300h) |
| Standard load aerage fuelconsumption | 8l/h (gasoline) | Flight control system | Double backup for more redundant systems |
| Flight hover accuracy | ≤0.1m | Wind resistance level | ≥level 6,instantaneous level 8 |
| Maximum flight speed | 16m/s | Flying altitude | ≤3000m (too high analtitude will reduce engineoxygen intake, resulting inreduced power output.) |
| Ascent/descent rate | 3-5m/s | Remote control distanoe (as shownin the dia gram) | 15000m(default distance) |
| Flight mode | Manual'gps/autonomous flight | Flight status information display | App smart ground station |
