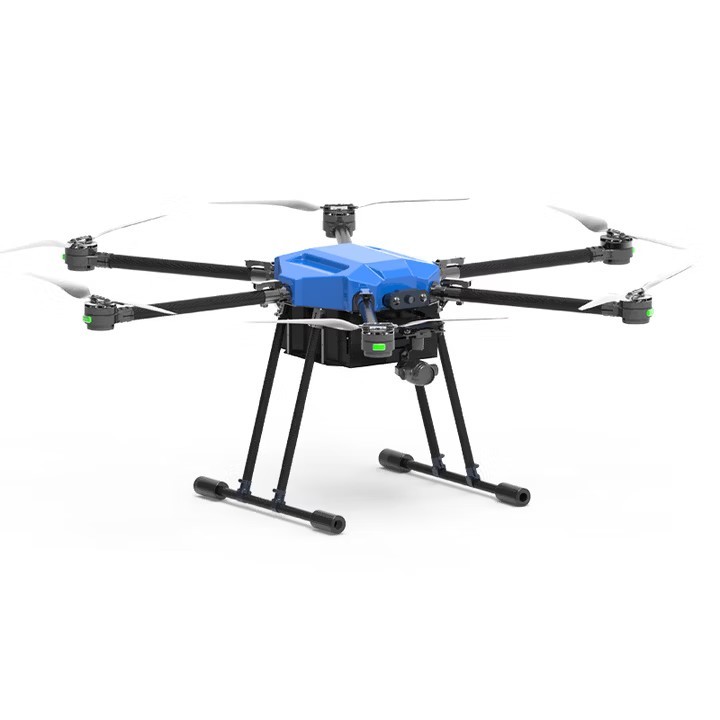

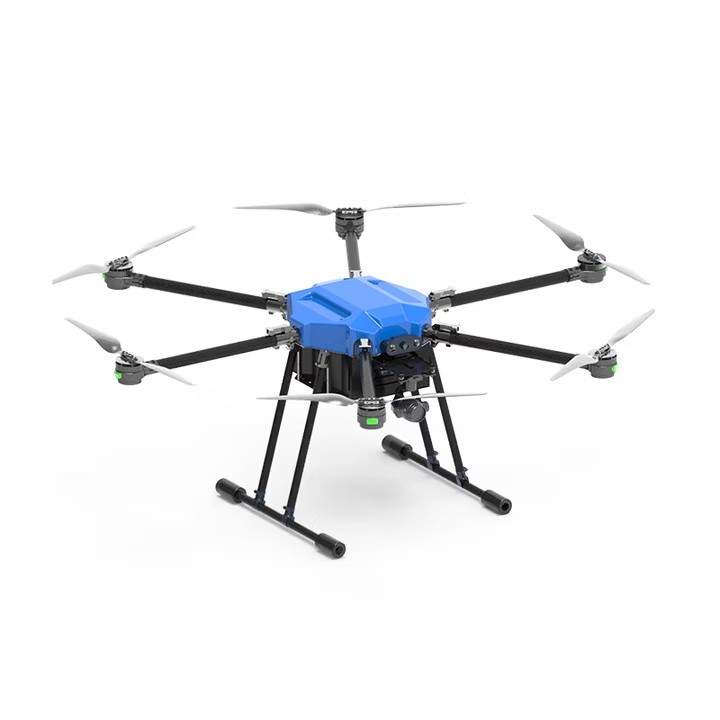

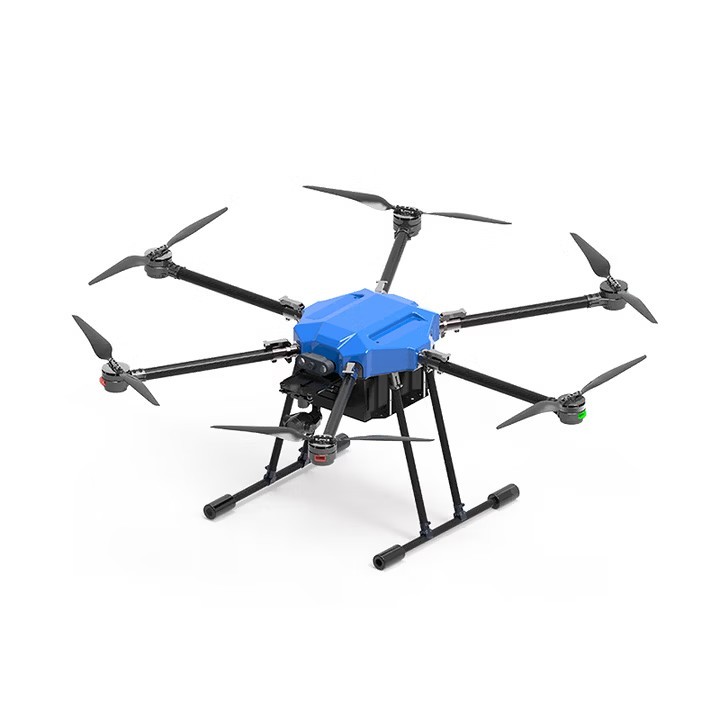

Yh-C57 F1200 Six Rotor Multi-Purpose Emergency Inspection Uav Vehicle Rescue Transport Equipment

Body size

1300mmx1300mmx750mm

Maximum control distance

10km(open and unobstructed,no electromagnetic interference)

folded size

500mmx500mmx750mm

maximum climb height

1000m

Wheelbase

1300mm

Hover accuracy

Vertical:±0.5m(GPS positioning accuracy)
Horizontal:±1m(GPS positioning is normal)

Material

Aviation aluminum alloy,carbonfiber

Satellite positioning module

GPS/GLONASS/BDS/Galileo

Empty weight

8kg(excluding batteries)

pod camera

High-definition 4K image quality/10-30mm zoom

Maximum load

10kg

Power system

FOC brushless power system

maximum ascent speed

5m/s

working temperature

-20°C-50°C

maximum descent speed

5m/s

Waterproof level

Body wash water

maximum horizontal flight speed

20m/s

battery capacity

30000mah

Maximum withstand wind speed

12m/s

maximum flight altitude

5000m

maximum flight speed

20m/s

flight time

30-70min

Working frequency

2.4GHz&5.8GHz dual-band

Battery life

20hours

Maincontrol chip

ThePaperS1

display screen

7-inch screen. 1920*1200 resolution

operating system

Android

maximum brightness

2000cd/m2

Signal effective distance

Approximately 10kilometers (open and unobstructed,no electricity magnetic interference

Memory card type

Supports up to128GB microSD card

Video output interface

HDMI/WLAN

Integrated operation page

Flight parameter integration The user interface can be freely switched between images and maps

Built-in battery

7.4V 20000mAh LiPo 2s

Voice broadcast

Features adjustable real-time voice broadcast
