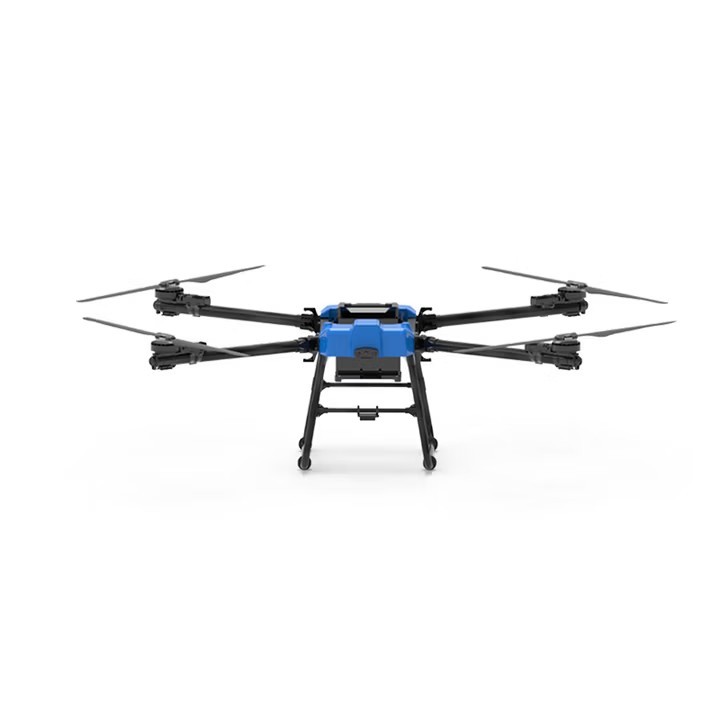

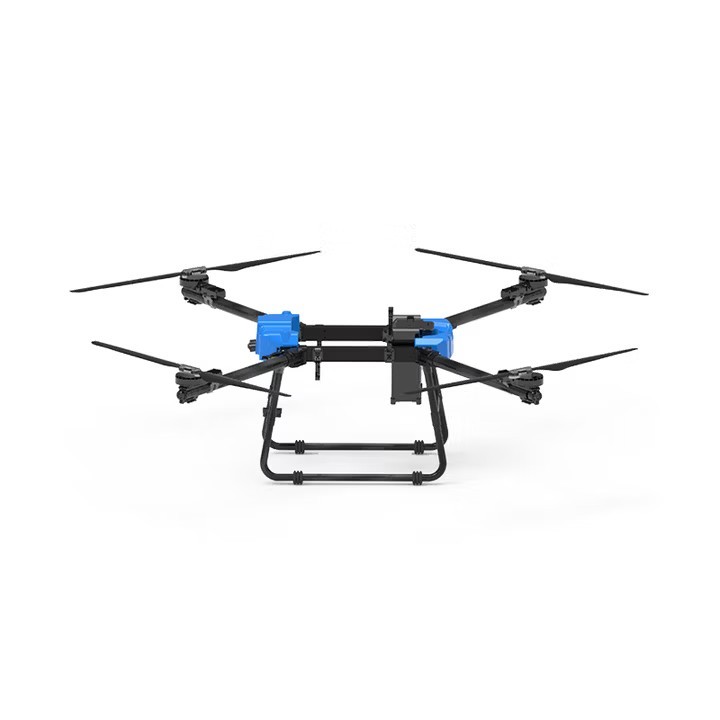

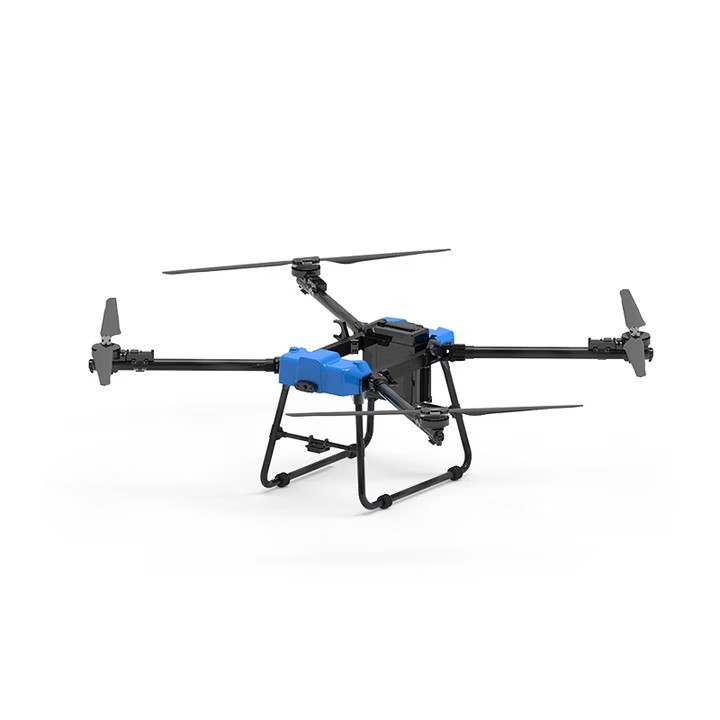

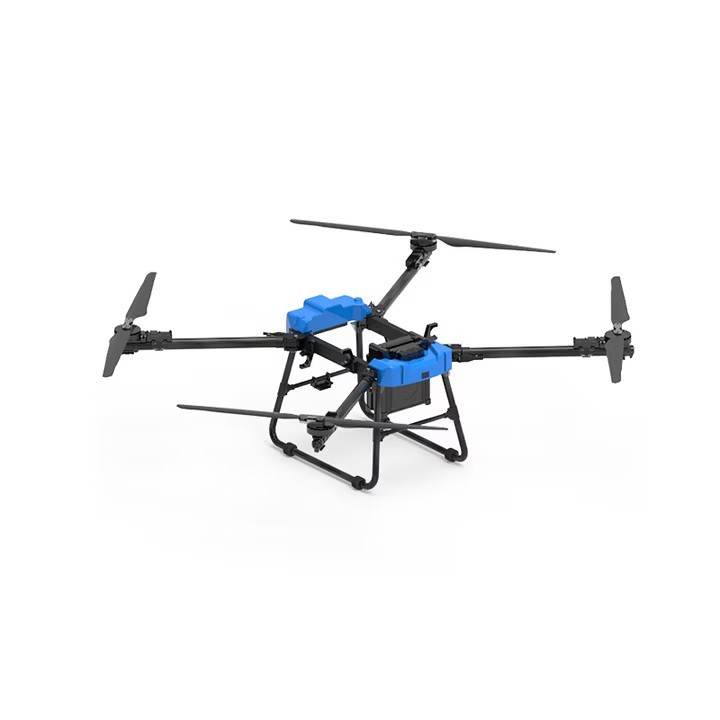

Yh-C56 D2000 a 30kg Payload Multi-Function Quadrotor Drone

Body size

2000mmx2000mmx800mm

Maximum control distance

10km(open and unobstructed,no electromagnetic interference)

folded size

800mmx800mmx800mm

maximum climb height

1000m

Wheelbase

1800mm

Hover accuracy

Vertical:±O.5m(GPSpositioningaccuracy)
Horizontal:±1m(GPSpositioningisnormal)

Material

Aviation aluminum alloy,carbonfiber

Satellite positioning module

GPS/GLONASS/BDS/Galileo

Empty weight

35kg(excluding batteries)

pod camera

High-definition 4K image quality/10-30mm zoom

Maximum load

30kg

Power system

FOC brushless power system

maximum ascent speed

5m/s

working temperature

-20°C-50°C

maximum descent speed

5m/s

Waterproof level

Body wash water

maximum horizontal flight speed

20m/s

battery capacity

40000mah

Maximum withstand wind speed

12m/s

maximum flight altitude

5000m

maximum flight speed

20m/s

No-load flight time

60min

Working frequency

2.4GHz&5.8GHz dual-band

Battery life

20hours

Maincontrol chip

ThePaperS1

display screen

7-inch screen. 1920*1200 resolution

operating system

Android

maximum brightness

2000cd/m2

Signal effective distance

Approximately 10kilometers (open and unobstructed,no electricity magnetic interference

Memory card type

Supports up to128GB microSD card

Video output interface

HDMI/WLAN

Integrated operation page

Flight parameter integration The user interface can be freely switched between images and maps

Built-in battery

7.4V 20000mAh LiPo 2s

Voice broadcast

Features adjustable real-time voice broadcast
