Overview

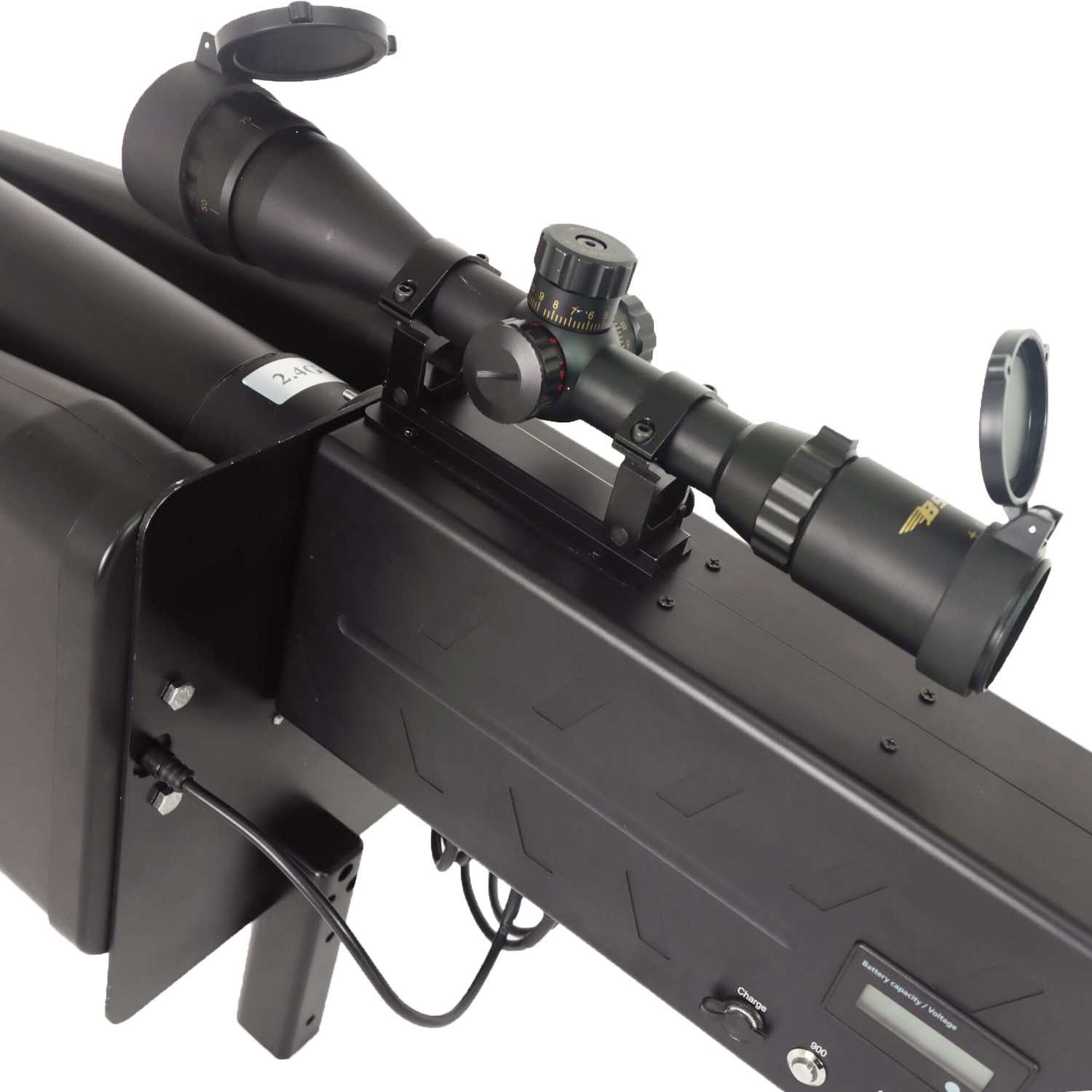

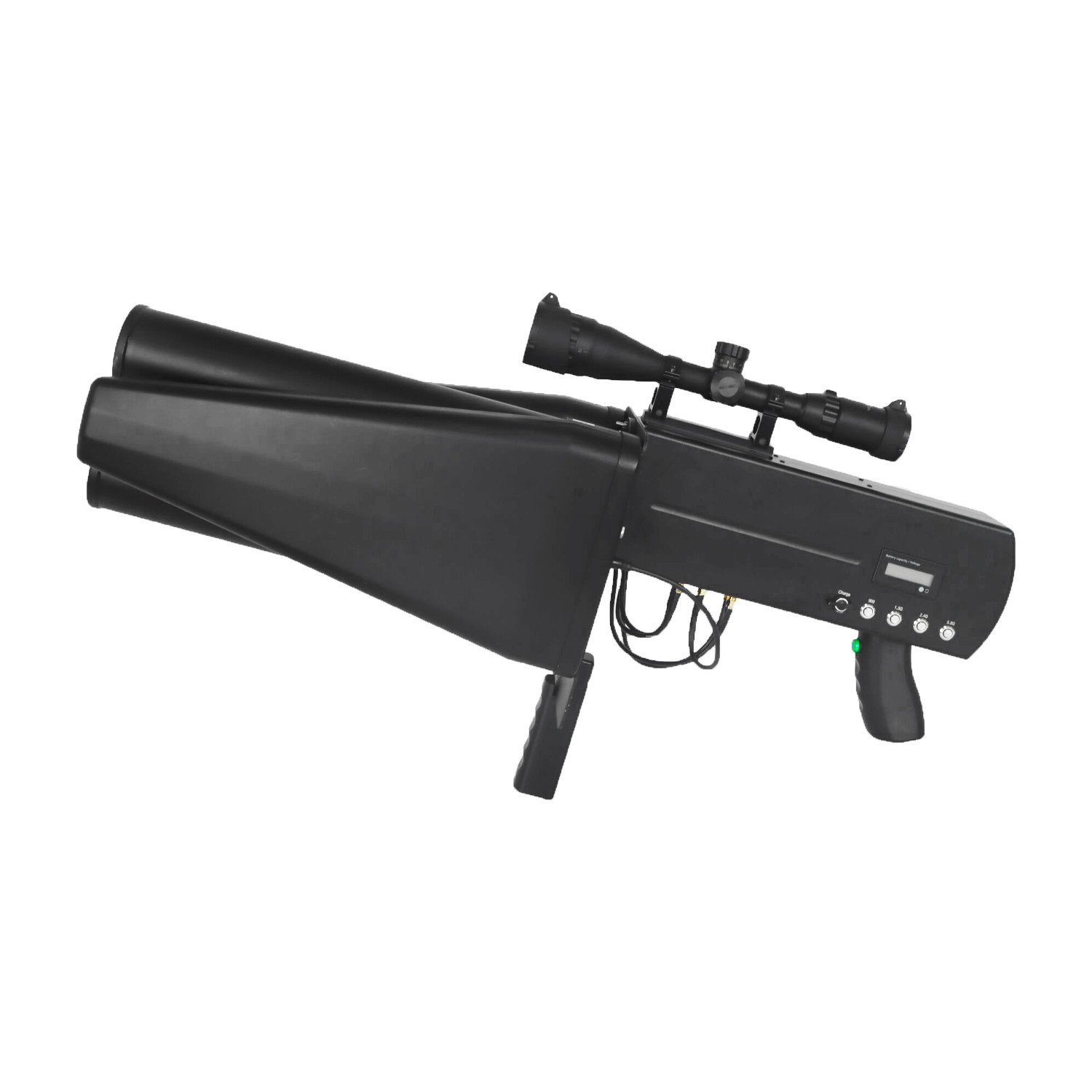

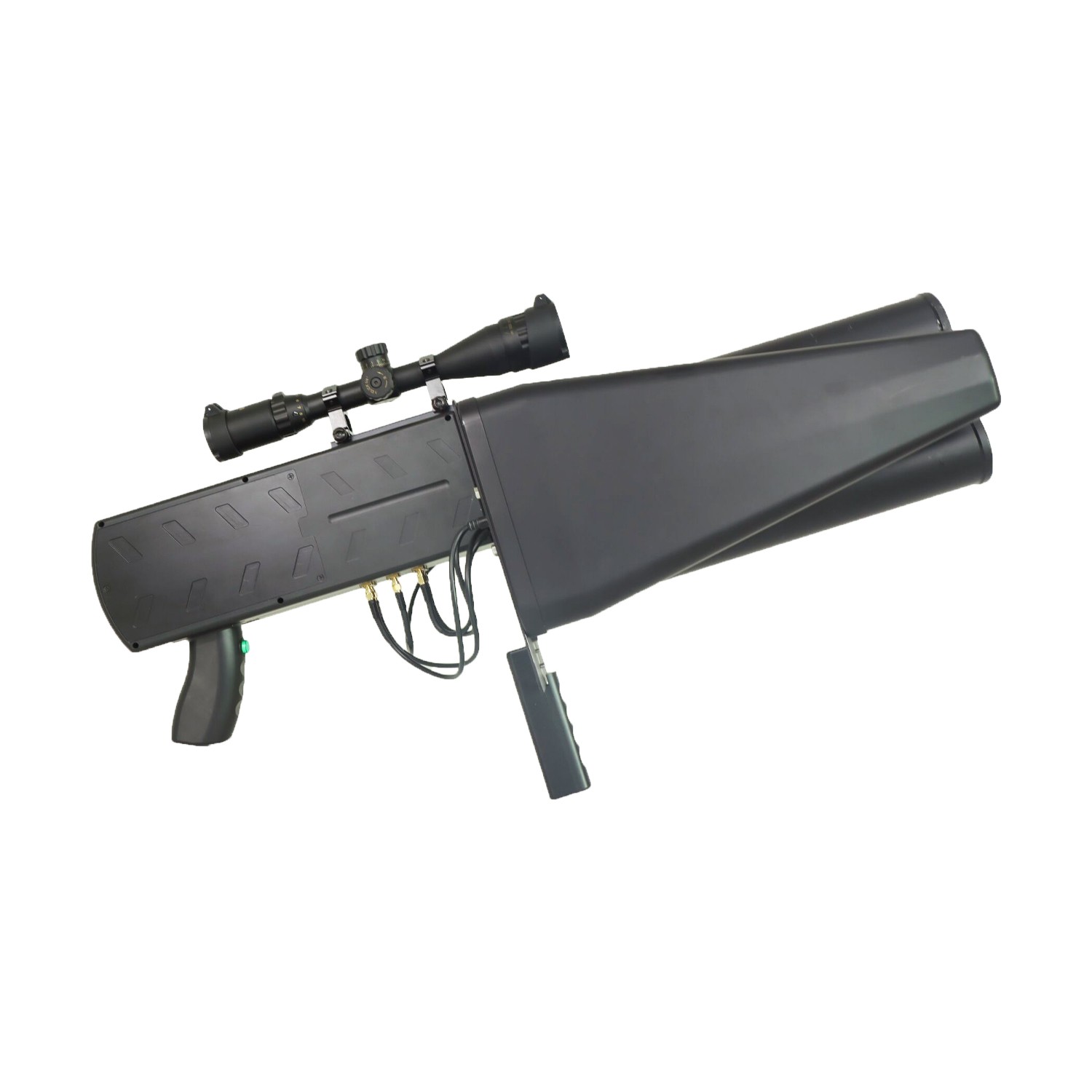

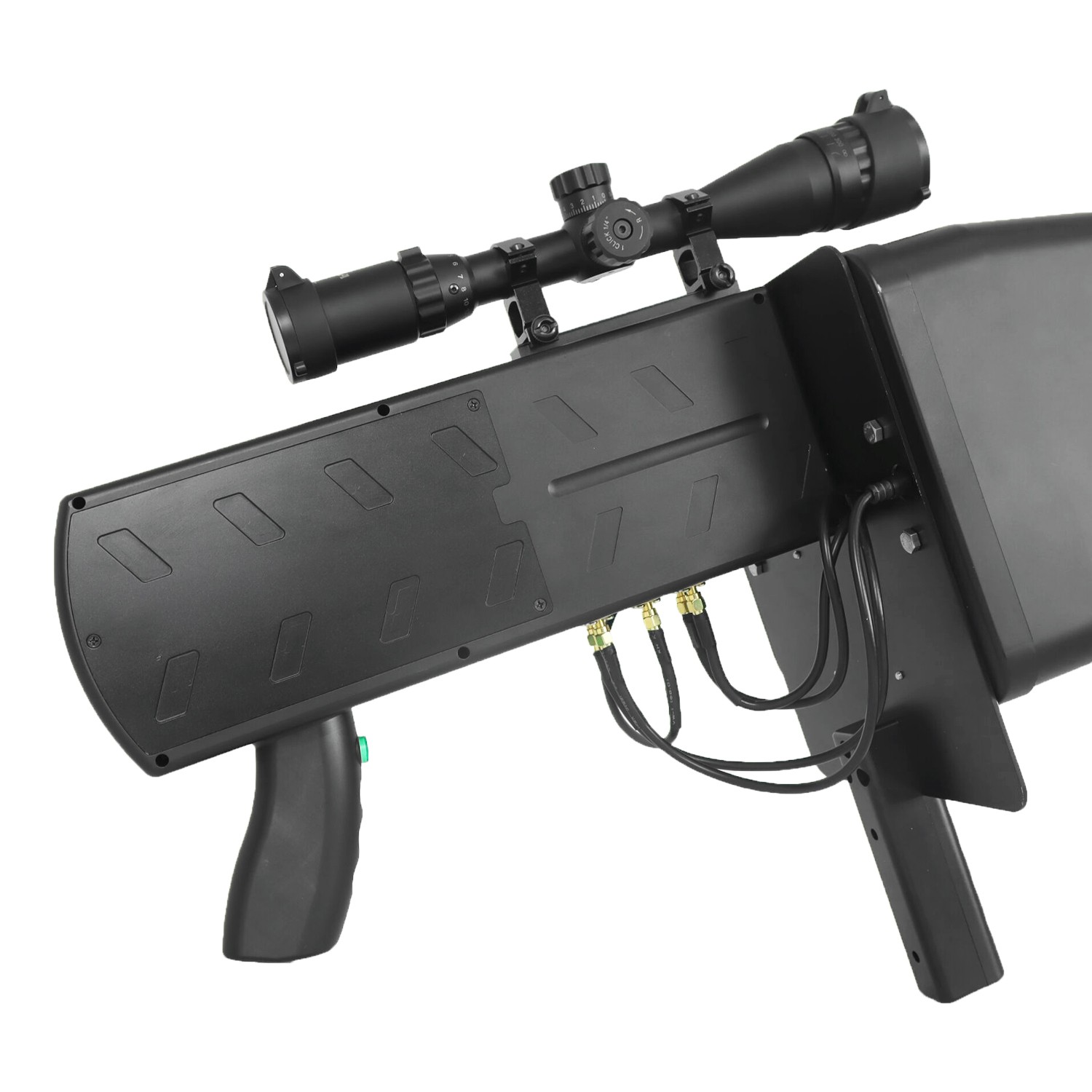

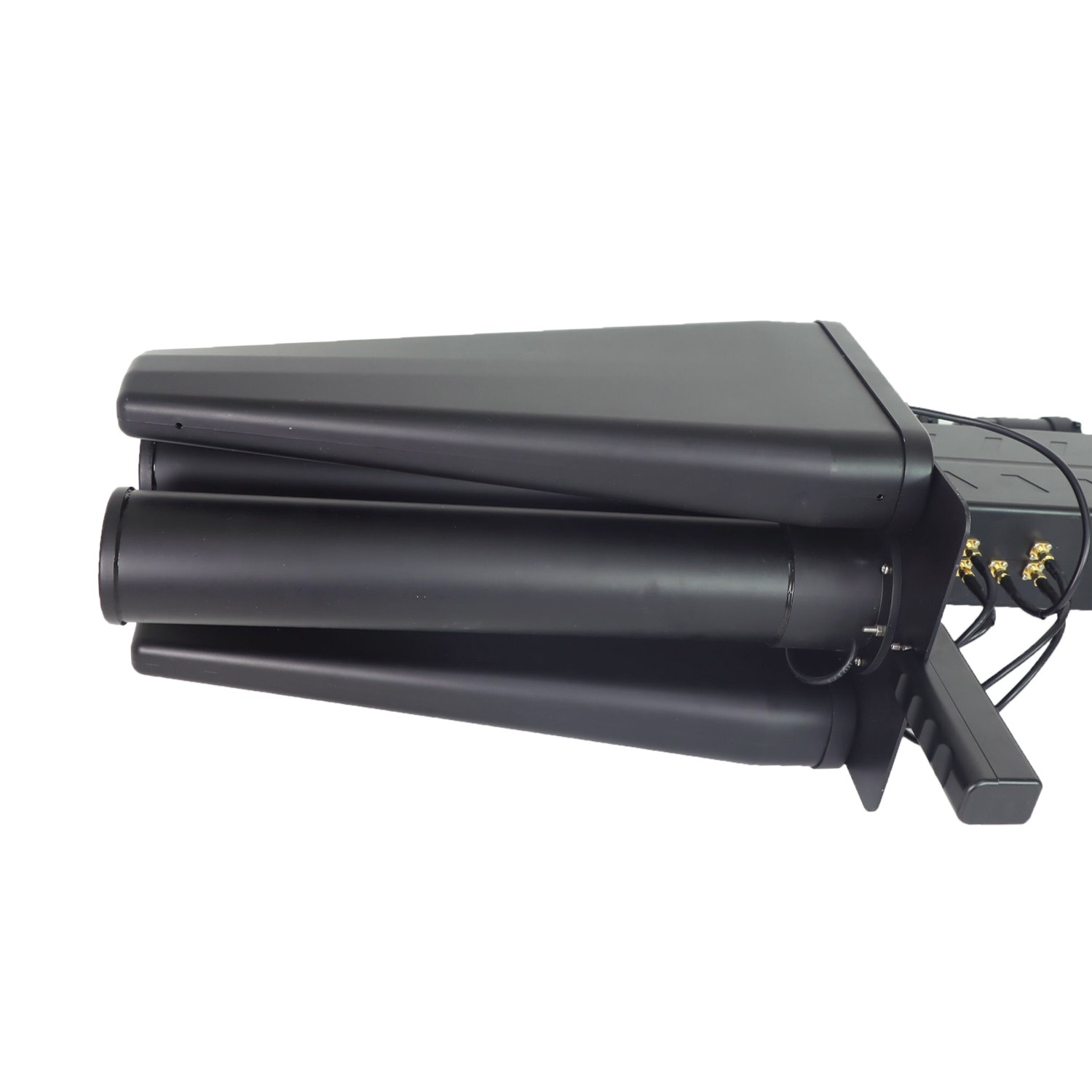

This product is a high-performance drone jamming system featuring a split modular design for easy assembly, disassembly, and portability. Equipped with a replaceable battery offering 40-60 minutes of operation and an inner cooling fan for continuous working capability. With a 15dBi high-gain antenna, it delivers a strong jamming range of 1500-2000 meters, effectively countering various drone threats. Integrated 16x telescope and anti-vibration ensure stable and accurate targeting. An LED screen displays real-time battery capacity and voltage for user-friendly operation.
Technical Specification
Channel | Working Frequency | Output power(±1.5dBm) | |
CH1 | 2.4G | 2400-2500MHz | 46dBm(40W) |
CH2 | 1.4G | 1350-1530MHz | 40dBm(10W) |
CH3 | 5.8G | 5725-5850MHz | 44dBm(40W) |
CH4 | 5.2G | 5150-5250MHz | 44dBm(30W) |
CH5 | 900MHz | 860-930MHz | 41dBm(30W) |
CH6 | GPSL1 | 1560-1620MHz | 46dBm(30W) |
CH7 | GPSL2 | 1170-1280MHz | 40dBm(10W) |
CH8 | 433MHz | 400-470MHz | 40dBm(10W) |
Power supply mode | Inner Battery:24V 10AH Or spare battery | ||
Battery working time | 40-60 minutes | ||
Working temperature | -20ºC to +55ºC | ||
Total Output Power | 200W | ||
Weight | 7.3KG, Package Weight: 22KG | ||
Size | 830X370X240mm | ||
Directional Antenna | 15dBi Gain | ||
