Overview

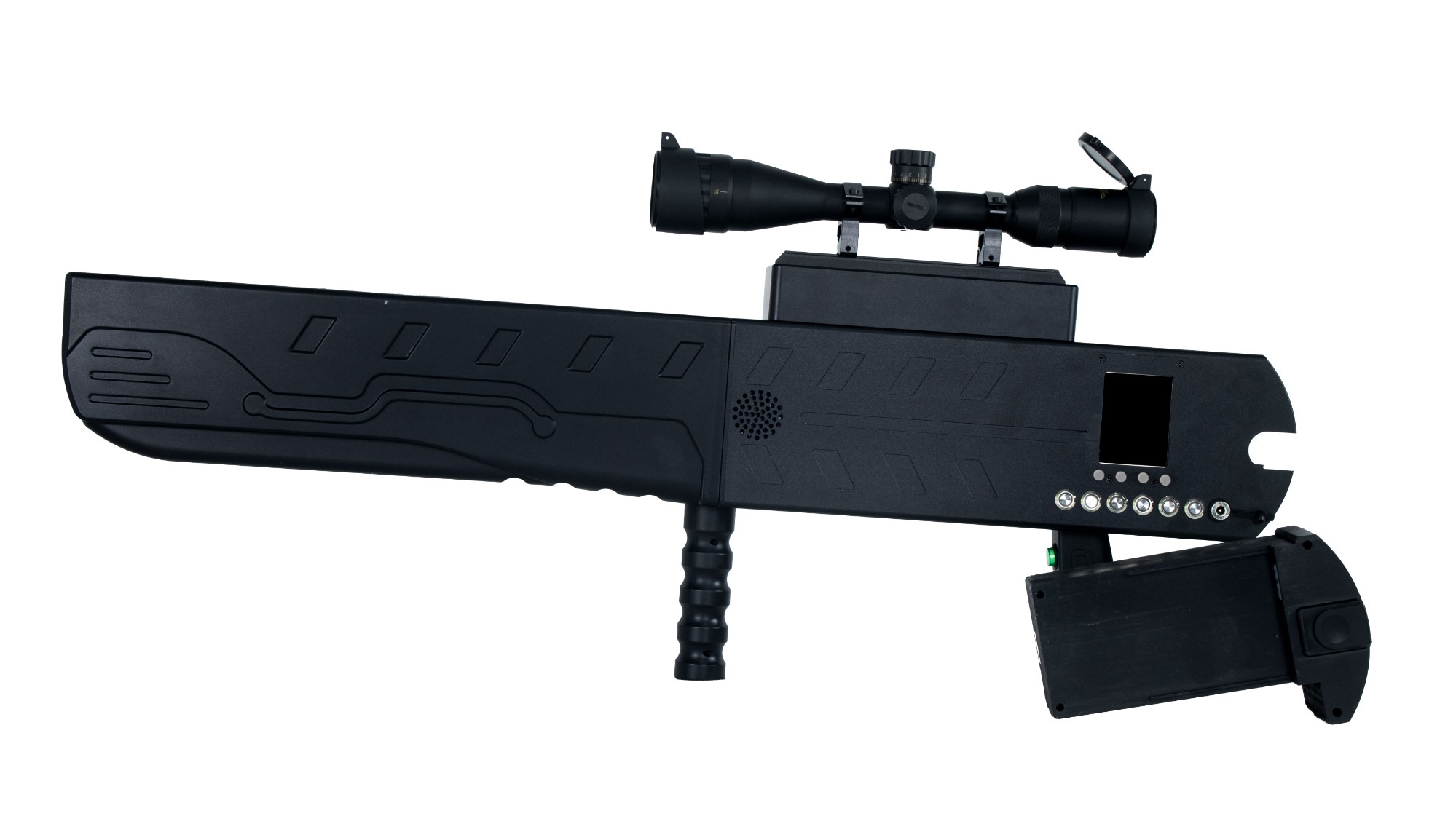

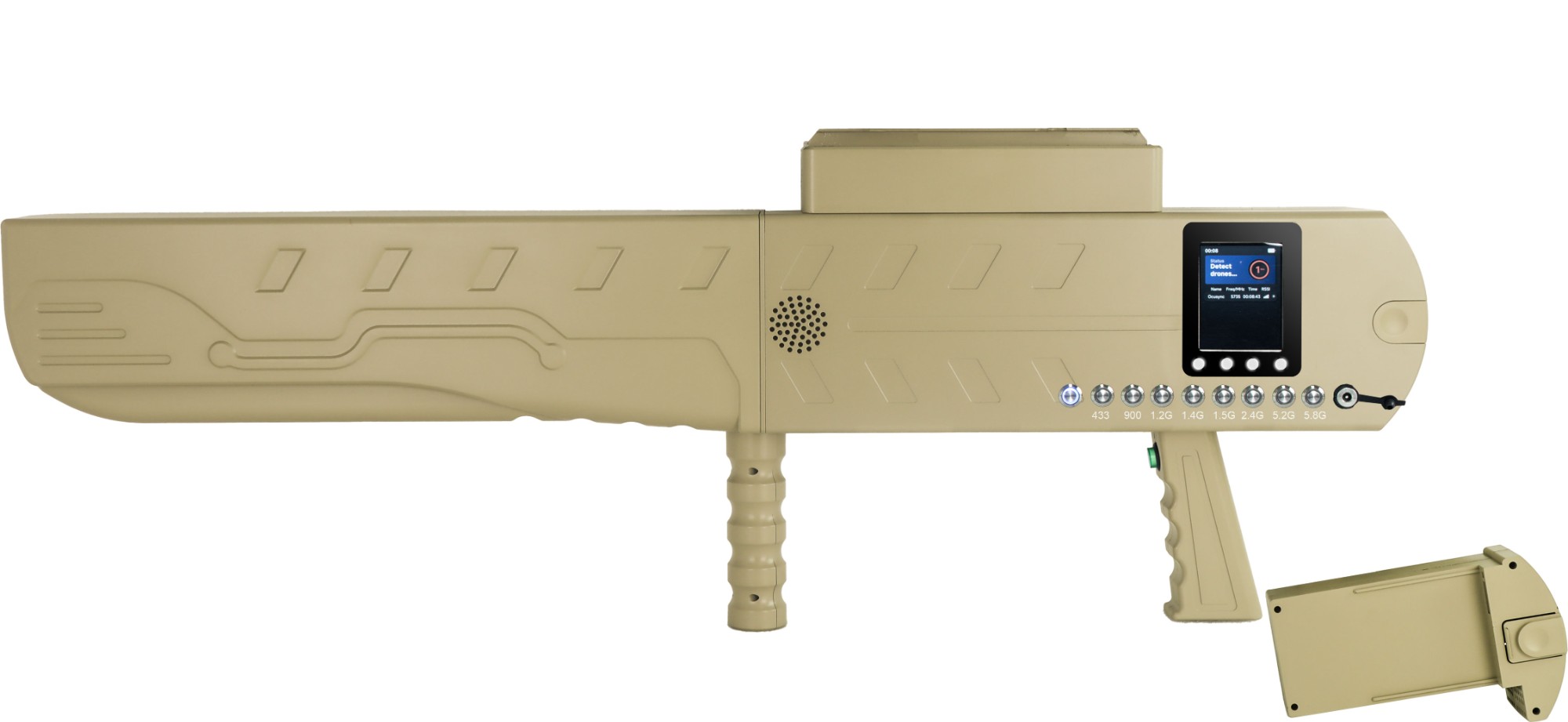

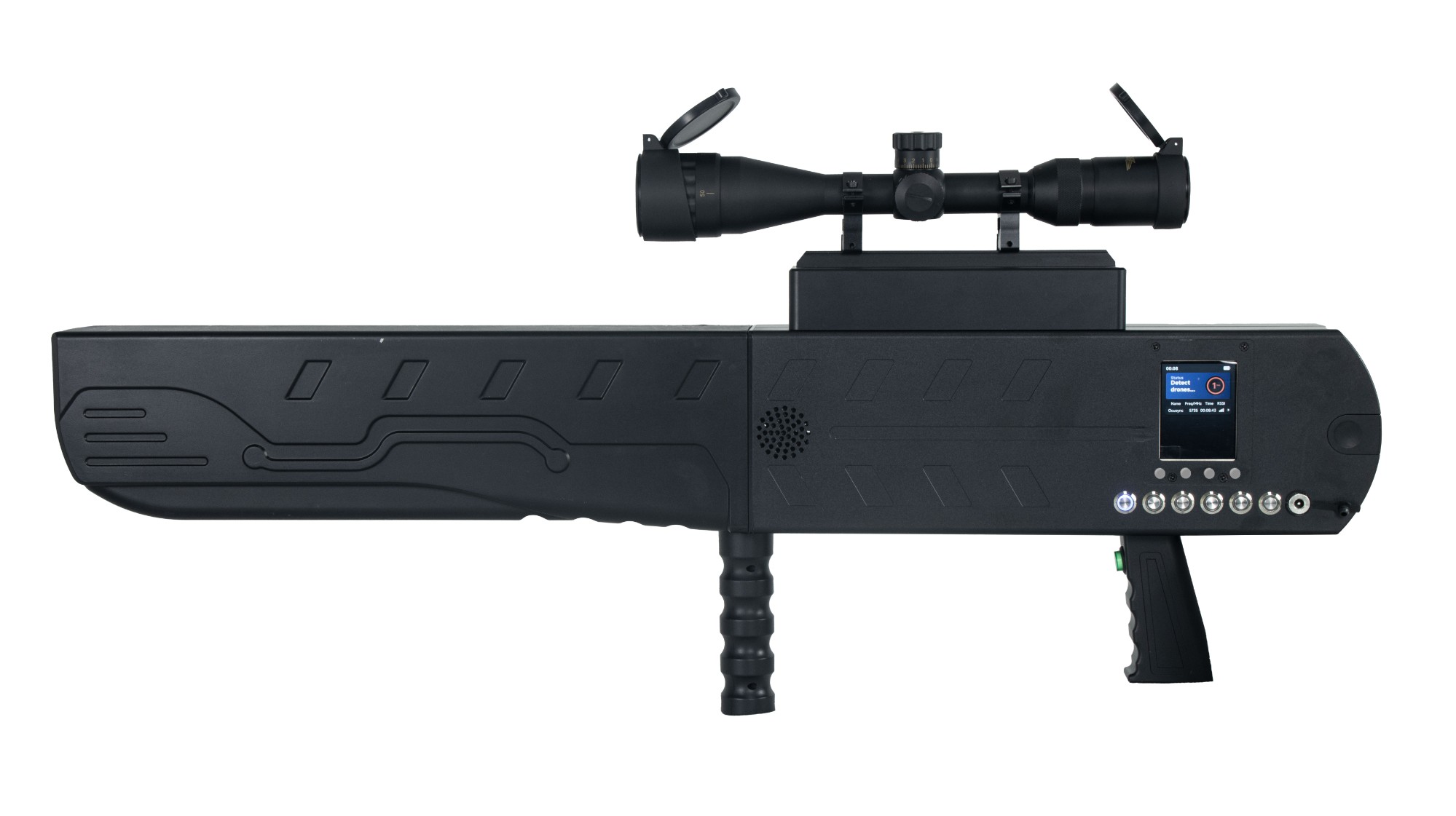

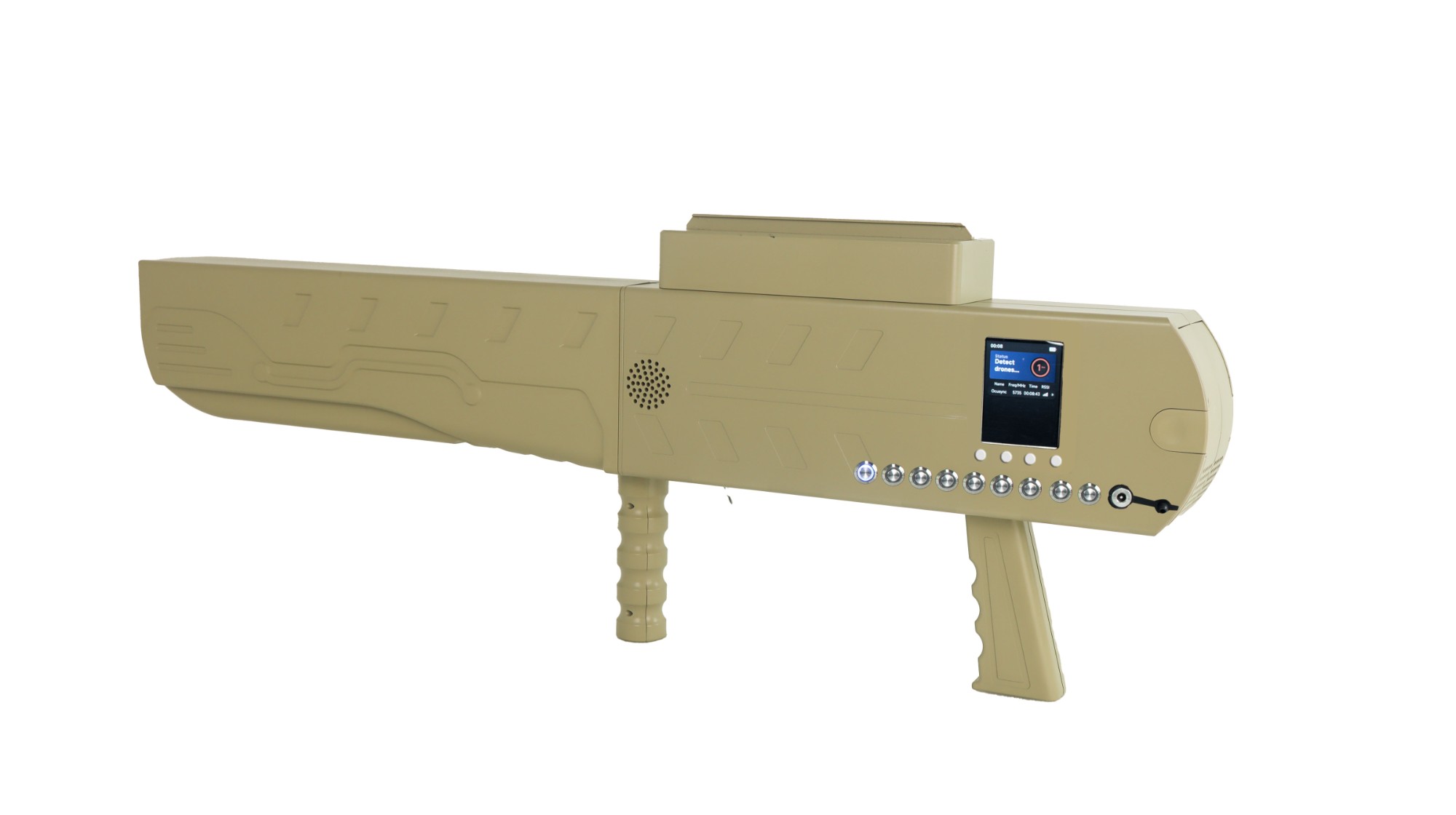

The handheld UAV detection and strike integrated equipment, as a portable UAV detection and strike integrated platform, integrates UAV detection, model identification, rough direction finding, and directional strike. Its principle is based on spectrum sensing and artificial intelligence technology to identify and classify the flight control link and image transmission link of UAV, and can conduct rough direction finding and accurate position acquisition for UAV, and can attack the intruder UAV based on radio interference technology to better guard low altitude safety.
Technical Specification
Number | Index | Parameter | Notes |
1 | Detection and identification of drone types | DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Power vision, Tello drones etc. | |
2 | Localizable drone models | DJI mavic,air,mini,FPV,avata | |
3 | Detection frequency band | 900MHz,1.4GHz,2.4GHz and 5.2,5.8GHz | |
4 | Detection range | 500~3000m | Affected by environmental factors |
5 | Number of targets that can be detected simultaneously | ≥10 sorties | |
6 | Azimuth error | ≤30°(RMS) | |
7 | Detection success rate | ≥95% | |
8 | Identify response time | ≤6s | |
Jammer performance indicators | |||
Channel | Working Frequency | Output power(±1.5dBm) | |
CH1 | 5.8G | 5725-5850MHz | 46dBm |
CH2 | 2.4G | 2400-2485MHz | 46dBm |
CH3 | GPSL1 | 1560-1620MHZ | 45dBm |
CH4 | 5.2G | 5150-5250MHz | 45dBm |
CH5 | 1.2G | 1170-1280MHz | 41dBm |
CH6 | 900MHz | 840-930MHz | 45dBm |
CH7 | 433MHz | 428-438MHz | 41dBm |
CH8 | 1.4G | 1450-1530MHz | 41dBm |
Power supply mode | Inside battery: 24V, 10A; | ||
Battery working time | 35minutes | ||
Working temperature | -20ºC to +65ºC | ||
TotalOutput Power | 200W | ||
Power consumption | 400W | ||
Weight | 7.5KG | ||
PackageSize | 940X480X210mm | ||
Directional Antenna | 15dBi Gain | ||
