Overview

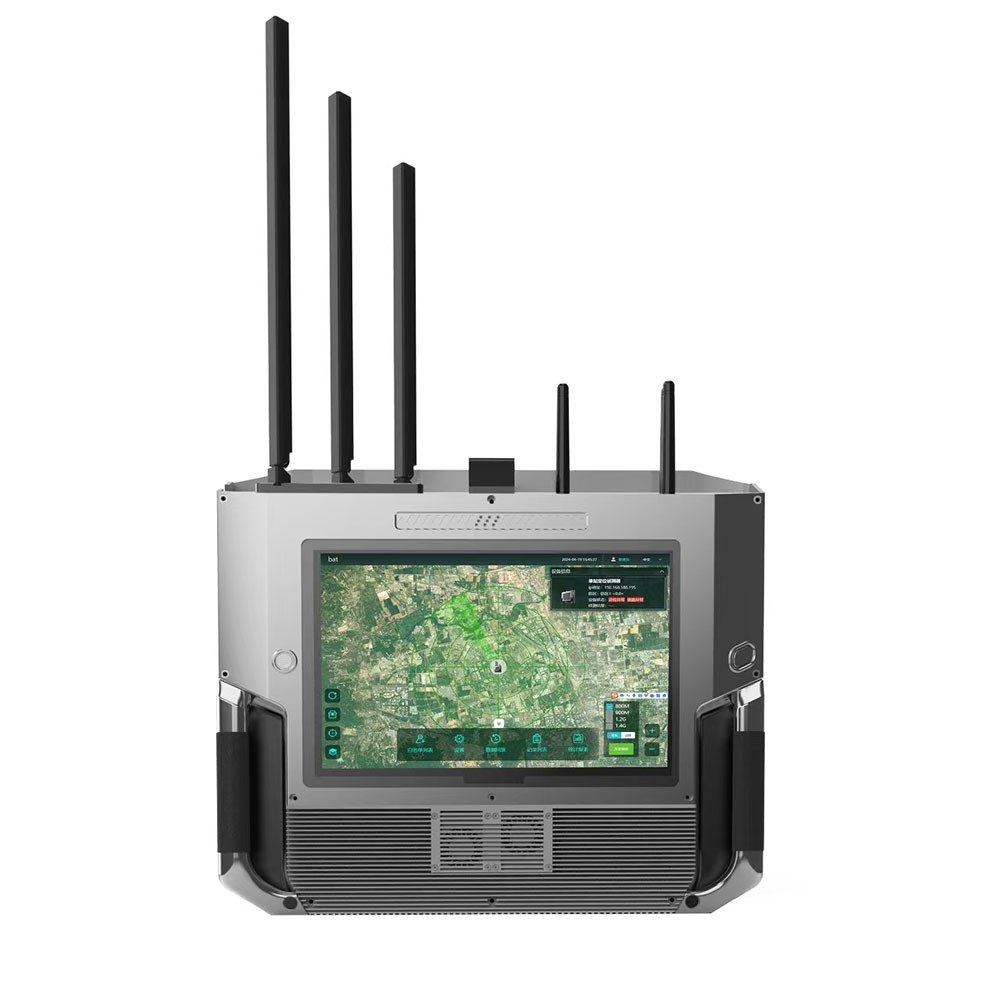

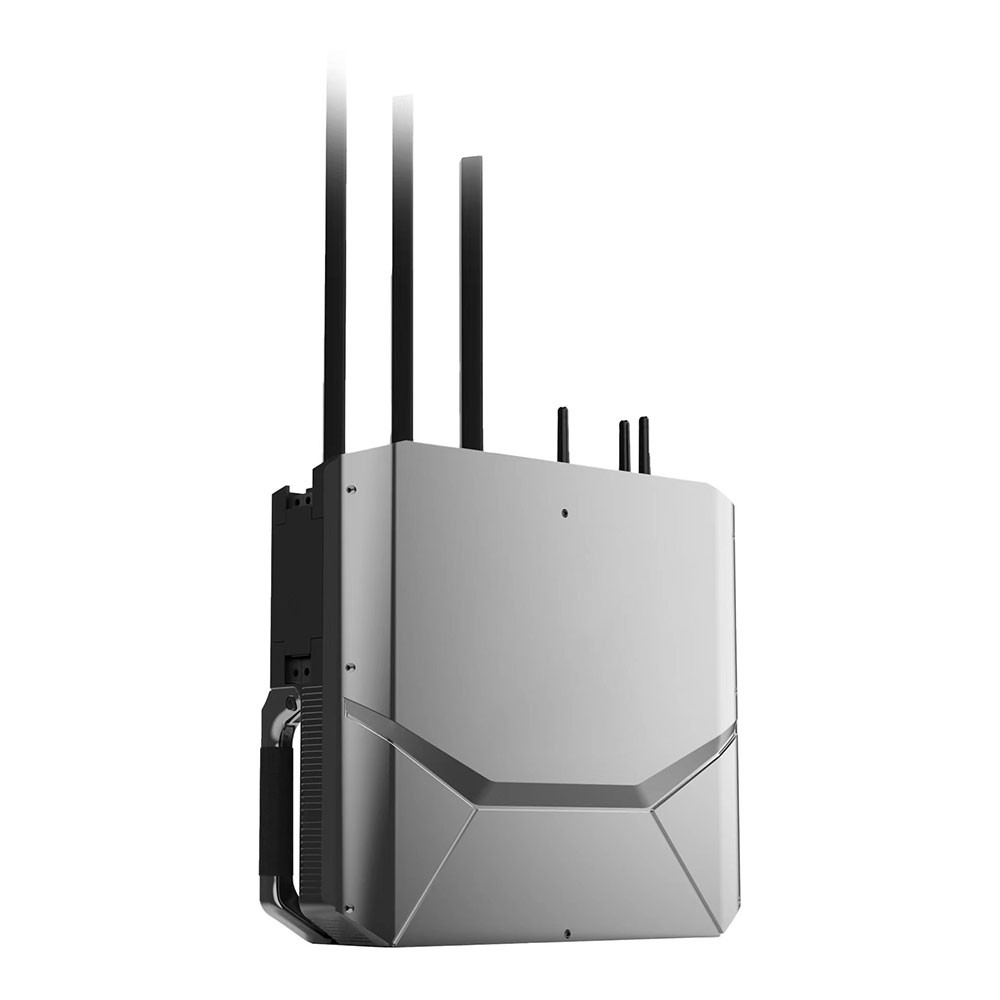

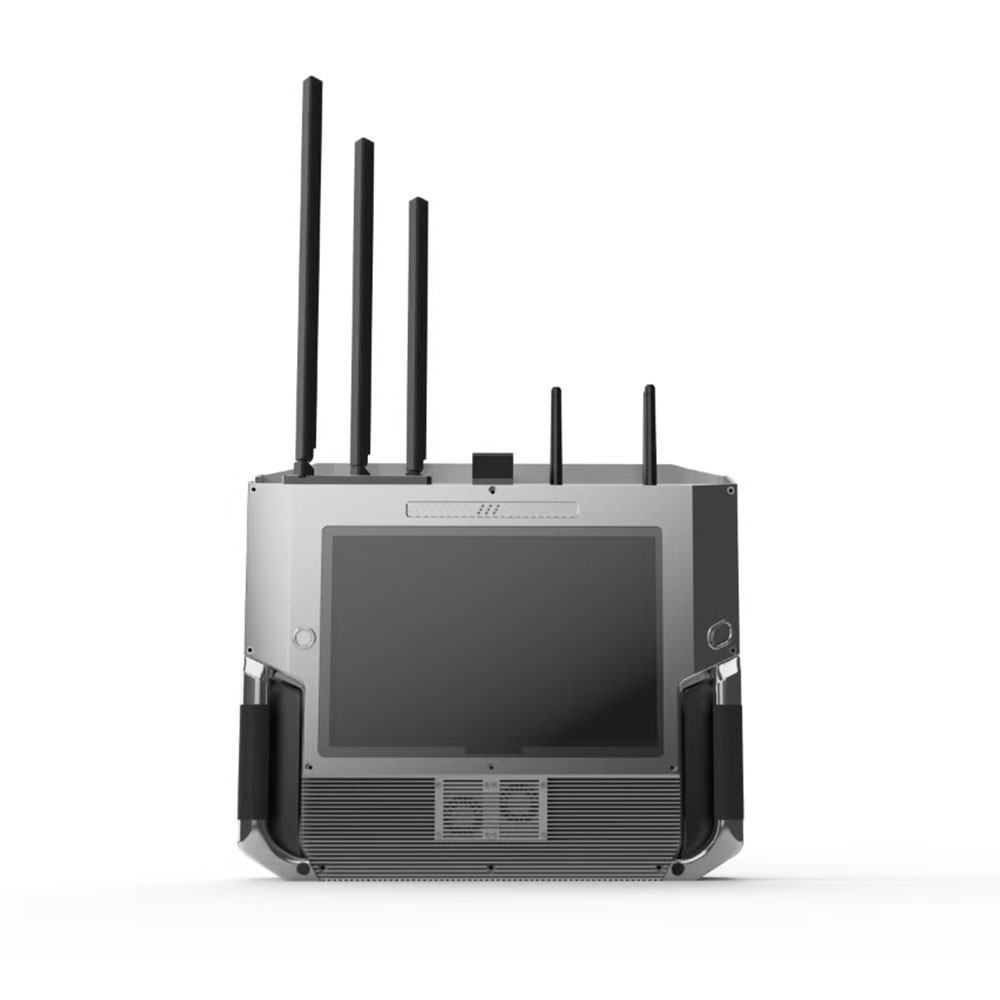

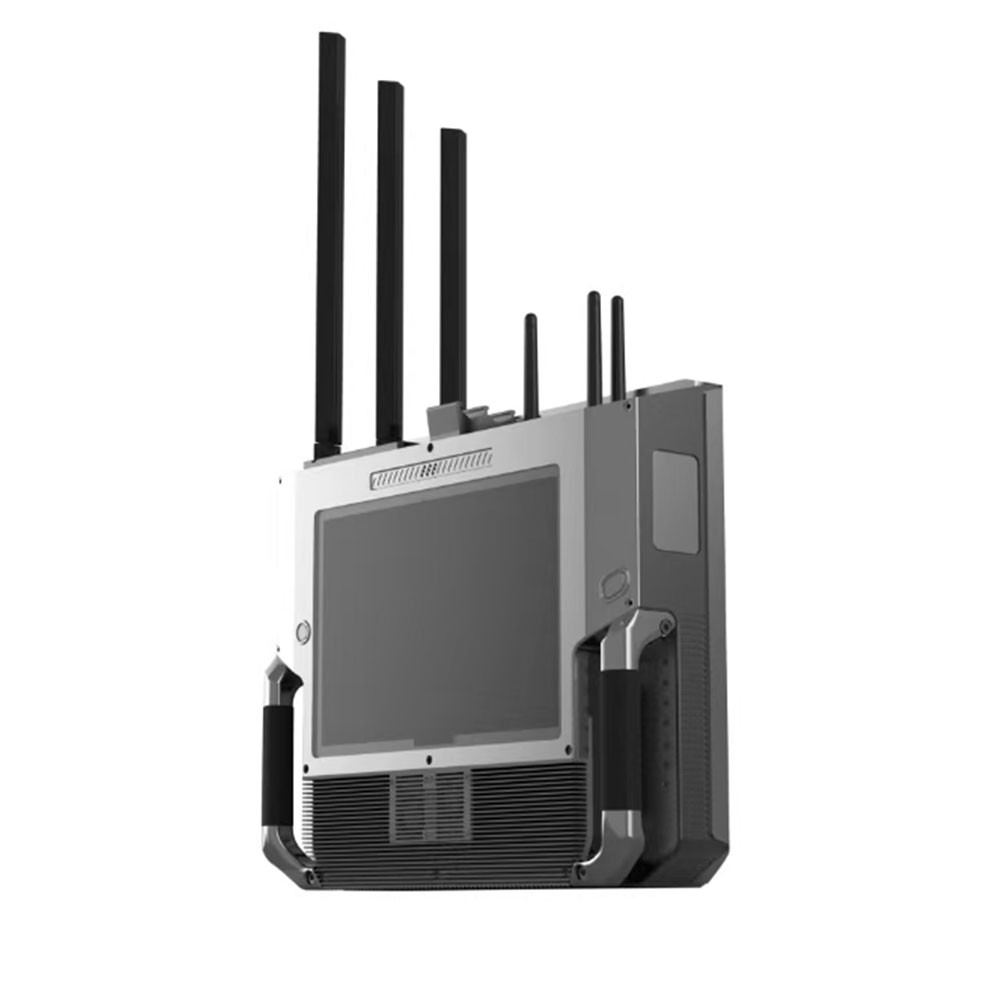

The YH-A40 portable integrated drone detect, jamming, and spoofing Equipment combines six radio frequency analysis algorithms, eight-band electromagnetic suppression, and four-mode navigation spoofing into a single compact device. Its highly integrated design enables full-process management of drone detection, jamming, and spoofing.
Main Performance Indicators
Parameter | Indicator |
Detection frequency | 20MHz~6GHz |
Detection distance | >500m~5km |
Detection Angle | 360° |
Positioning accuracy | ≤20m(TDOA),≤5m(Analysis) |
Analyze information | Information such as drone model, serial number (SN), longitude, latitude, altitude, return-to-home point, and the pilot's location information |
Methods of Reporting an Alarm | Audio and optical alarms (adjustable), external headphone jack (with mute function) |
Interference Band | 800MHz~6GHz,8-band |
Interference capability | Forced landing, return to base |
Interference distance | Remote control power 30dBm, dry path ratio > 1:1 |
Interference angle | ≥30° |
Deceptive Signal System | GPS,GLONASS,GALILEO,BD |
Deception capability | No-fly zones, denial, and expulsion |
Deception Control Radius | 500m~1000m(Adjustable) |
Usage | Handheld, back-mounted, tripod, gimbal, vehicle ceiling-mounted |
Power Supply Method | AC 220V/Battery |
Standby time | 4h |
Headphone Jack | 3.5mm |
Support for networks | 4G/5G/LAN |
Equipment dimensions | 363.2mm×325.95mm×95.59mm |
Equipment Weight | ≤8kg |
Operating Temperature | -25℃~55℃ |
Protection Rating | IP65 |
