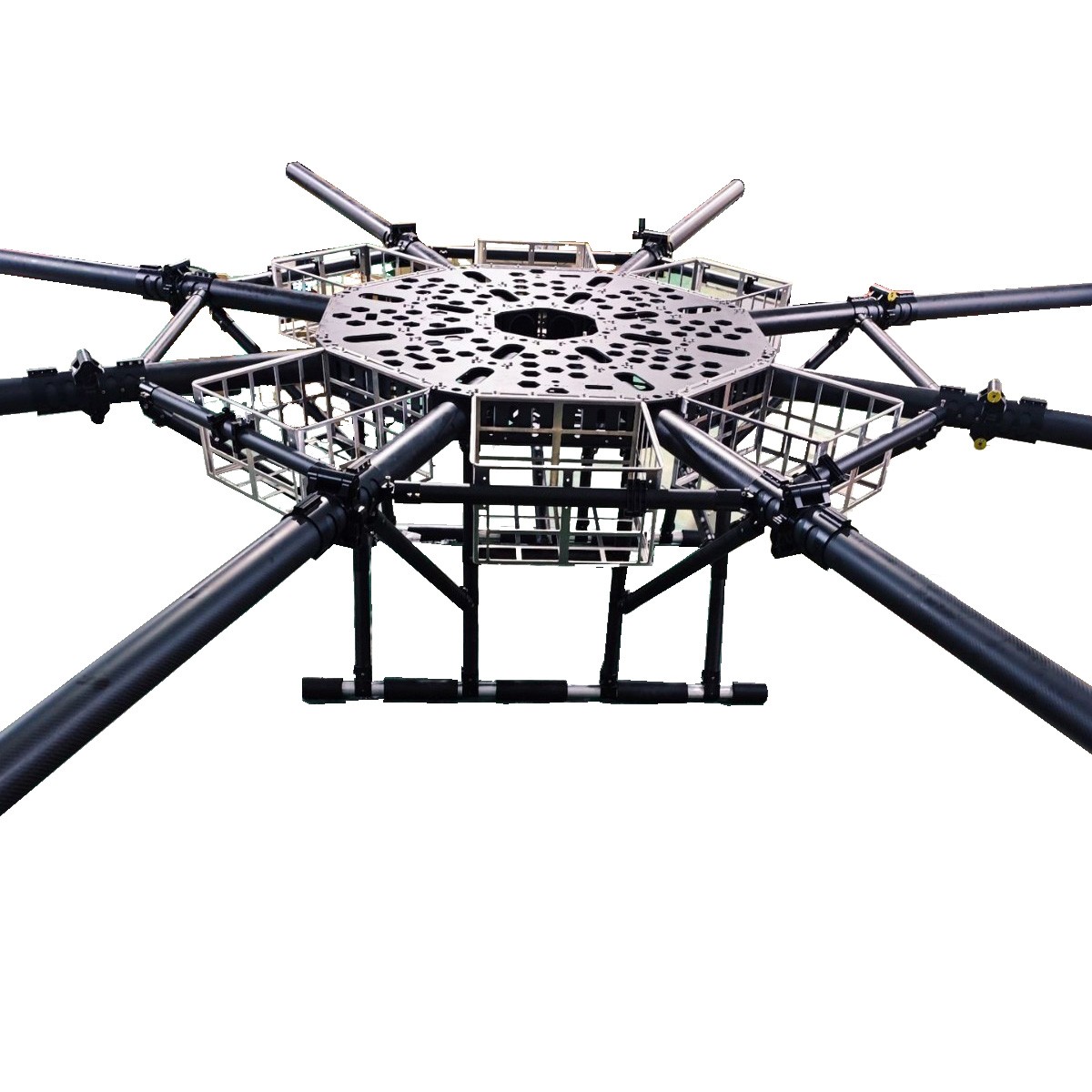

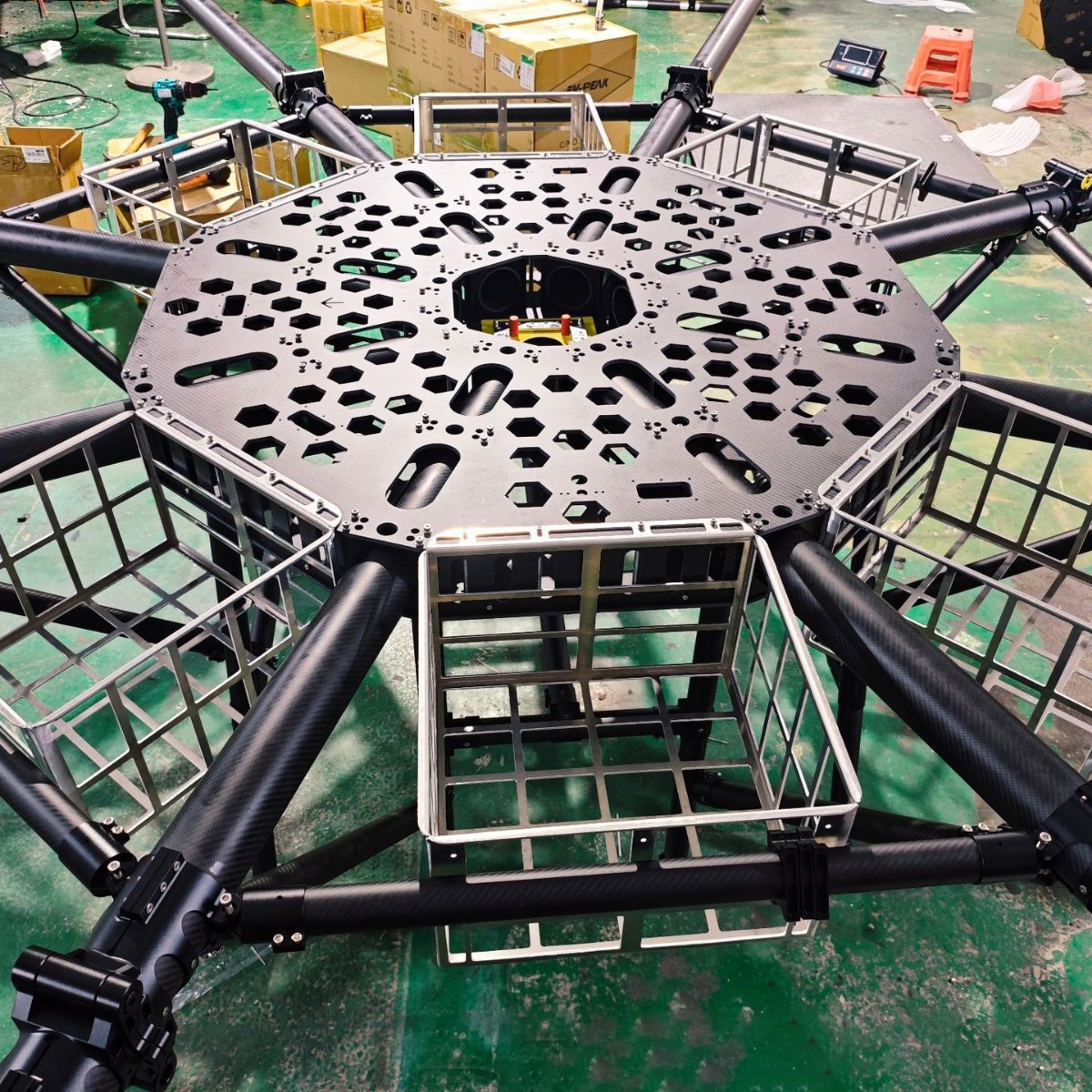

Yh-C51 Ly400 400kg Supply Transport, Heavy Lifting Drone

2

Flight control

professional flight control system (including GPS, high-definition RTK image transmission, and camera).

3

Remote control

Yunzhuo H30 Integrated Digital Remote Control (10-inch screen, maximum control range 50 km) Dual Remote Controls

4

Power kit

Hobwing x15puls coaxial power kit, carbon fiber propellers, 8 sets

5

Battery

One set of batteries(8), 24S voltage, Recommended is 8*24S*46000mah, approximately 32.66 KWH of electricity

6

Charger

8 3kW 24s chargers

2

Maximum load

400kg

12

Battery life

45 minutes (no load, retain 15% battery)
36 minutes (100kg load, retain 15% battery)
27 minutes (200kg load, retain 15% battery)
20 minutes (300kg load, retain 15% battery)
15 minutes (400kg load, retain 15% battery)

3

Maximum takeoff weight

700kg

13

Charger power

3000w*4/6000*2

4

Layout wheelbase

5080mm

14

fuselage material

T700 (carbon fiber, 75 aluminum alloy)

5

Remote control

Yunzhuo H16pro Integrated with digital screen (7-inch screen, maximum control distance 40km)

15

power kit

Hobwing X15 24S

6

Folded body dimensions

2300*2300*1900

16

operating voltage

88V-102V

7

bare device weight

170kg

17

battery material

Semi-solid mechanism, PVC casing

8

battery weight

110kg

18

Main features

One-click takeoff, one-click landing, and out-of-control return
Real-time view of aircraft flight status, images, video, voltage, coordinates, altitude, speed, distance, etc

9

Flight distance

0-10km

19

propeller size

1868mm (73 inches)

10

Flight altitude

0-1500m

20

propeller material

carbon fiber
