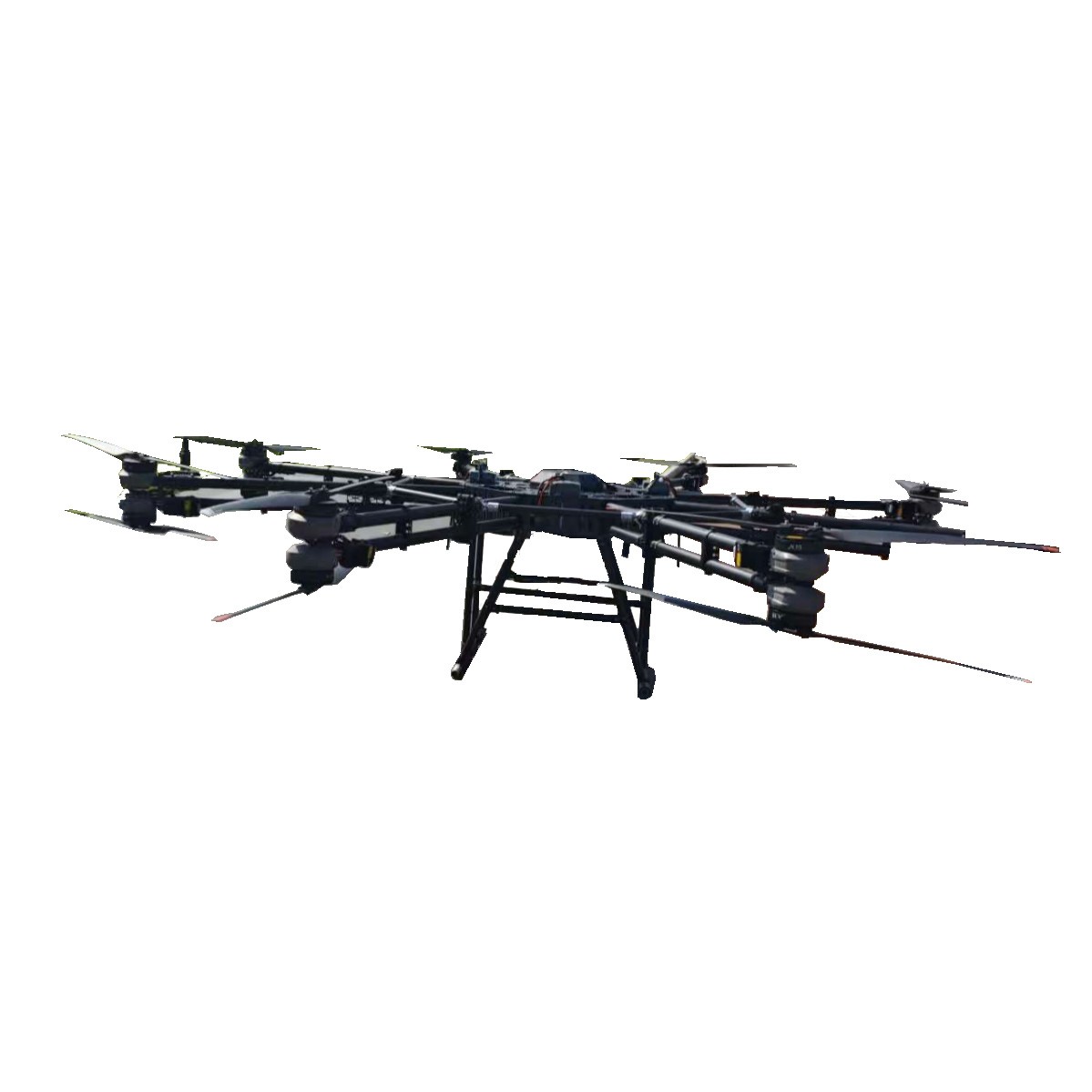

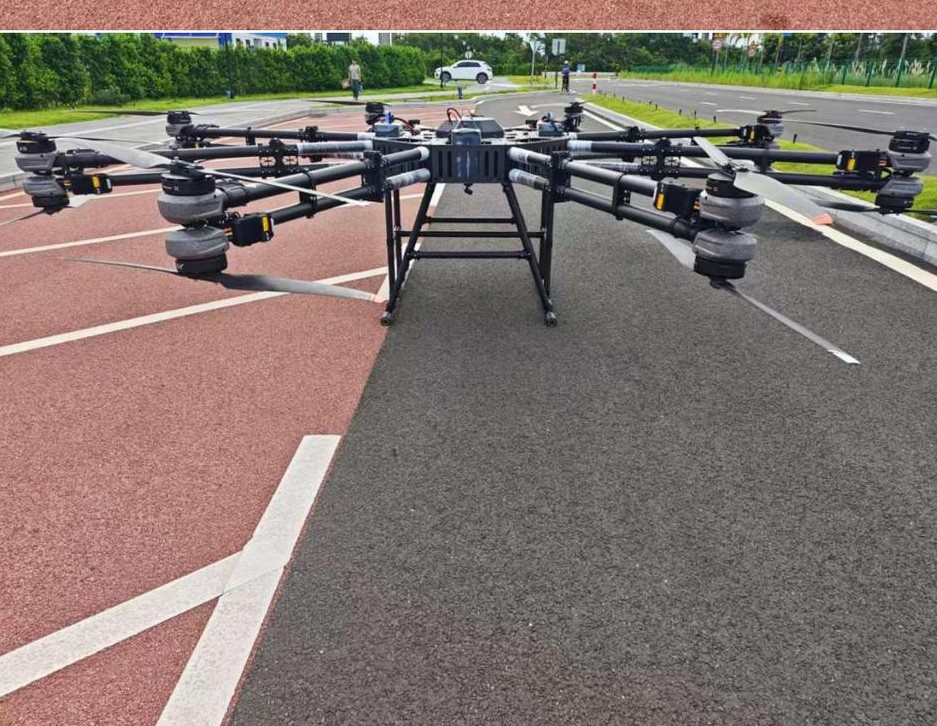

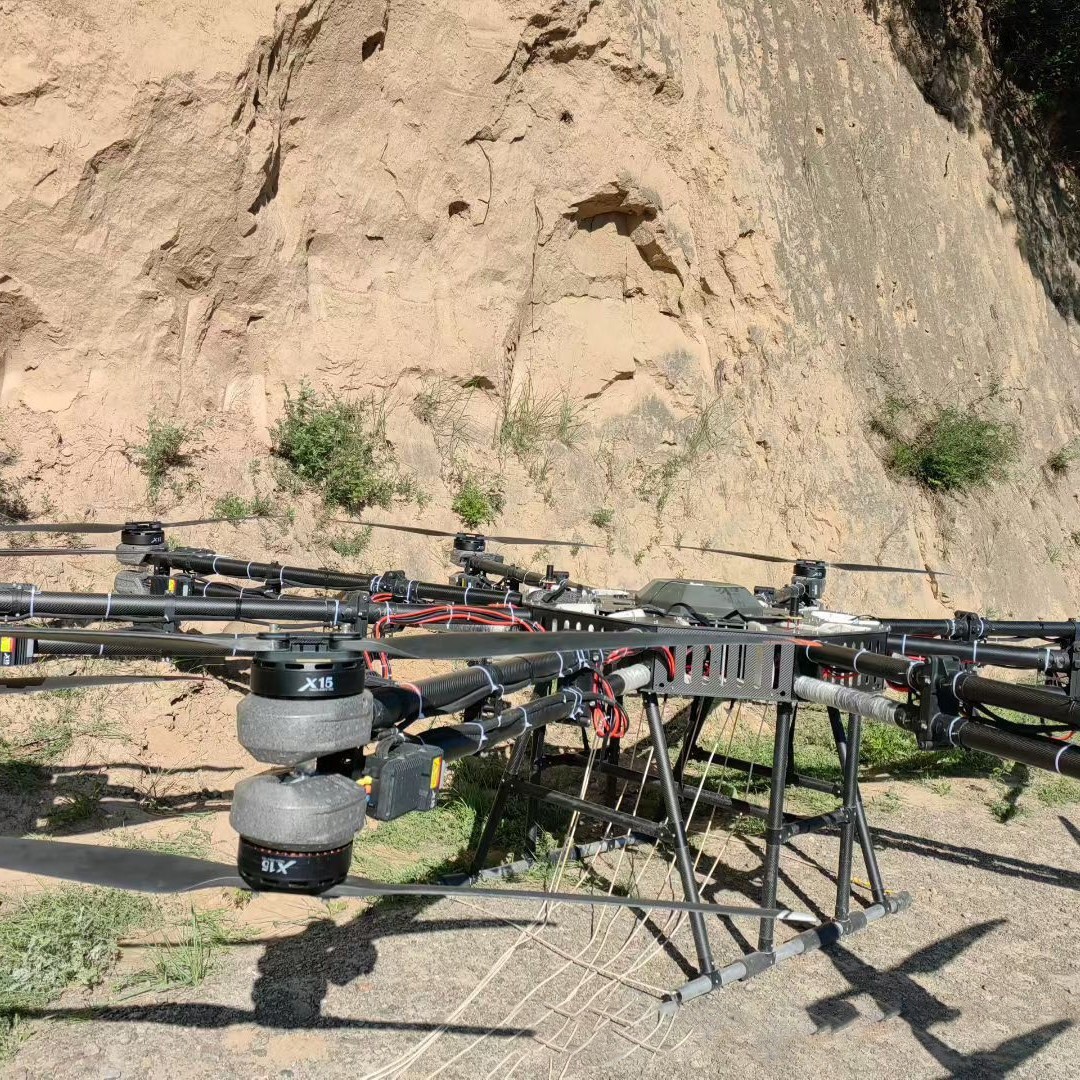

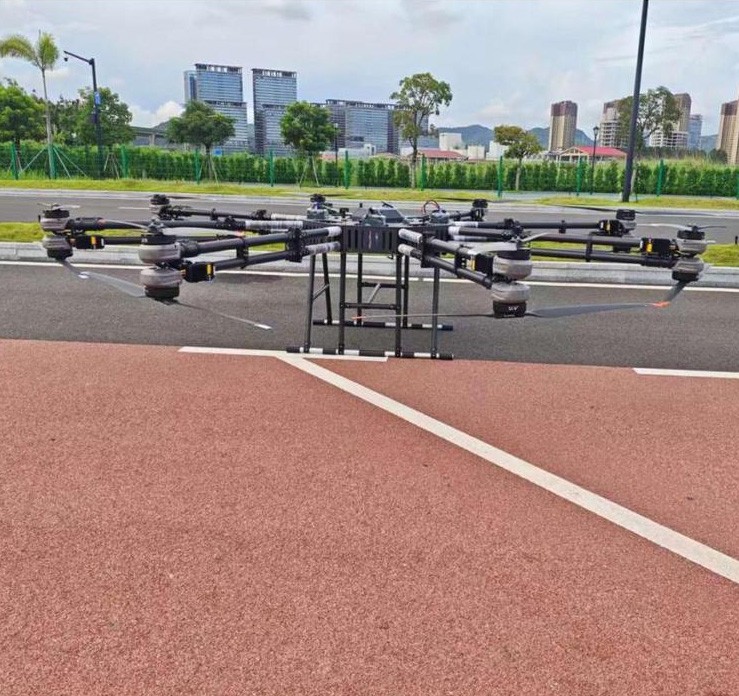

Yh-C49 Ly300 8 Axis, 16 Paddle, 250kg-300kg Material Transportation Drone

2

Flight control

 professional flight control system (including GPS, high-definition RTK image transmission, and camera).

3

Remote control

Yunzhuo H16pro Integrated Digital Remote Control (7-inch screen, maximum control range 40 km) Dual Remote Controls

4

Power kit

Hobwing x15 coaxial power kit, carbon fiber propellers, 16 sets

5

Battery

One set of batteries(8), 18S voltage, Recommended is 8*18S*50ah-60ah, approximately 28 KWH of electricity

6

Charger

8 3kW 18s chargers

7

Camera

C10pro gimbal

2

Maximum load

300kg

12

Battery life

40 minutes (no load, retain 15% battery)
30 minutes (100kg load, retain 15% battery)
22 minutes (200kg load, retain 15% battery)
18 minutes (250kg load, retain 15% battery)
13 minutes (300kg load, retain 15% battery)

3

Maximum takeoff weight

580kg

13

Charger power

3000w*8/6000w*4

4

Layout wheelbase

4700mm

14

fuselage material

T700 (carbon fiber, 75 aluminum alloy)

5

Remote control

Yunzhuo H16pro Integrated with digital screen (7-inch screen, maximum control distance 40km)

15

power kit

Hobwing X15 18S

6

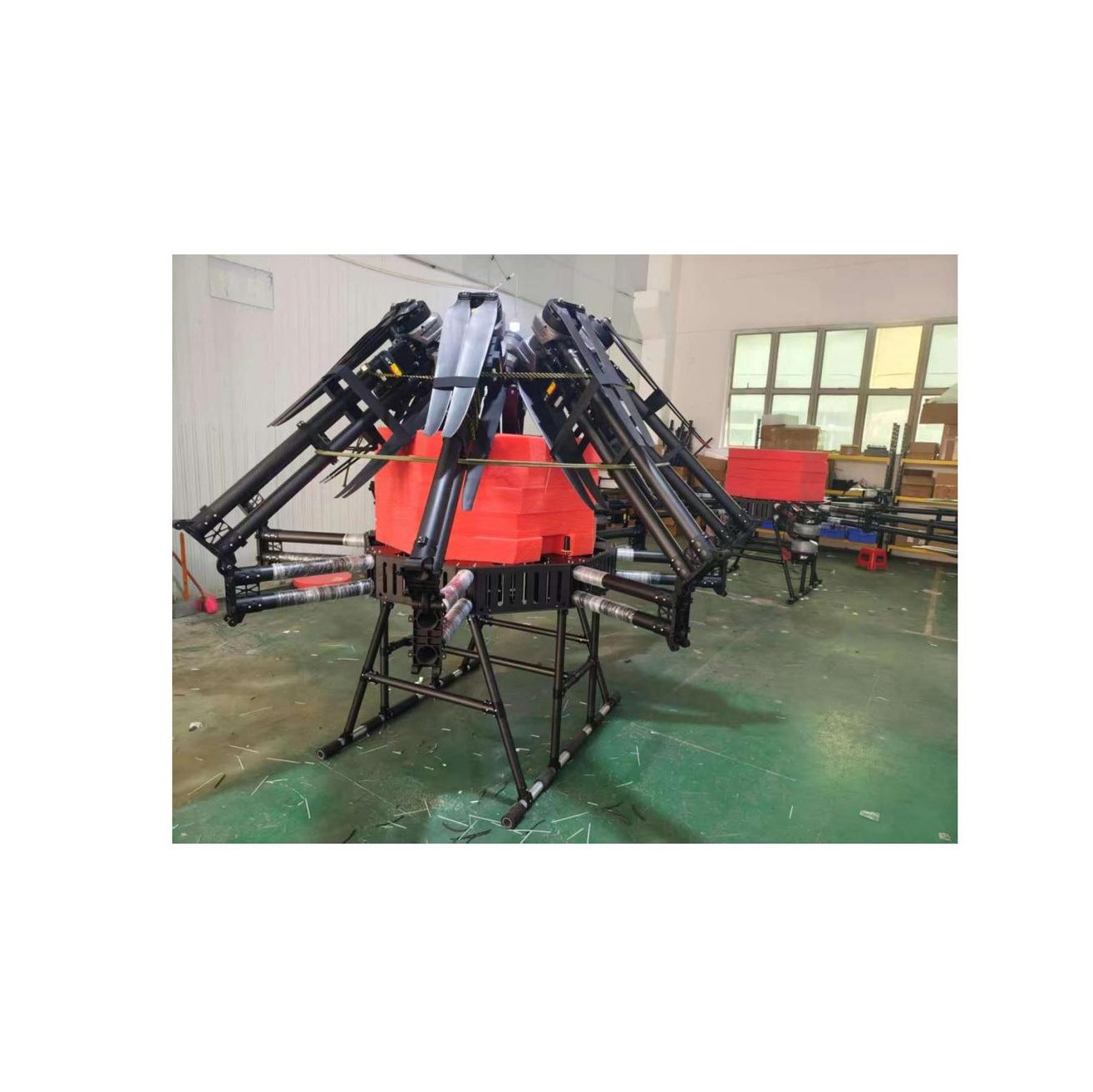

Folded body dimensions

2200*2200*1800

16

operating voltage

66V-81V

7

bare device weight

160kg

17

battery material

Semi-solid mechanism, PVC casing

8

battery weight

90kg

18

Main features

One-click takeoff, one-click landing, and out-of-control return
Real-time view of aircraft flight status, images, video, voltage, coordinates, altitude, speed, distance, etc

9

Flight distance

0-10km

19

propeller size

1600mm (63 inches)

10

Flight altitude

0-1500m

20

propeller material

carbon fiber
