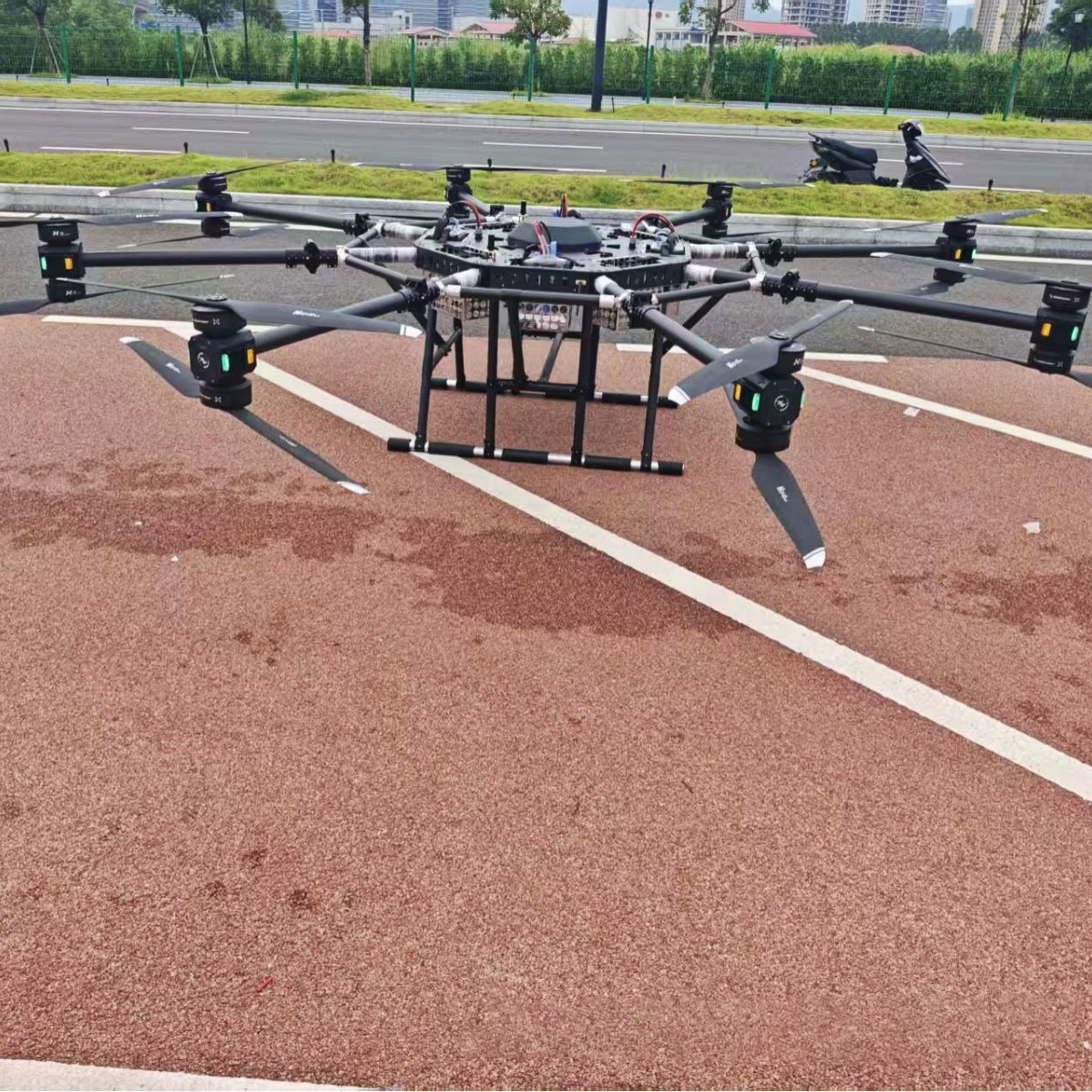

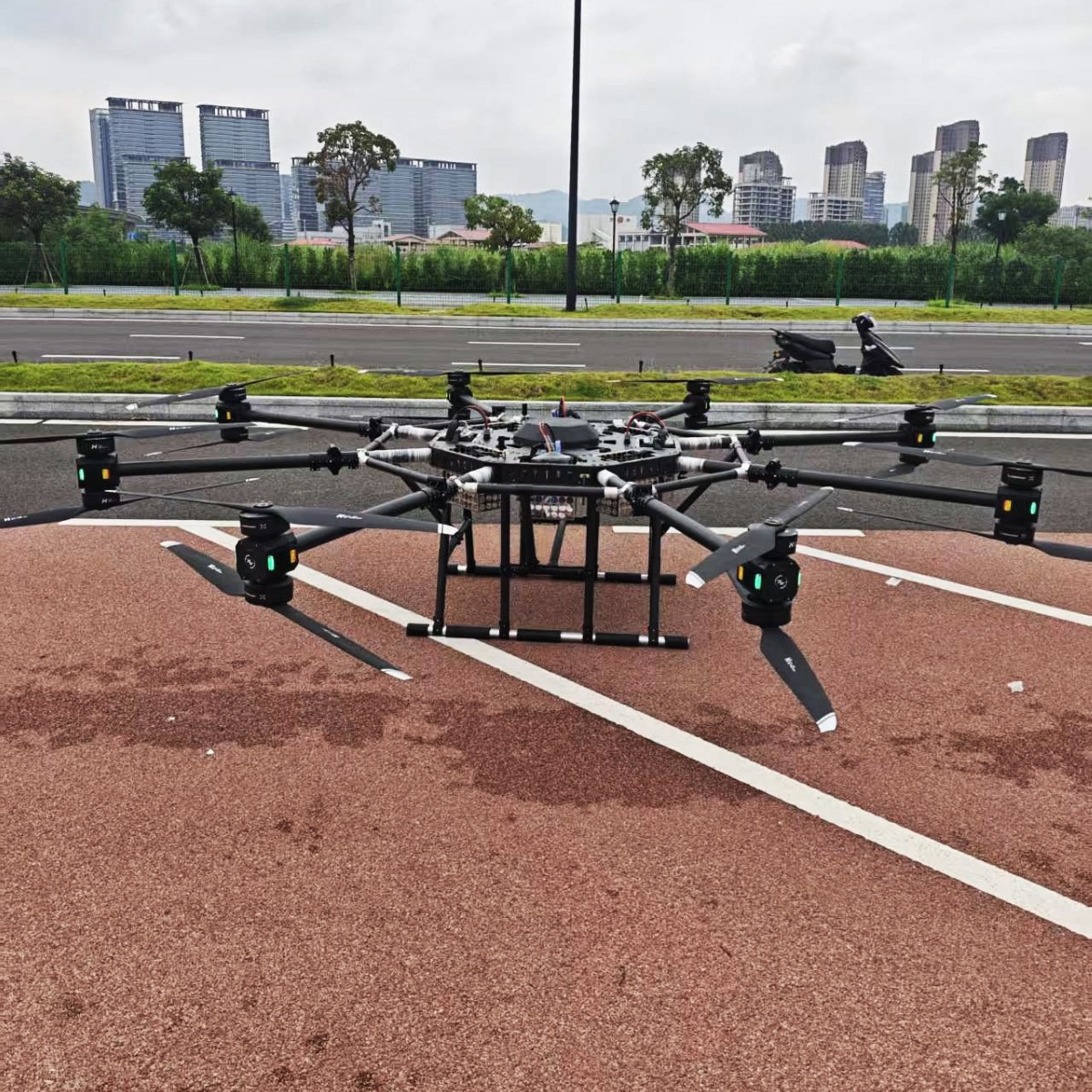

Yh-C48 Ly200 Payload 200kg Industrial Grade Multi-Purpose Drone

2

Flight control

 professional flight control system (including GPS, high-definition RTK image transmission, and camera).

3

Remote control

Yunzhuo G20 Integrated Digital Remote Control (7-inch screen, maximum control range 30 km) Dual Remote Controls

4

Power kit

Hobwing H13 coaxial power kit, carbon fiber propellers, 8 sets

5

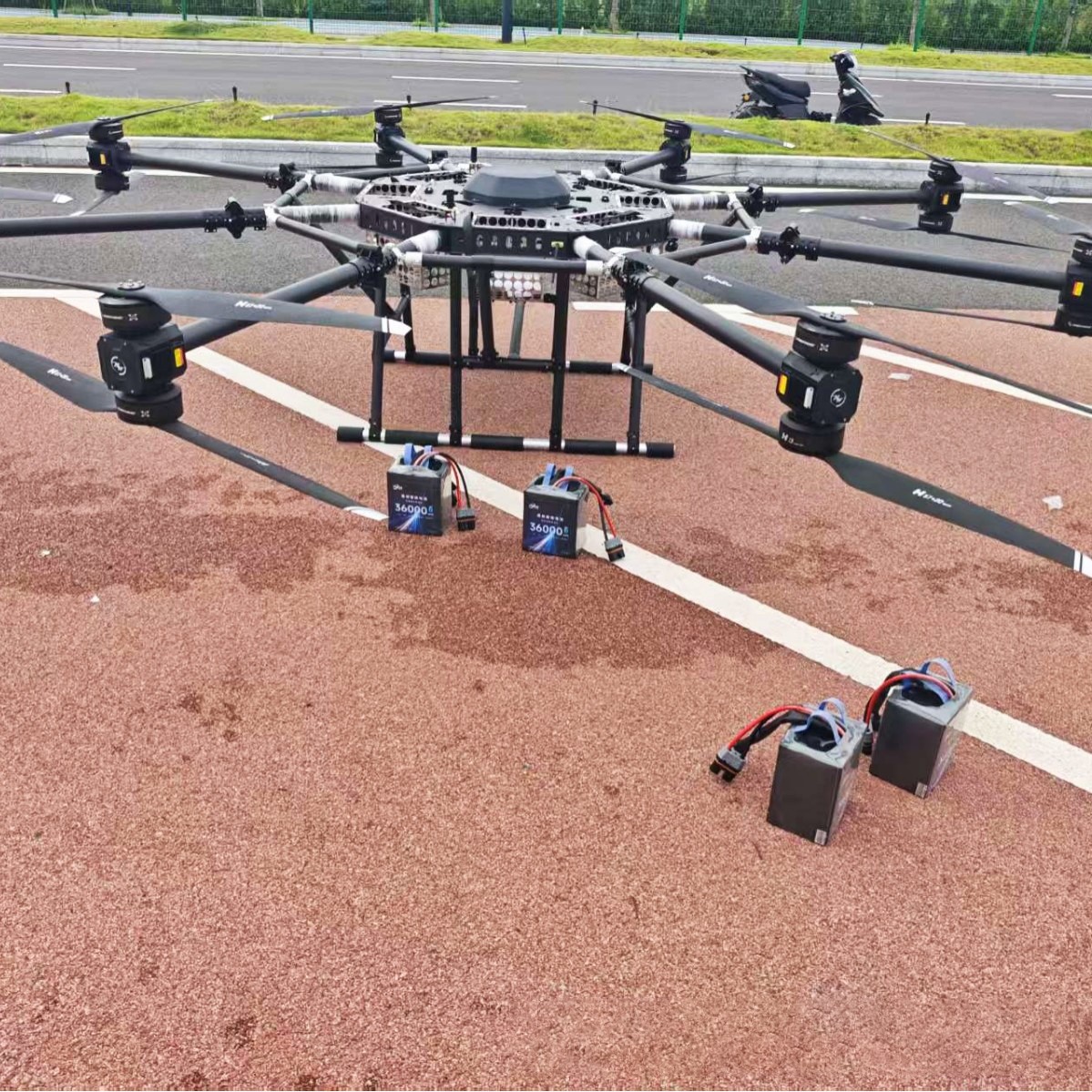

Battery

One set of batteries(6), four 24S*40000mAh batteries, totaling approximately 21 kWh.

6

Charger

6 3kW 24s chargers

2

Maximum load

260kg

12

Battery life

58 minutes (no load, retain 15% battery)
30 minutes (100kg load, retain 15% battery)
20 minutes (200kg load, retain 15% battery)

3

Maximum takeoff weight

480kg

13

Charger power

3000w

4

Layout wheelbase

4300mm

14

fuselage material

T700 (carbon fiber, 75 aluminum alloy)

5

Remote control

Yunzhuo H16pro Integrated with digital screen (7-inch screen, maximum control distance 30km)

15

power kit

Hobwing H13 24S

6

Folded body dimensions

2000*2000*1700

16

operating voltage

100V

7

bare device weight

115kg

17

battery material

Semi-solid mechanism, PVC casing

8

battery weight

70kg

18

Main features

One-click takeoff, one-click landing, and out-of-control return
Real-time view of aircraft flight status, images, video, voltage, coordinates, altitude, speed, distance, etc

9

Flight distance

0-10km

19

propeller size

1447mm (57 inches)

10

Flight altitude

0-4500m

20

propeller material

carbon fiber
