Overview

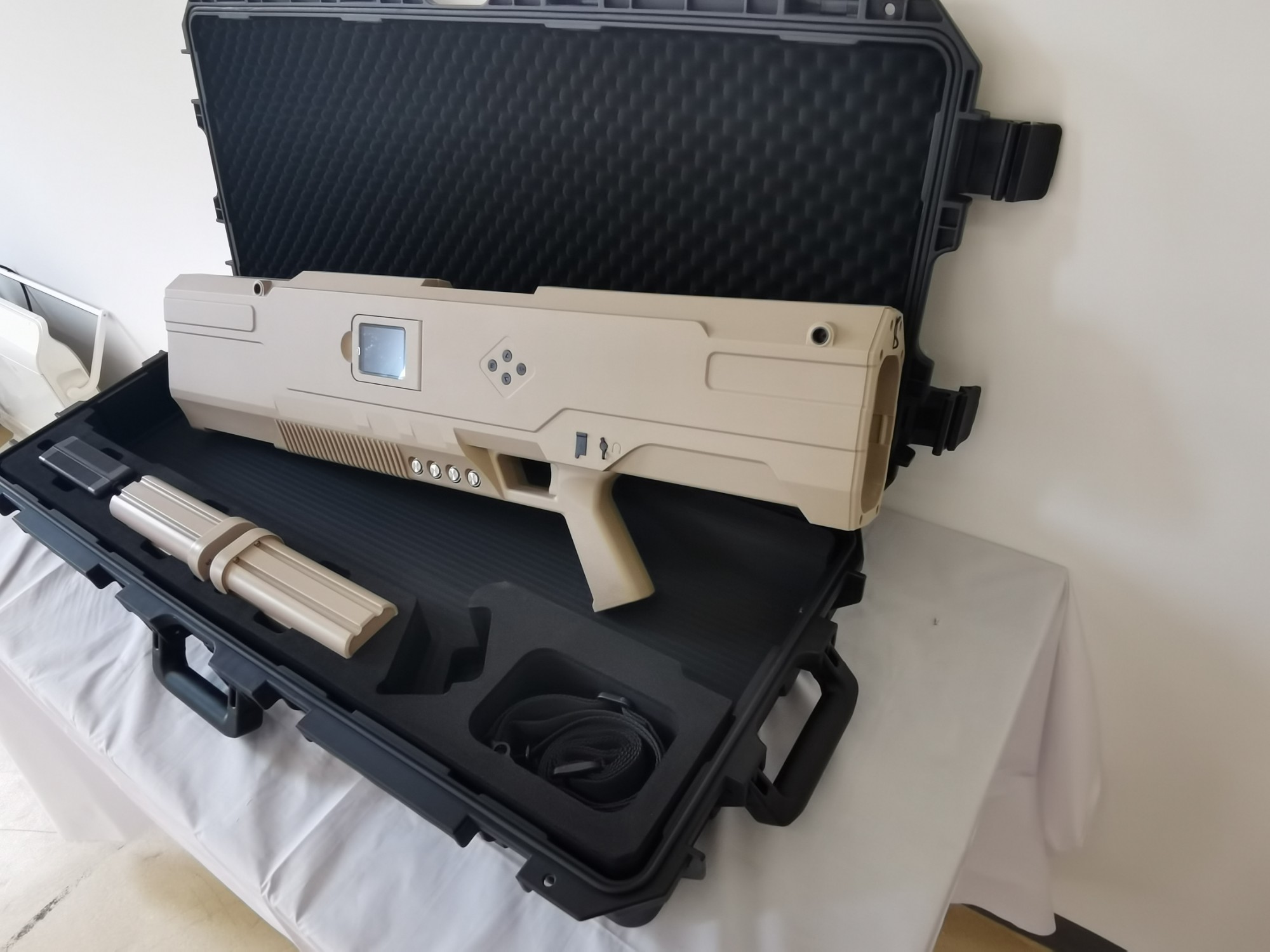

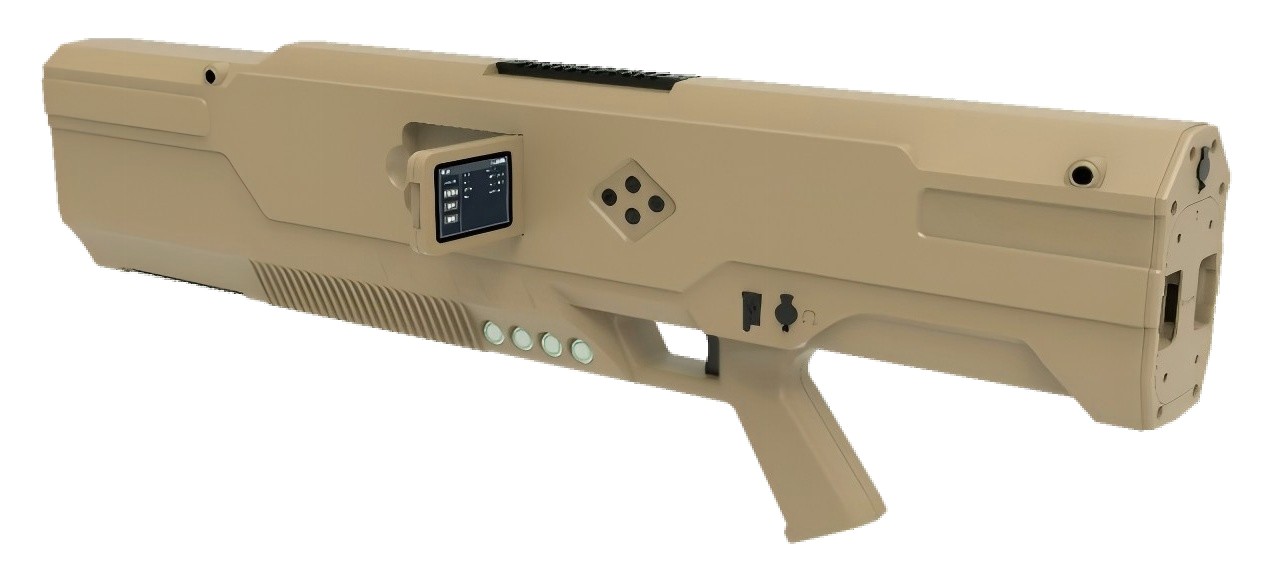

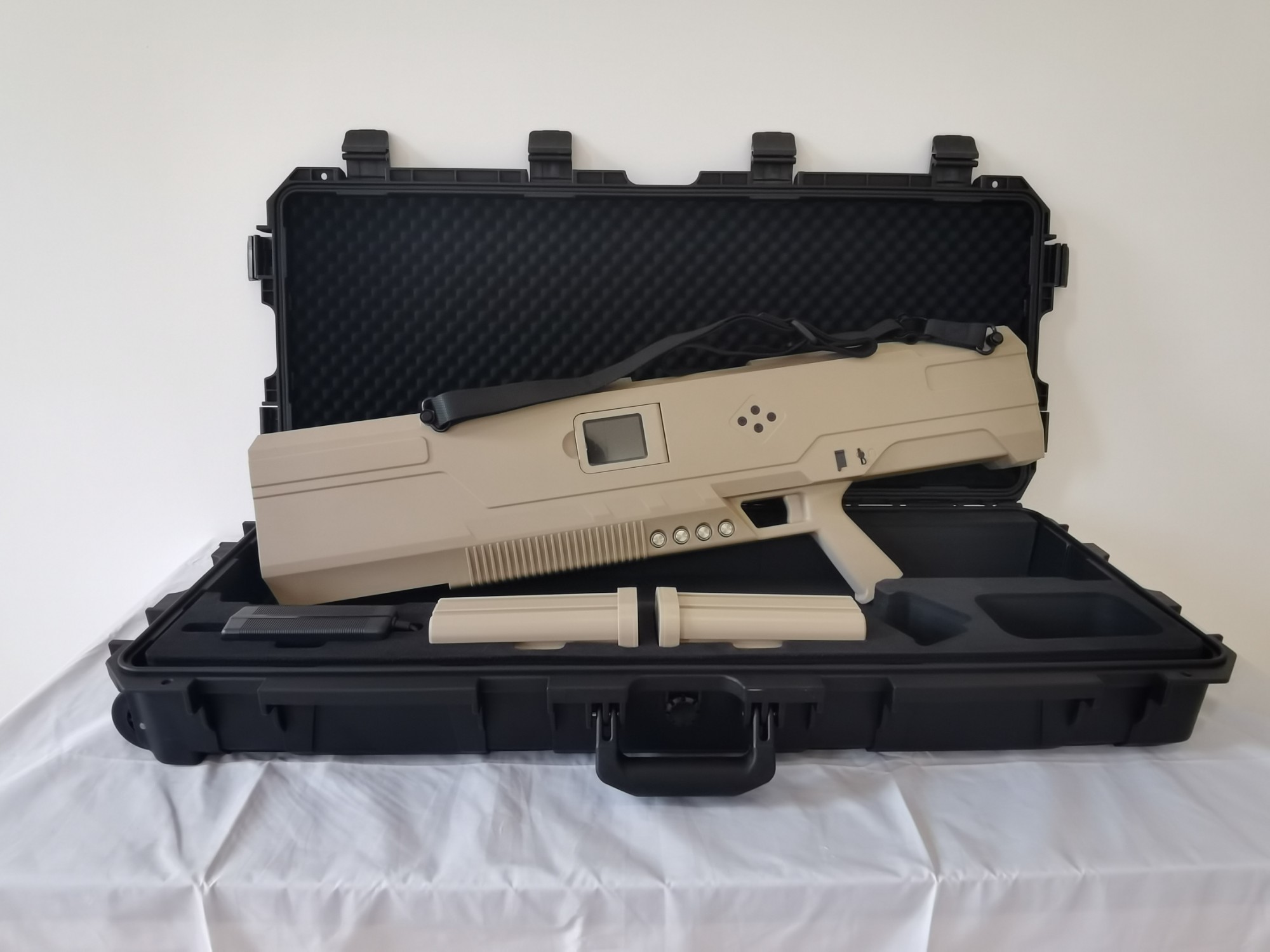

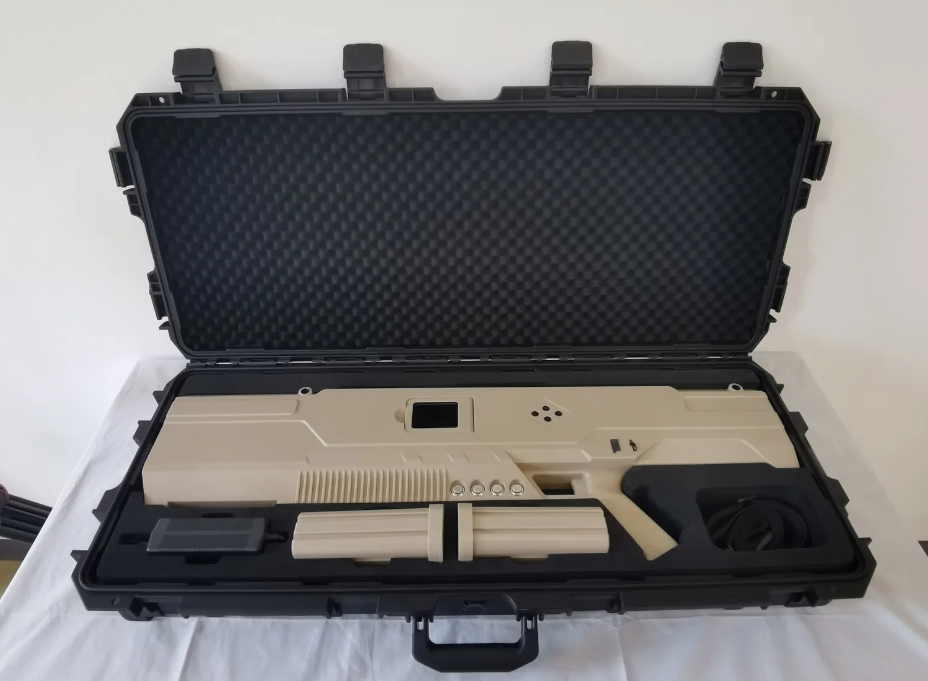

The handheld UAV detection and strike integrated equipment, as a portable UAV detection and strike integrated platform, integrates UAV detection, model identification, rough direction finding, position acquisition and directional strike. Its principle is based on spectrum sensing and artificial intelligence technology to identify and classify the flight control link and image transmission link of UAV, and can conduct rough direction finding and accurate position acquisition for UAV, and can attack the intruder UAV based on radio interference technology to better guard low altitude safety.
Indicator parameters
Detection and positioning performance indicators
Number | Index | Parameter | Notes |
1 | Detection and identification of drone types | DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Powervision, Tello drones etc. | |
2 | Localizable drone models | DJI mavic,air,mini,FPV,avata | |
3 | Detection frequency band | 900MHz,1.4GHz,2.4GHz,5.2GHzand 5.8GHz | |
4 | Detection range | 500~3000m | Affected by environmental factors |
5 | Positioning distance | 500~2000m | Affected by environmental and model factors |
6 | Number of targets that can be detected simultaneously | ≥10 sorties | |
7 | Location refresh time | 5~10s | 100m away, affected by environmental factors |
8 | Azimuth error | ≤30°(RMS) | |
9 | Positioning accuracy | ≤10m | |
10 | Detection success rate | ≥95% | |
11 | Identify response time | ≤6s |
