Product Overview

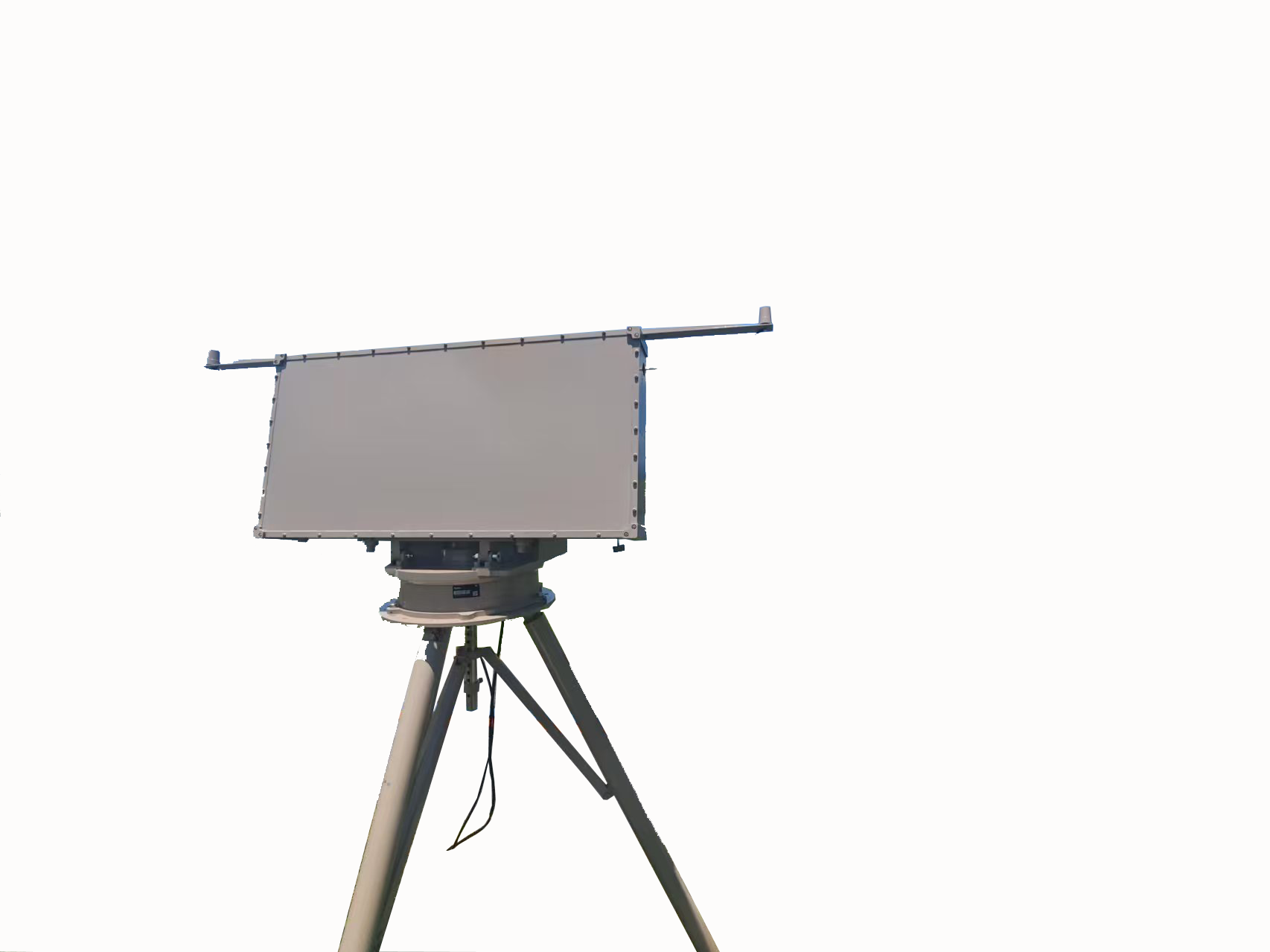

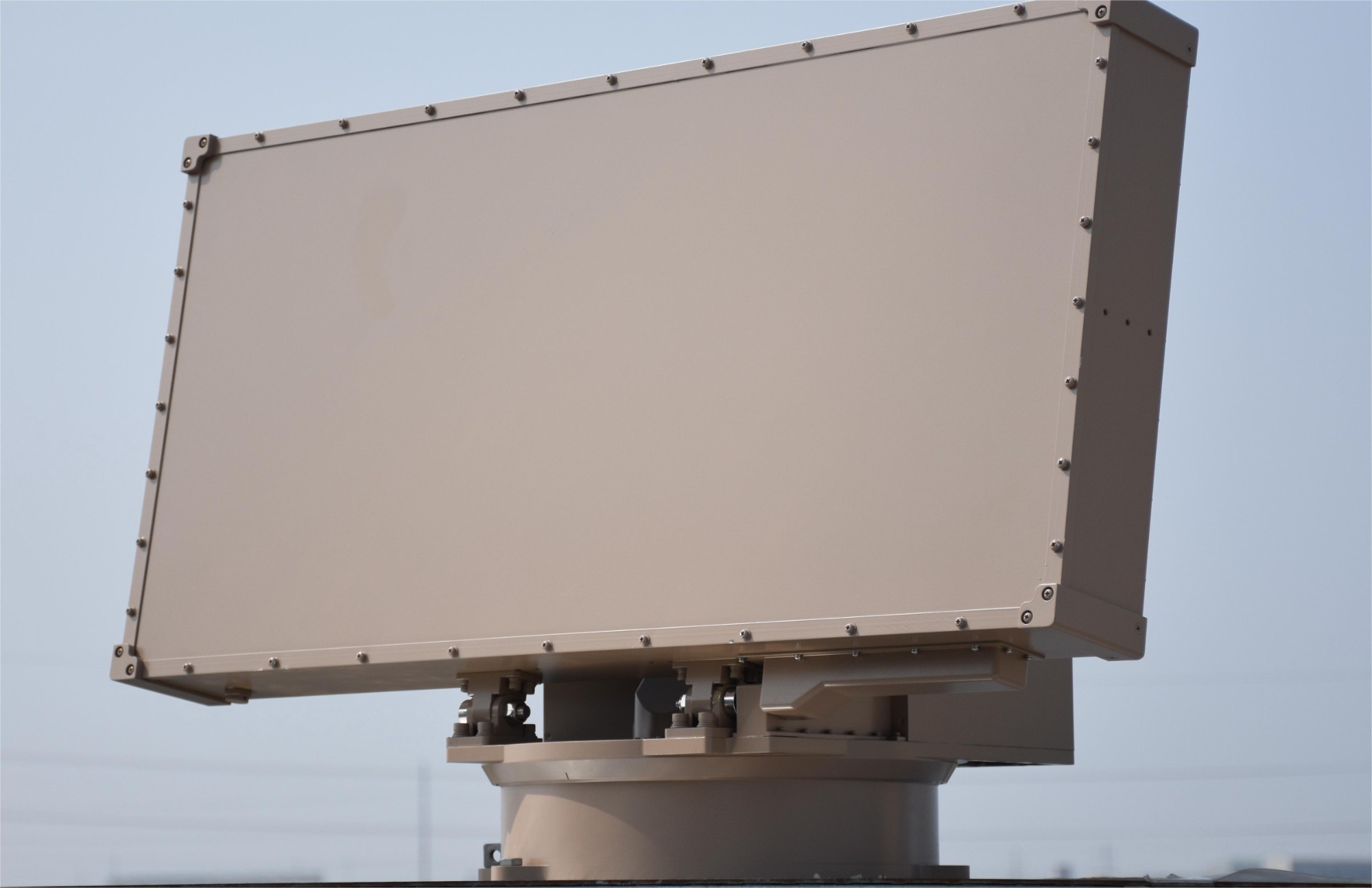

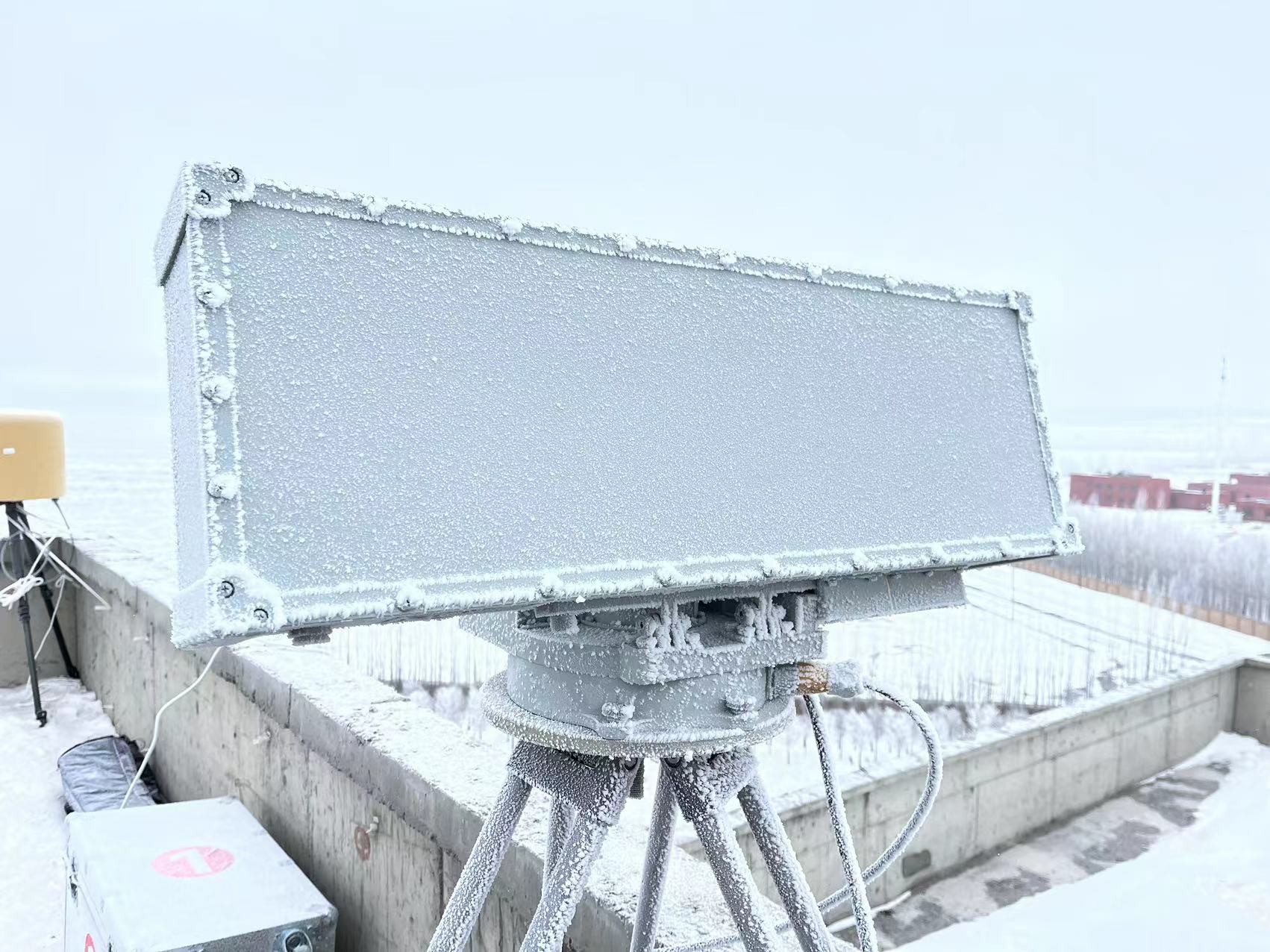

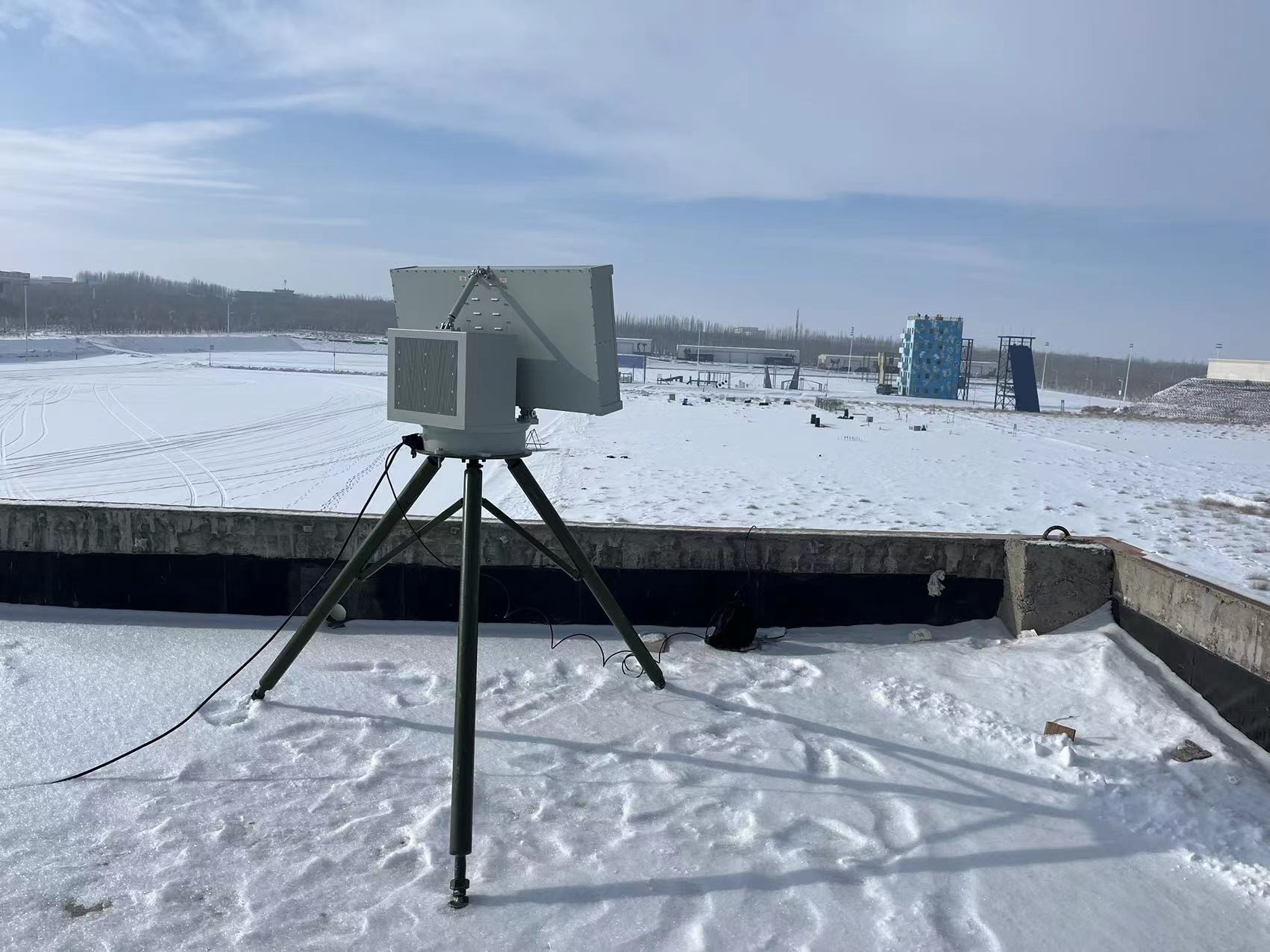

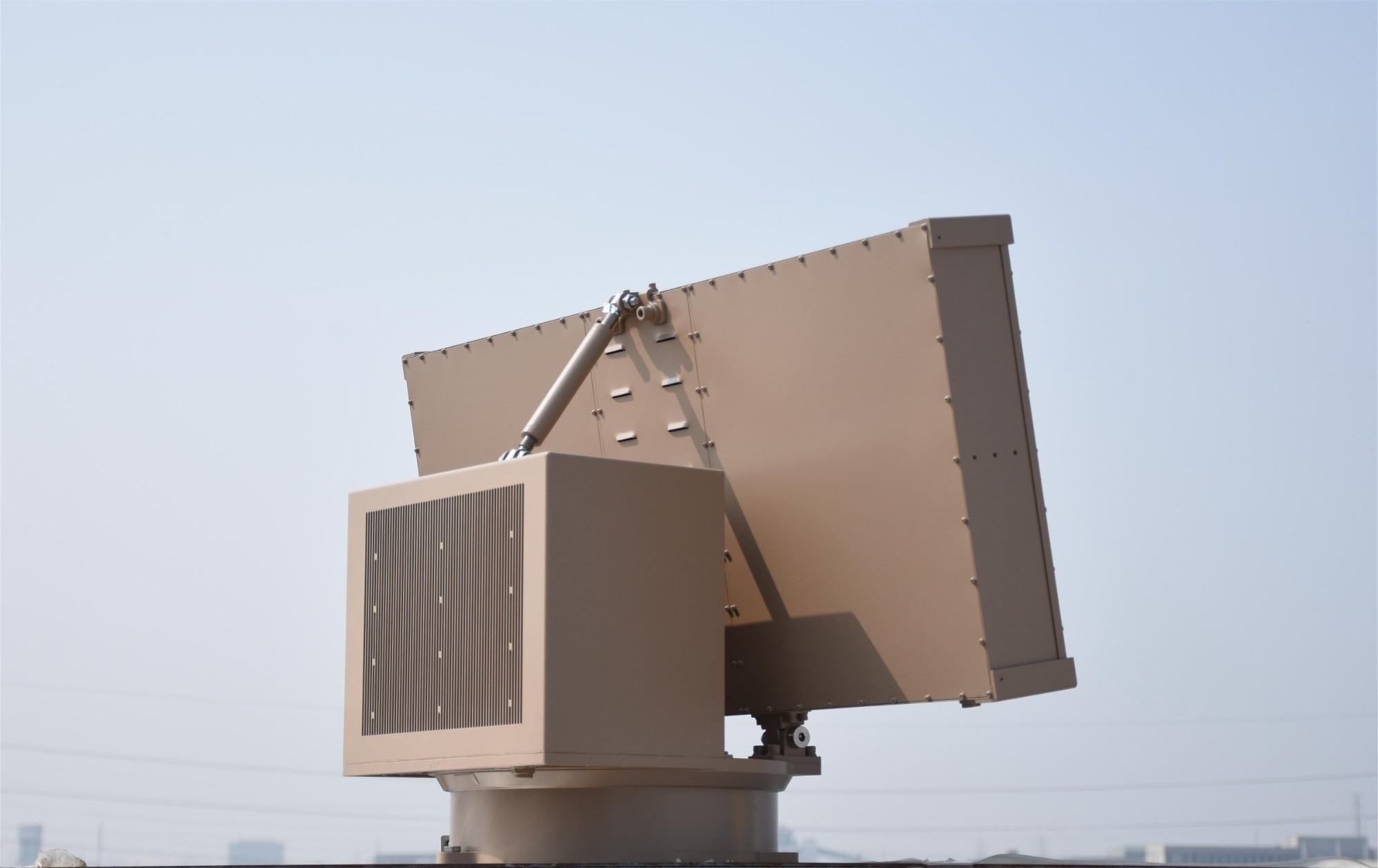

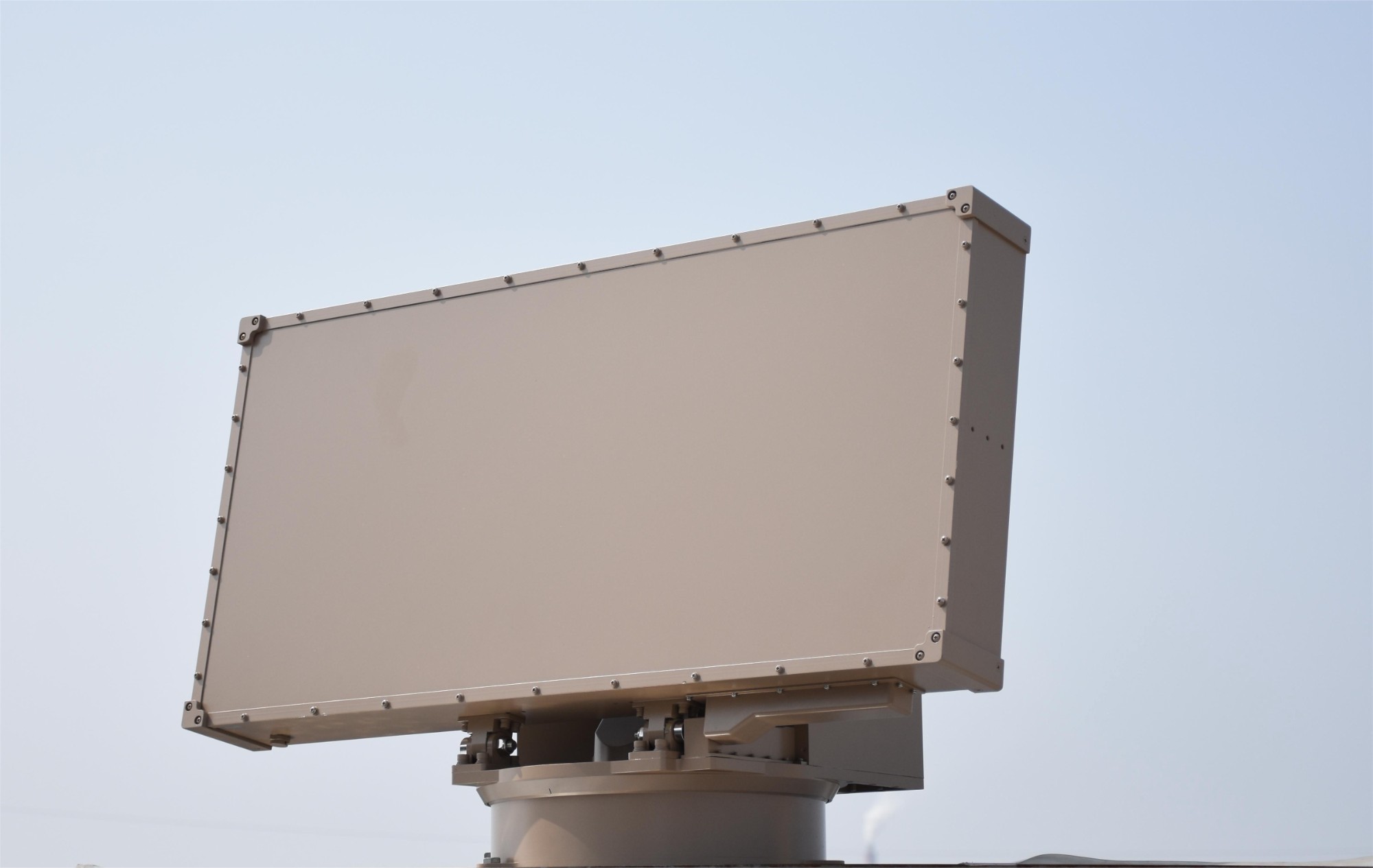

The product Three-dimensional Radar is a professional low-altitude detection equipment utilizing advanced pulse Doppler technology. This radar innovatively integrates a hybrid design of azimuth mechanical scanning and elevation phased array electronic scanning, achieving high-precision and high-efficiency detection and positioning of low-altitude aircraft. Specifically developed to address the increasingly prominent low-altitude security threats, it can effectively detect, track, and locate various low-altitude, slow-moving, small flying targets, providing reliable low-altitude security assurance for critical areas.
Product parameters
Radar band | X | Coverage area (Location) | 0°~360° |
Technical system | Linear frequency modulation pulse | Coverage area (Pitch) | 0°~30° |
Scanning method | Azimuth sweep + pitch phase sweep | Detection accuracy (Distance) | ≤8m |
Detection distance | ≥10km | Detection accuracy (Location) | ≤0.4° |
Data rate | 3s | Detection accuracy (Pitch) | ≤0.3° |
Target capacity | ≥500 batches | Power consumption | ≤1200W |
Weight | ≤100kg | Installation method | Fixed type, vehicle-mounted type |
Size | ≤900×450×960(mm) |
