Overview

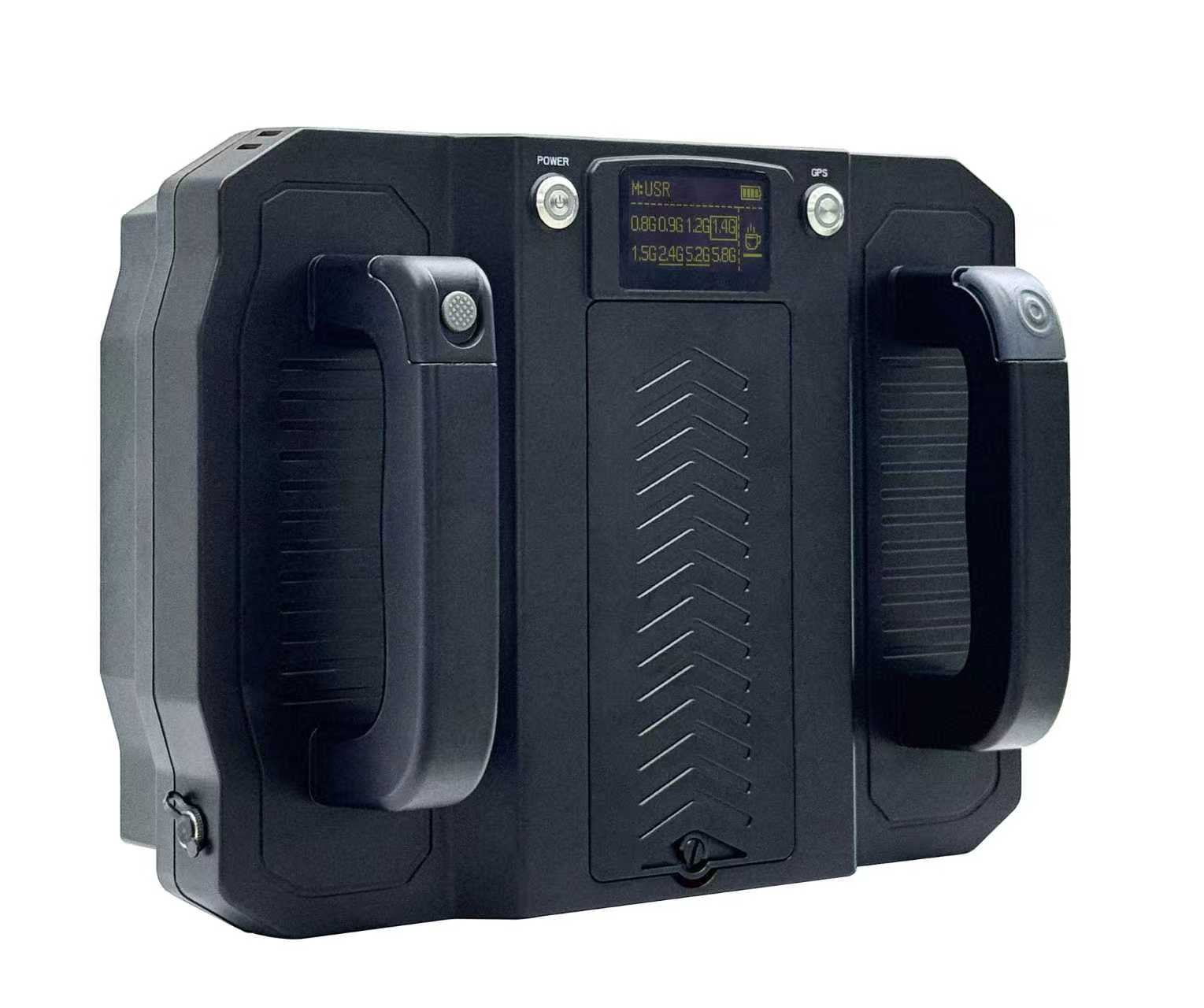

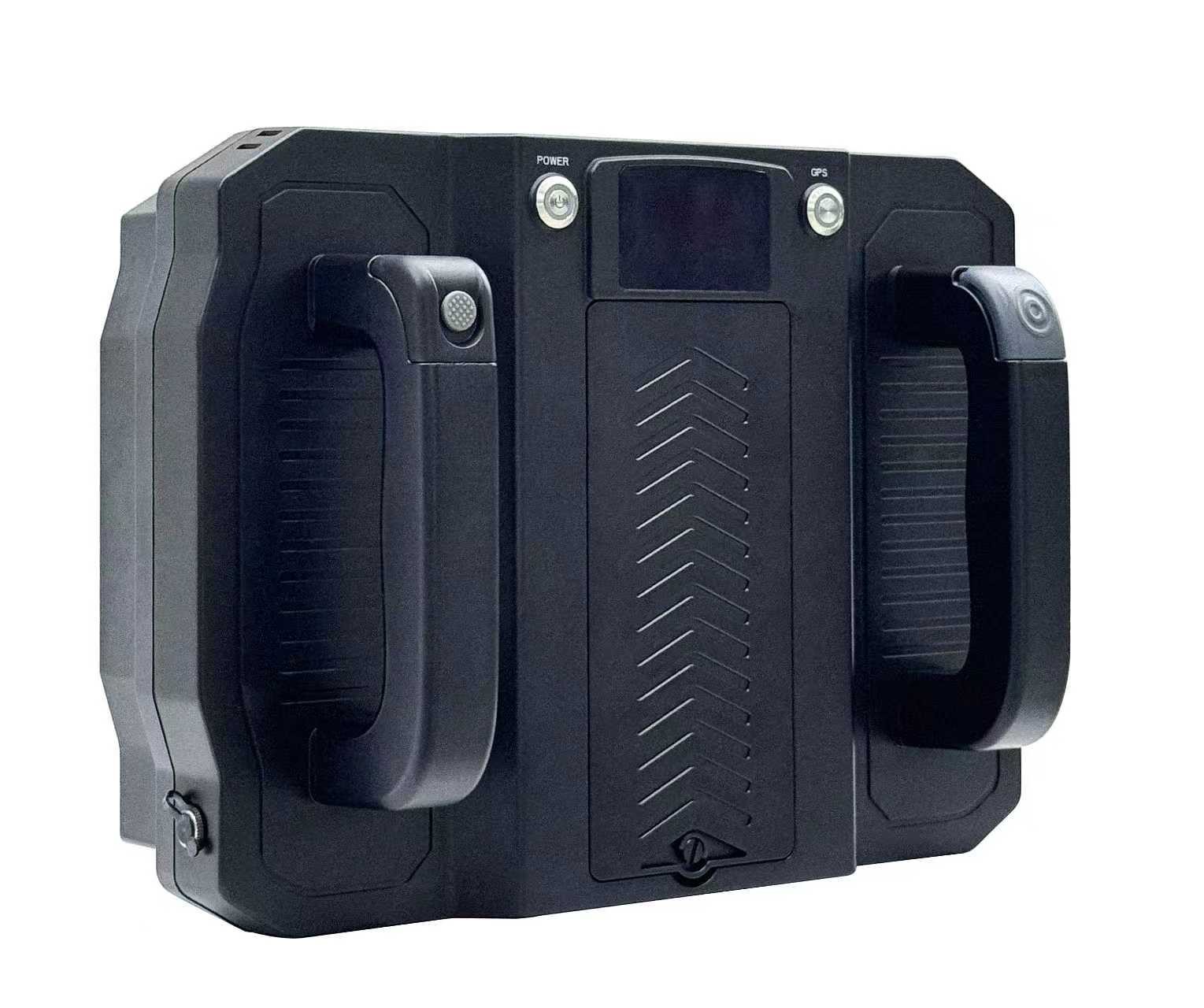

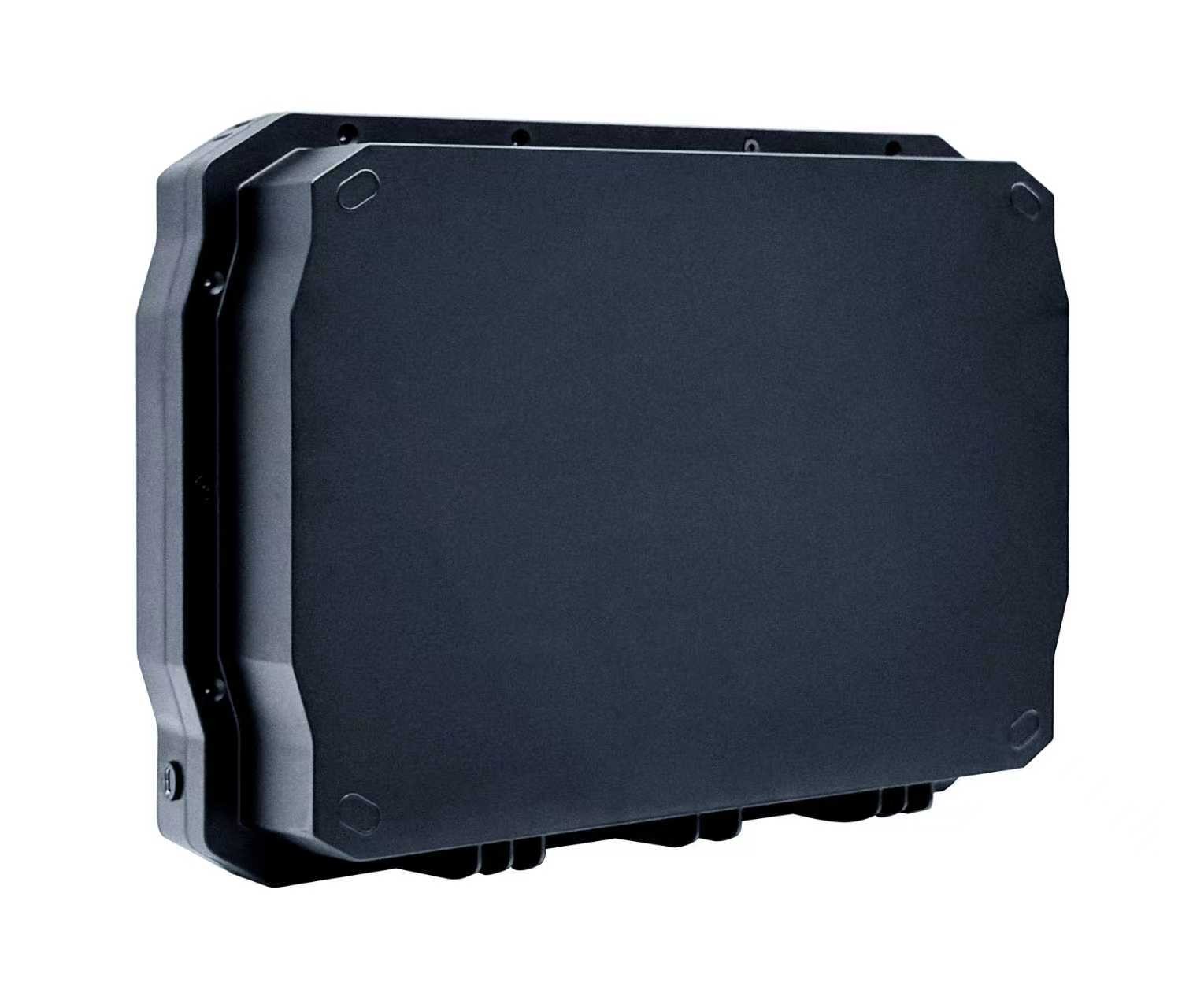

Based on SDR jamming technology. Portable Counter-UAV Shield supports different frequency-band configurations and can effectively block UAV signals such as data/image transmission, remote control, navigation, etc., especially for various FPV drones with good countermeasures. Overall flexible and portable, it adopts an IP54 level ultra durable shell, which is heat-resistant and corrosion-resistant. It can be quickly deployed in various scenarios such as counter-terrorism, important activities security protection, and base protection.
Technical Specifications
Jamming Unit | |
Jamming Mechanism | SDR (Software Defined Radio) |
Jamming Frequency Bands | 800~900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
Defense Direction | Directional jamming |
Jamming Distance | FPV drones: ≥1km (jamming/communication ratio = 1:1) |
Total Transmission Power | <140W |
Basic Information | |
Size | 380mm*270mm*155mm |
Weight | < 5.5kg (Host with battery pack) |
Power Supply / Charging | Powered by lithium battery pack; supports battery pack replacement and full-device charging |
Power Consumption | <350W (full power transmission) |
Protection Level | IP54 |
Working Temperature | -30℃~ +45℃ |
Working Humidity | No more than 93%, no condensation water |
Storage Temperature | -40℃~ +70℃ |
