YH-A29 AT616 Handheld Uav Detector

Direction-Finding Frequency Band:2.4GHz / 5.1~6.0GHz
Direction-Finding Directio:360° Omnidirectional
Multi-Target Detectio:≥ 10 Drones
Direction-Finding Accuracy:< 10°
Display ( Optional ):6.5-Inch Touch LCD Screen
Single Battery Life:≥ 3h
Size(Handheld Host):184*91*34mm ( Without Antennas )
Direction-Finding Unit:110*110*80mm
Weight(Handheld Host):< 800g
Weight(Direction-Finding Unit):350g
Transport Package:Cardboard Box

INQUIRY made-in-china

Product Description:

Overview

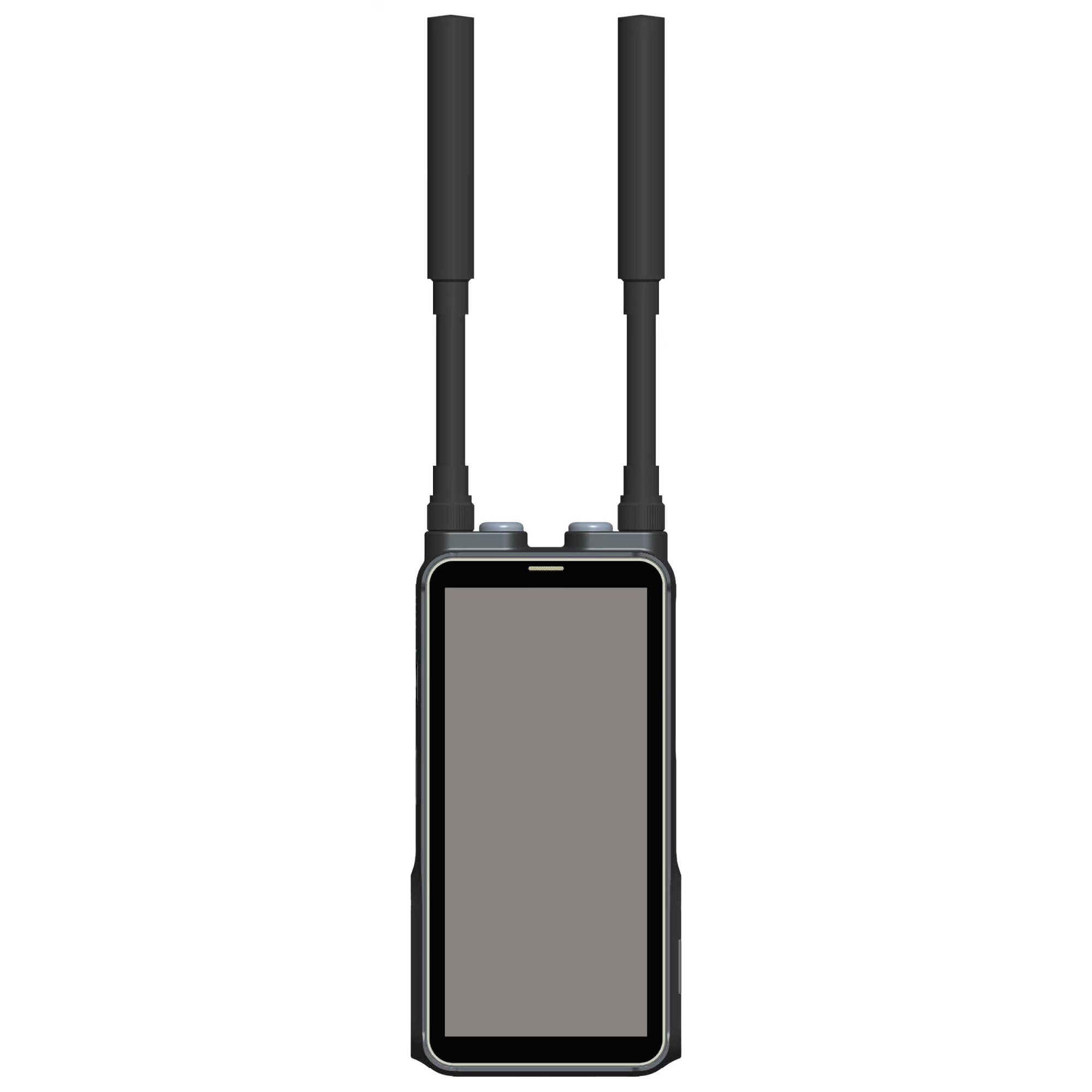

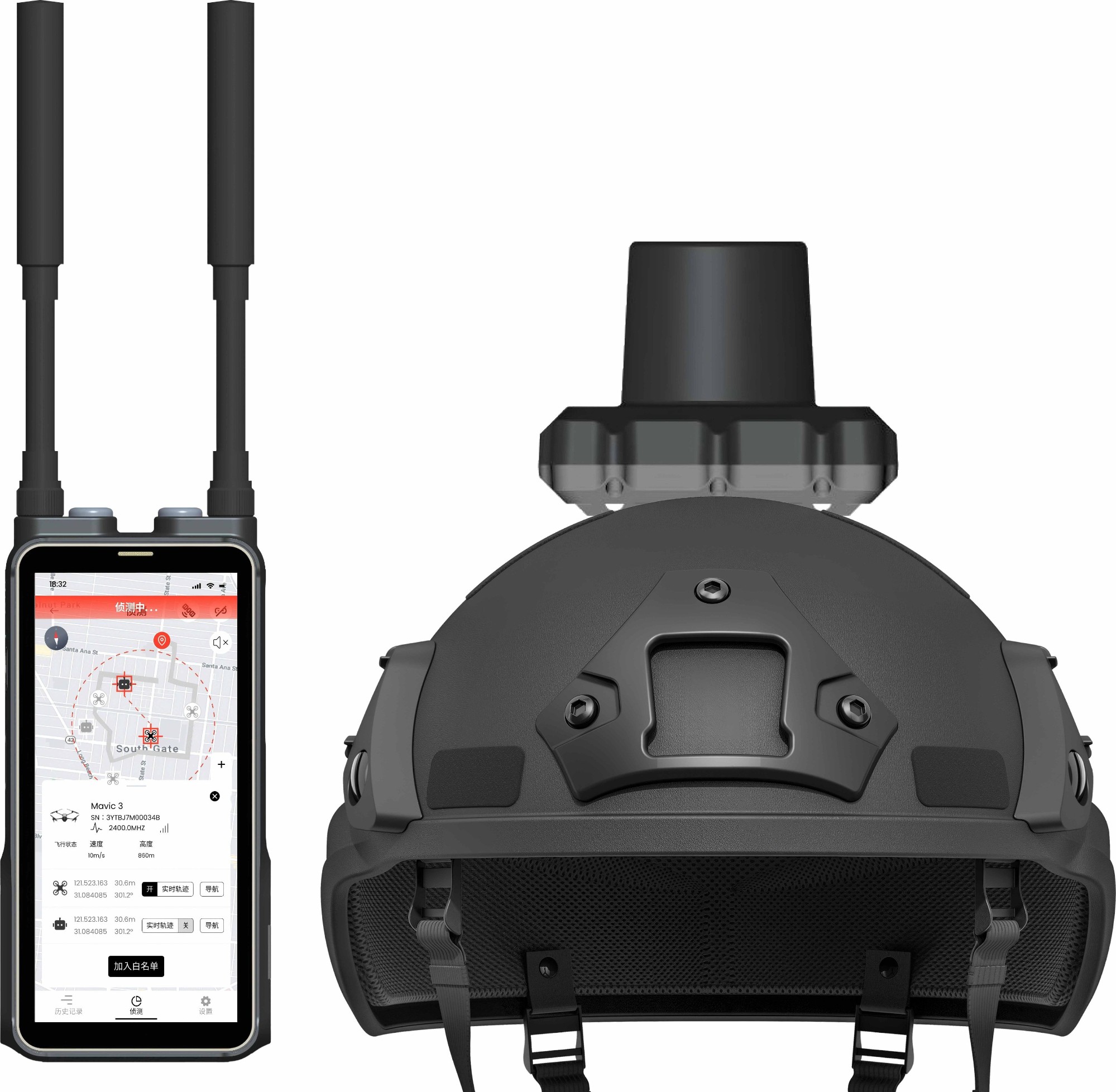

Designed for individual combat operations, the detector utilizes passive detection technology to provide 360° real-time monitoring, identification, and alerting for both DIY FPV drones and conventional UAVs. Equipped with high-precision phase-comparison direction finding, a single set can determine drone bearings. Its modular design consists of a handheld detection unit with 6.5-inch touchscreen (displaying target details, operator location, offline maps, and trajectory replay) and a helmet-mounted direction-finding module.

Technical Specifications

Detection Unit		Direction-finding Uni
Detection band	300MHz~6000MHz	Direction-finding frequency band	2.4GHz / 5.1~6.0GHz
Detection models	DIY FPV drones ( ELRS/TBS Crossfire and other protocols ) / Conventional drones ( DJI / Autel, etc. ) / WiFi-based drones, etc.	Direction-finding direction	360° omnidirectional
Detection data	For DJI O3 & RID-compliant drones:Model, serial number, frequency, signal strength, GPS coordinates, distance, direction, speed, altitude, operator location, etc. For Autel/DIY FPV/WiFi drones: Drone type, frequency, signal strength, direction, etc.	Multi-target detection	≥ 10 drones ( priority-sorted by signal strength )
Detection range	≥ 3km ( open environment ) ≥ 1km ( urban environment )	Direction-finding accuracy	< 10°
