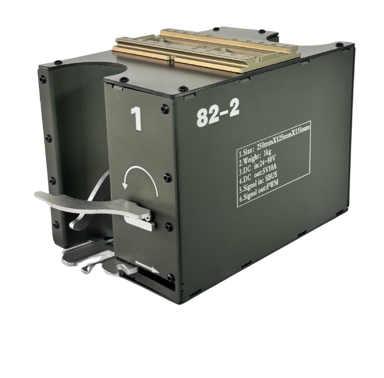

Yh-G21 Hy-82-2mm Drone Mounted Launcher Device

External dimensions

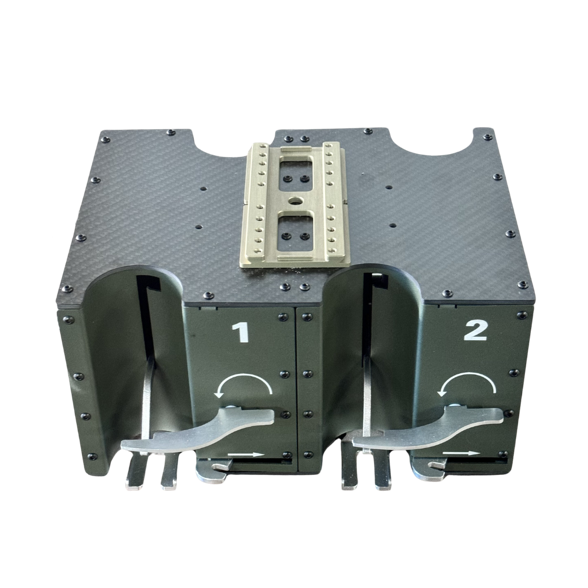

250 x 125 x 135mm/2 rounds

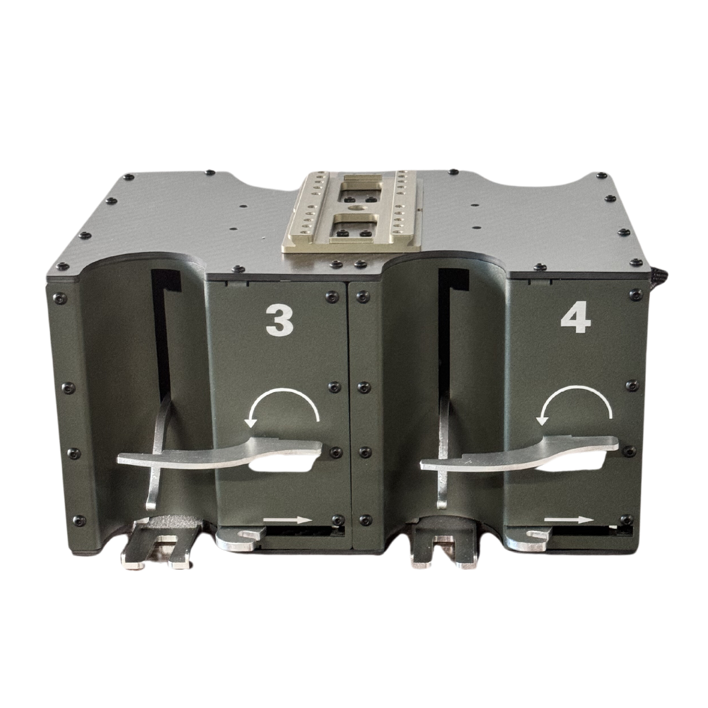

250 x 250 x 135mm/ 4 rounds
375 x 250 x 135mm/ 6 rounds

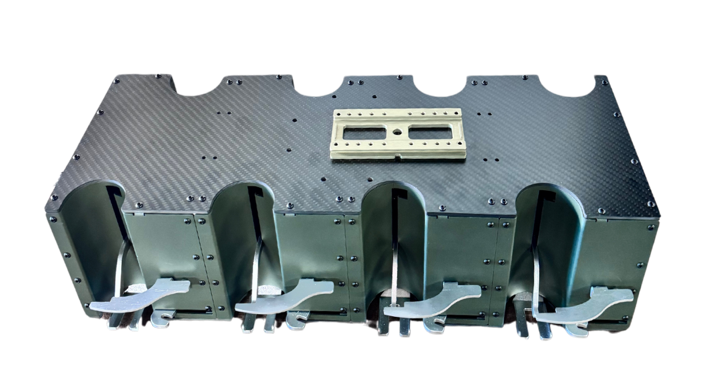

500 x 250 x 135mm/ 8 rounds
625 x 250 x 135mm// 10 rounds

Working voltage

DC 12-80V

Net weight

82-2       0.8kg
82-4       1.5kg
82-6       2.5kg

Signal mode

SBUS/PWM/TTL

Material

Aviation aluminum, carbon fiber, 304 stainless steel

Throwing accuracy

1-3 meters

Installation method

Impact locking from bottom to top

Control distance

5 - 10KM

Throwing mode

Automatic single-shot or full throw

Expansion options

2, 4, 6 rounds

Throwing control

One channel for safety lock and another for throwing

Safety lock

Built-in safety unlock

Loading capacity

2-10 rounds

Functions

Quick throwing, sensitive and rapid response, safe and reliable, centralized control circuit, compatible with multiple signal protocols

Power supply mode

Onboard power
