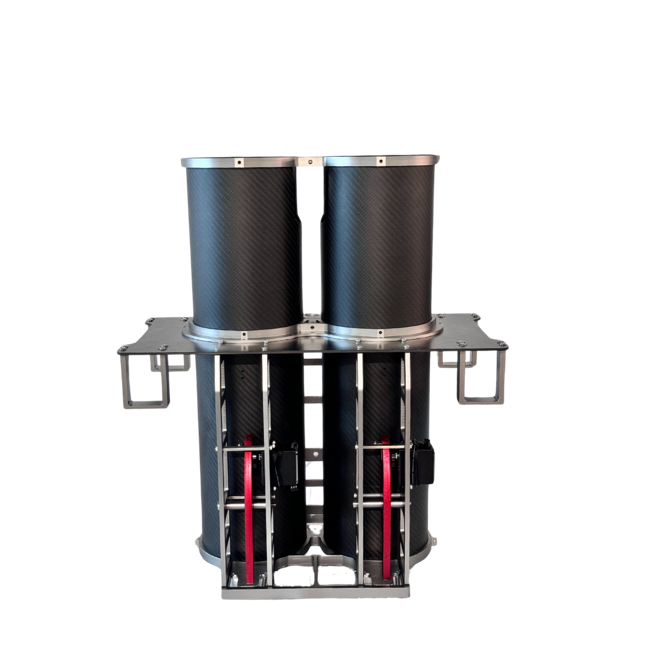

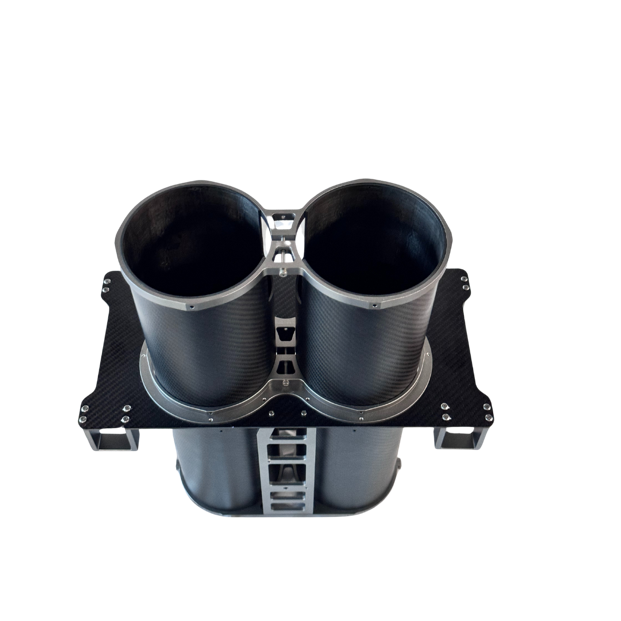

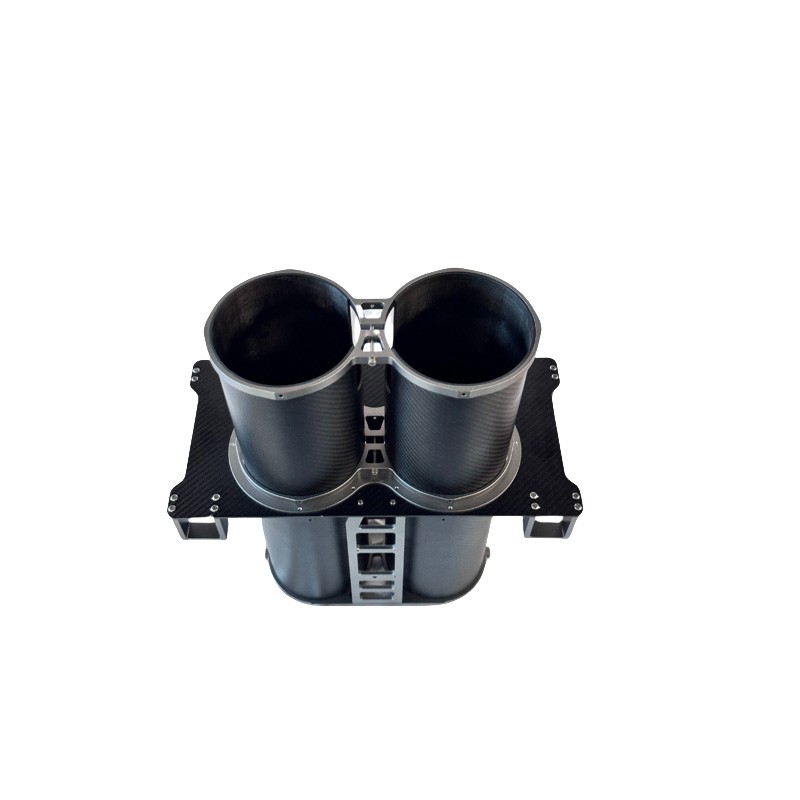

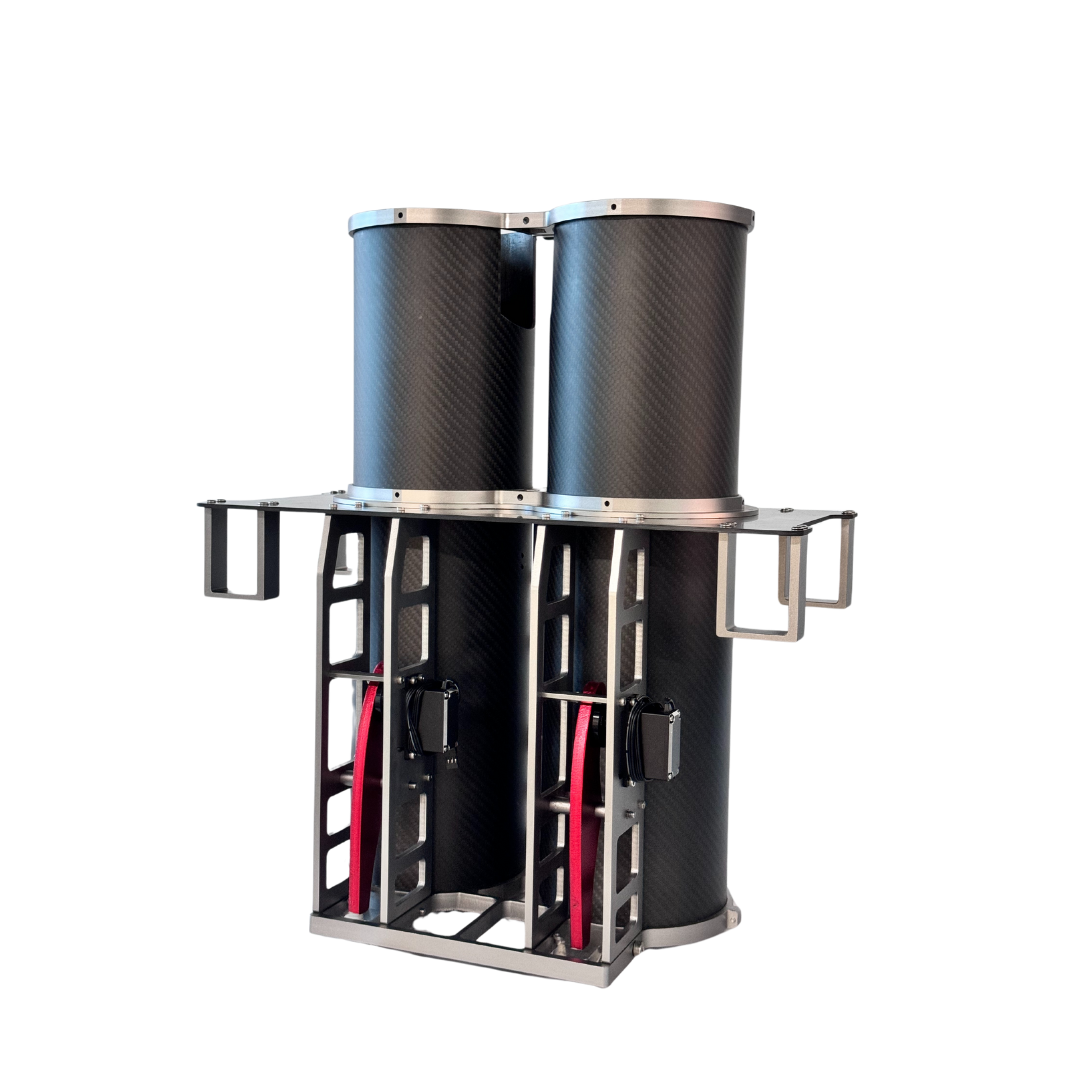

Yh-G22 Hy-120mm Thrower Uav Mount Device

External dimensions

415x200x480mm

Working voltage

DC 12-80V

Net weight

4.6kg

Signal mode

SBUS/PWM/TTL

Material

Aviation aluminum, carbon fiber, 304 stainless steel

Throwing accuracy

1-3 meters

Installation method

Impact locking from bottom to top

Control distance

5 - 10KM

Throwing mode

Automatic single-shot or full throw

Expansion options

2, 4, 6 rounds

Throwing control

One channel for safety lock and another for throwing

Safety lock

Built-in safety unlock

Loading capacity

2-6 rounds

Functions

Quick throwing, sensitive and rapid response, safe and reliable, centralized control circuit, compatible with multiple signal protocols

Power supply mode

Onboard power
