Product Description
Overview

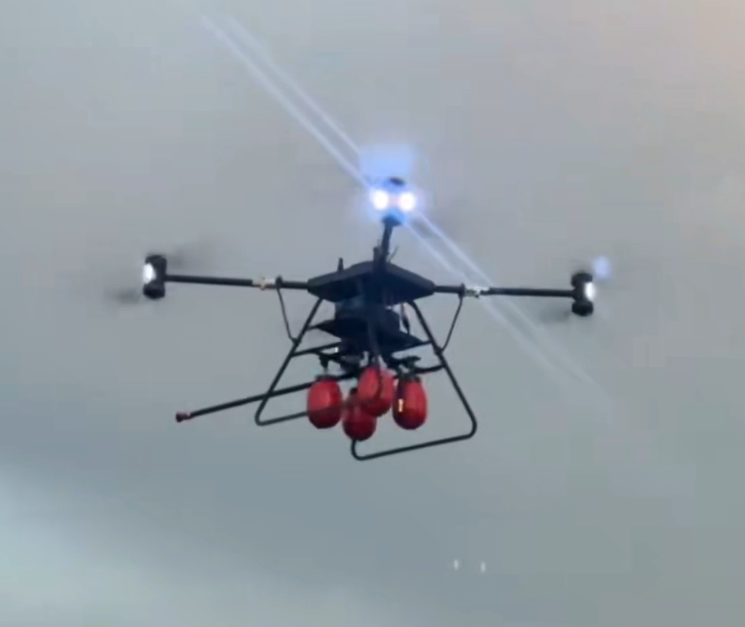

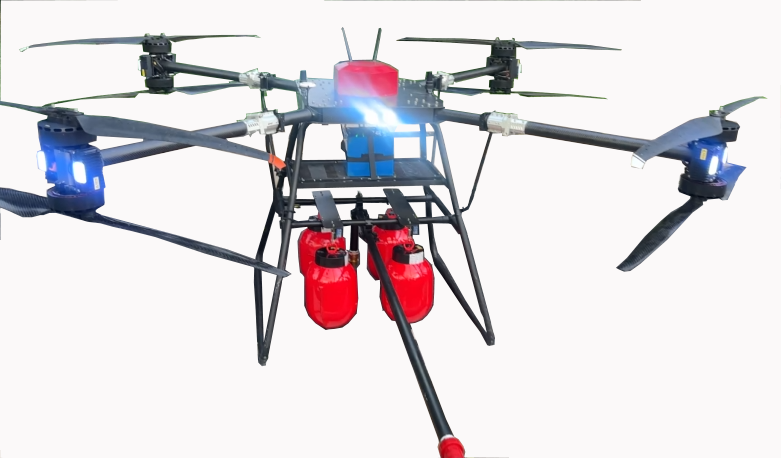

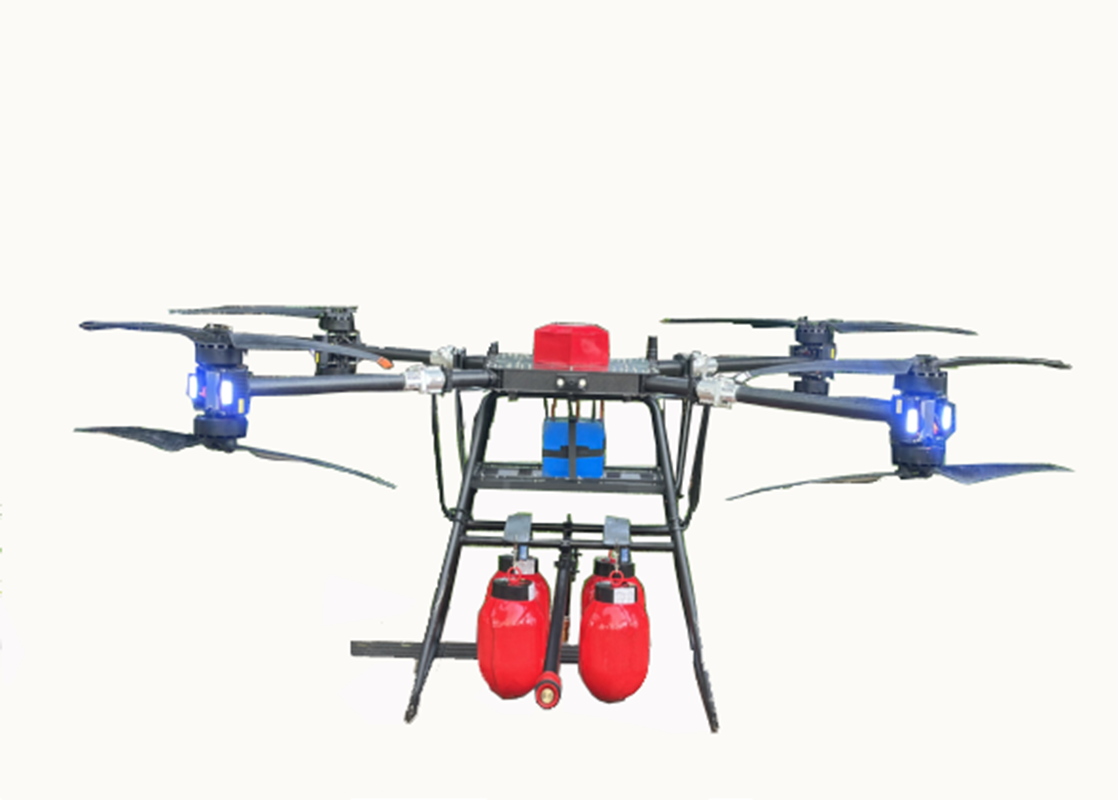

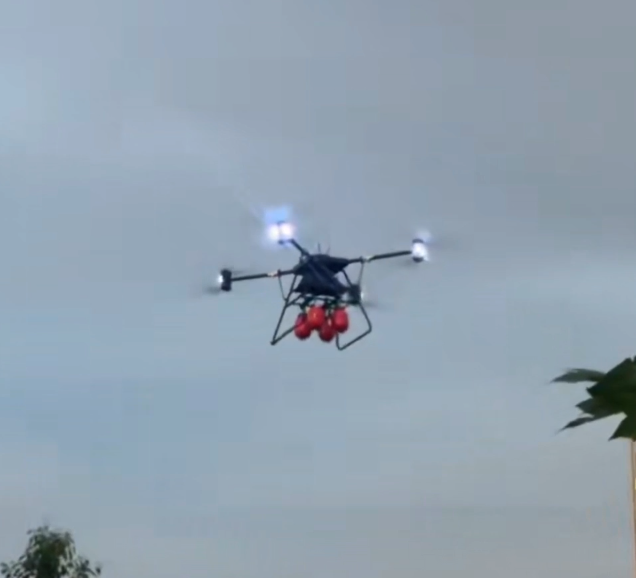

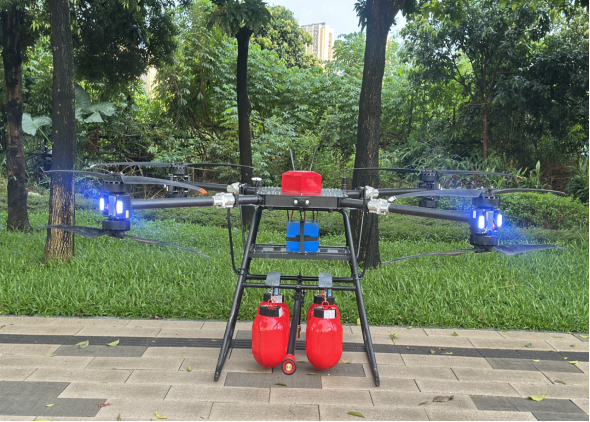

The Yh-C30 Xf100 is a firefighting drone engineered for powerful aerial intervention. It boasts a 280kg maximum take-off weight, enabling a substantial payload capacity for fire suppressants. With an operational flight altitude of up to 3000 meters, it is capable of tackling challenging fire scenarios. The drone offers an effective battery life of 12 to 65 minutes (depending on load), ensuring critical mission time. For rapid deployment and transport, it folds down to a compact 1680 mm* 1320 mm* 1200 mm.
Detailed technical parameters
Body material; | High strength composite carbon fiber | Body wheelbase size | 2880 mm |
Collapse folding size; | 1680 mm* 1320 mm* 1200 mm | Total weight of the device (including battery) | 100kg empty; 55kg |
maximum take-off weight | 280 kg | Maximum lifting safety load; Rated lifting effective load | 140kg (flight time reduced) 100kg (recommended payload) |
maximum flying speed | S mode; 21m/s | 140 kg maximum payload endurance 100 kg rated payload endurance 50 kg power-saving load during flight | ≥12-65 minutes (front full, rear empty) |
battery capacity | 15kw/h | Airborne avionics | Military-grade three-axis redundant system |
Flight hover accuracy | 0.1m | Maximum wind resistance | ≥6 on the Beaufort scale (or ≥8 on the Beaufort scale) |
Emergency obstacle avoidance capability | Radar + Vision + ElectronicFence | Distance of remote control for integrated data and graphics | 30 km (open and no interference) |
Pan-tilt freedom | 360° | Camera resolution | 1080P |
Mission altitude | 20 to 1200 meters | A multi-purpose excuse | Fire/Transport/Lifting Support |
operating ambient temperature | -20 to 65 degrees | Waterproof, dustproof grade | IP68 (light rain) |
