Overview

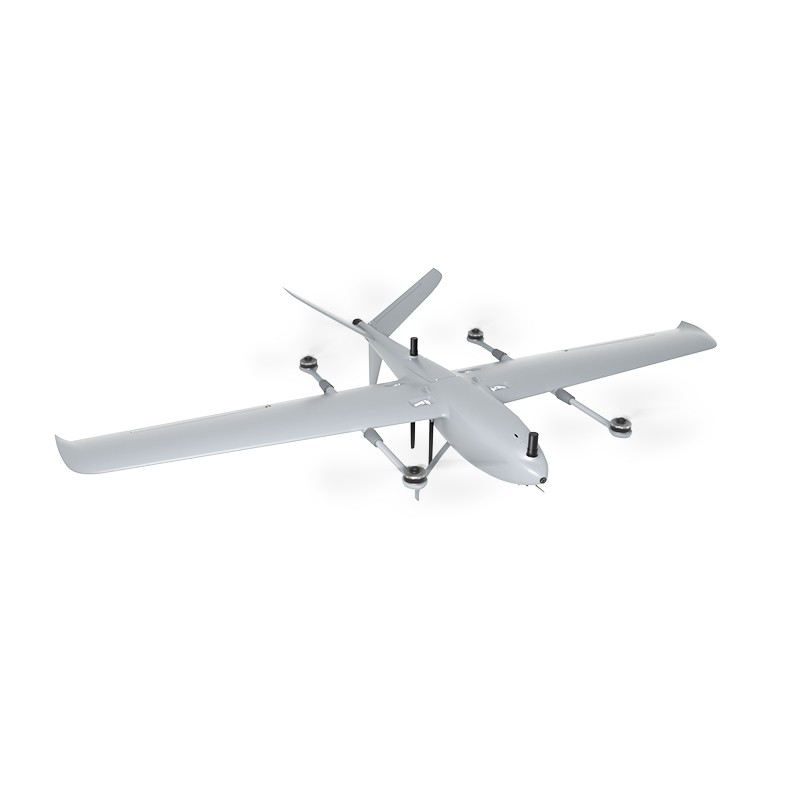

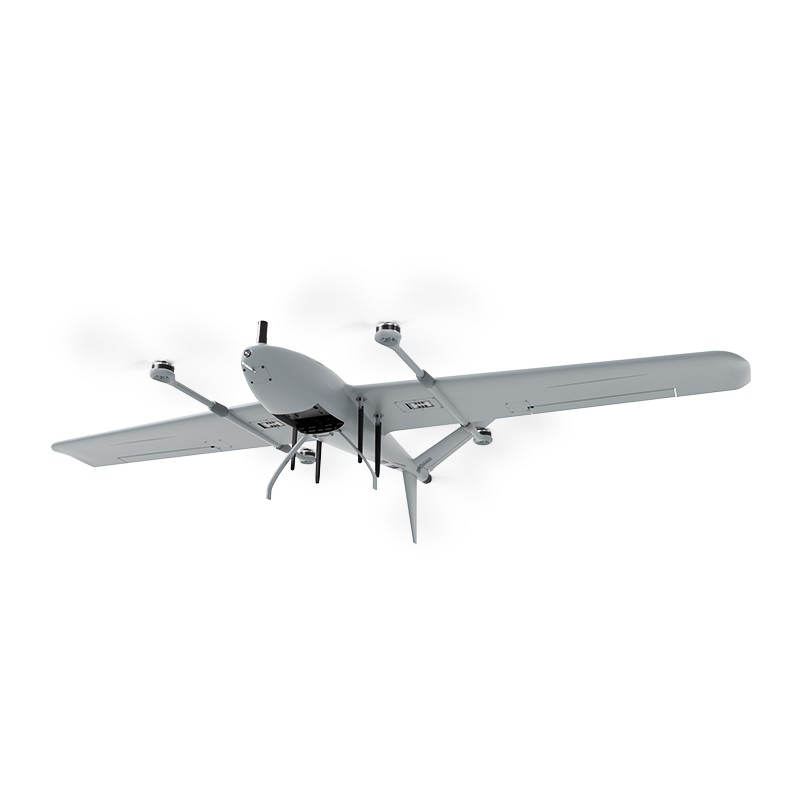

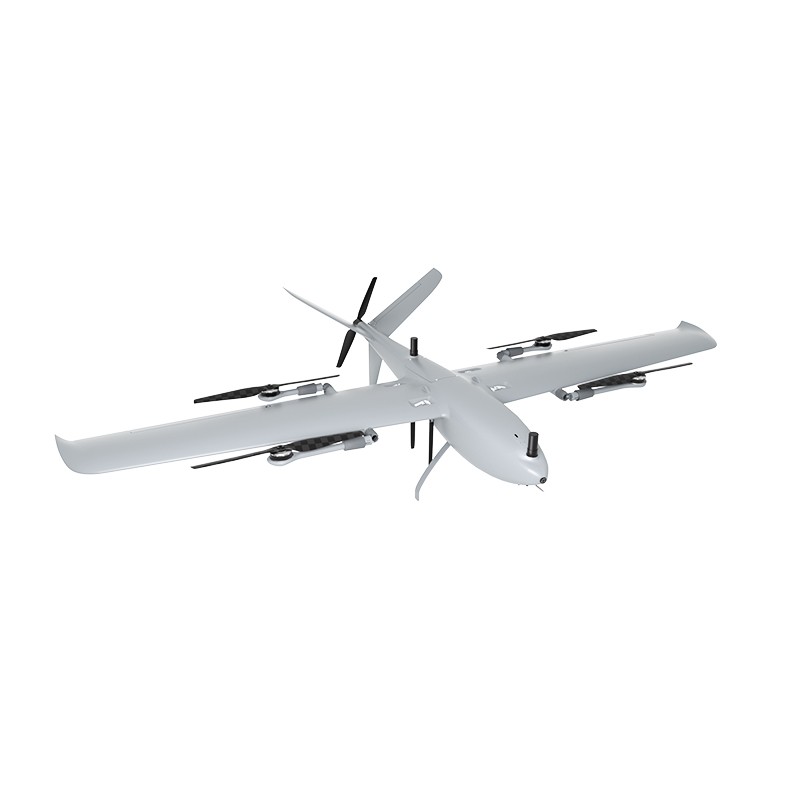

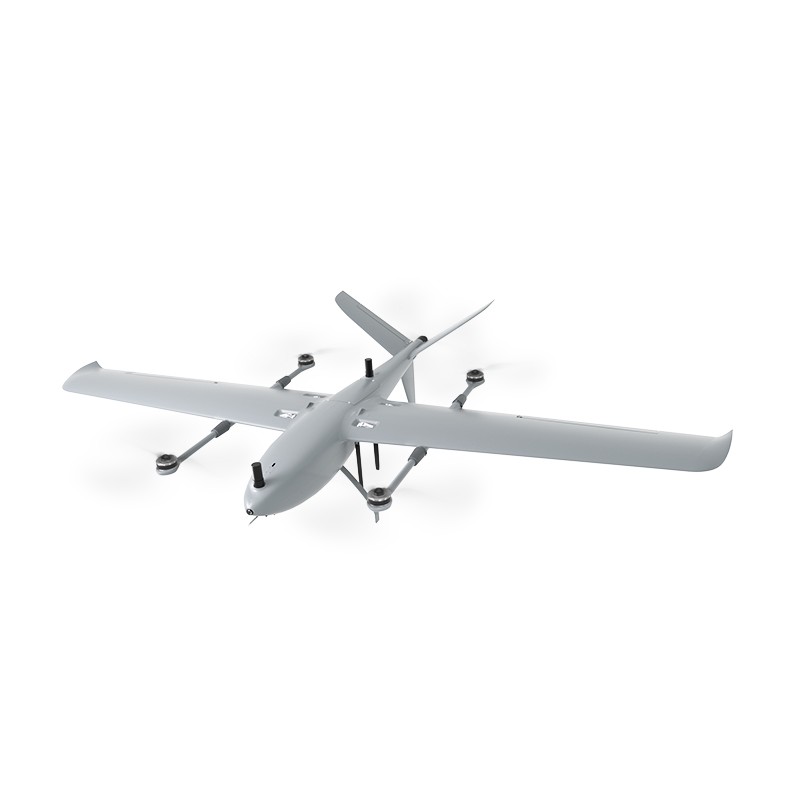

V2200 adopts advanced modular design, providing users with one-step service under different application scenarios. The core components are

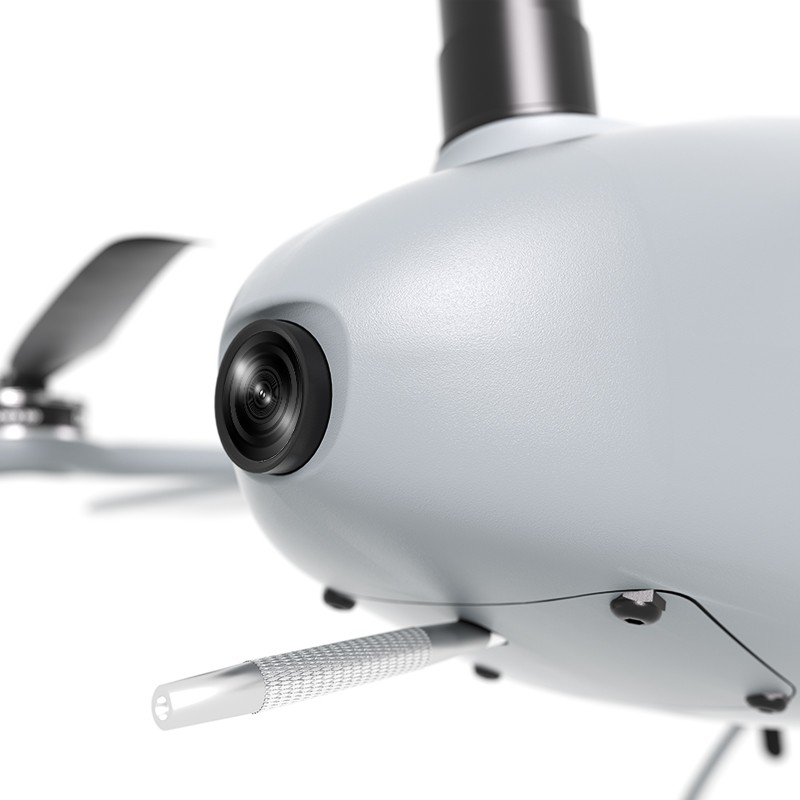

partitioned and integrated. Optical pods, link system, flight controller, propulsion system,frame,internal components,etc,are all modularly designed, which is convenient for disassembly and replacement. Users can quickly do maintenance or upgrades,effectively reducing after-sales costs,making operation easier and more worry-free.
Technical Specifications
| Body specifications | |
| Body material | Glass fiber, carbon fiber, engineering plastics, aviation aluminum alloys, etc |
| Quick disassembly method of the machine body | Quick disassembly without screws |
| Expanded dimensions (including blades) | L2200mm*W1280mm*H460mm |
| Motor diagonal shaft distance | 1020mm |
| Packaging form | Aviation aluminum box |
| Power system | |
| Multi-rotor motor model | 5008 400kv |
| Multirotor propeller size | 18x6.5 |
| Multi-rotor ESC model | 2in1 60A |
| Fixed-wing motor model | 3530/445kv |
| Fixed-wing propeller model | 15x10 |
| Fixed-wing ESC model | 100A |
| Remote control image transmission parameters | |||
| Display | 7-inch touch LCD screen, 1080P, 1600 nit brightness | Wi-Fi protocol | WIFI5 |
| weight | 1.46 kilograms | Operating frequency | 2.400 GHz - 2.476 GHz 5.725 GHz - 5.829 GHz |
| GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS | Bluetooth (Android) Protocol | BT 5.0 |
| Built-in battery capacity | 13400mAh | Storage | 4GB + 64GB |
| Battery life | Approximately 8 hours | Effective transmission distance | 30 - 40 km (measured in a flight environment with no obstructions and minimal interference at an altitude of less than 120 meters.) |
| Degree of protection | IP54 | Antenna | 2 foldable detachable antennas + 2 built-in antennas |
| Physical channels | Buttons * 16, large joysticks * 2, small joystick * 1, rotary dials * 2, three-position switches * 2 | Charging time: approximately | 4.5 hours |
| Charging method | Standard fast charging, maximum charging power 30W |
