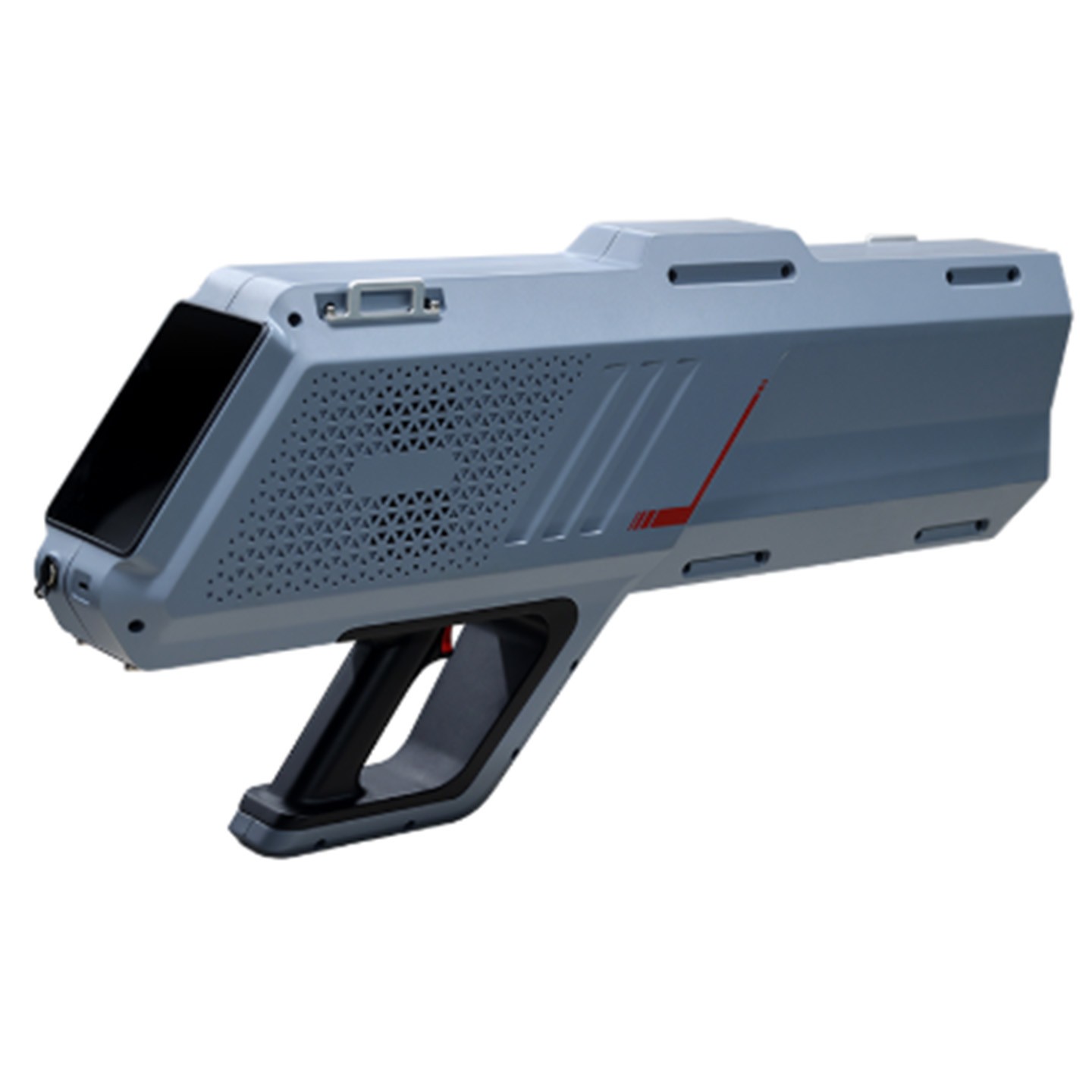

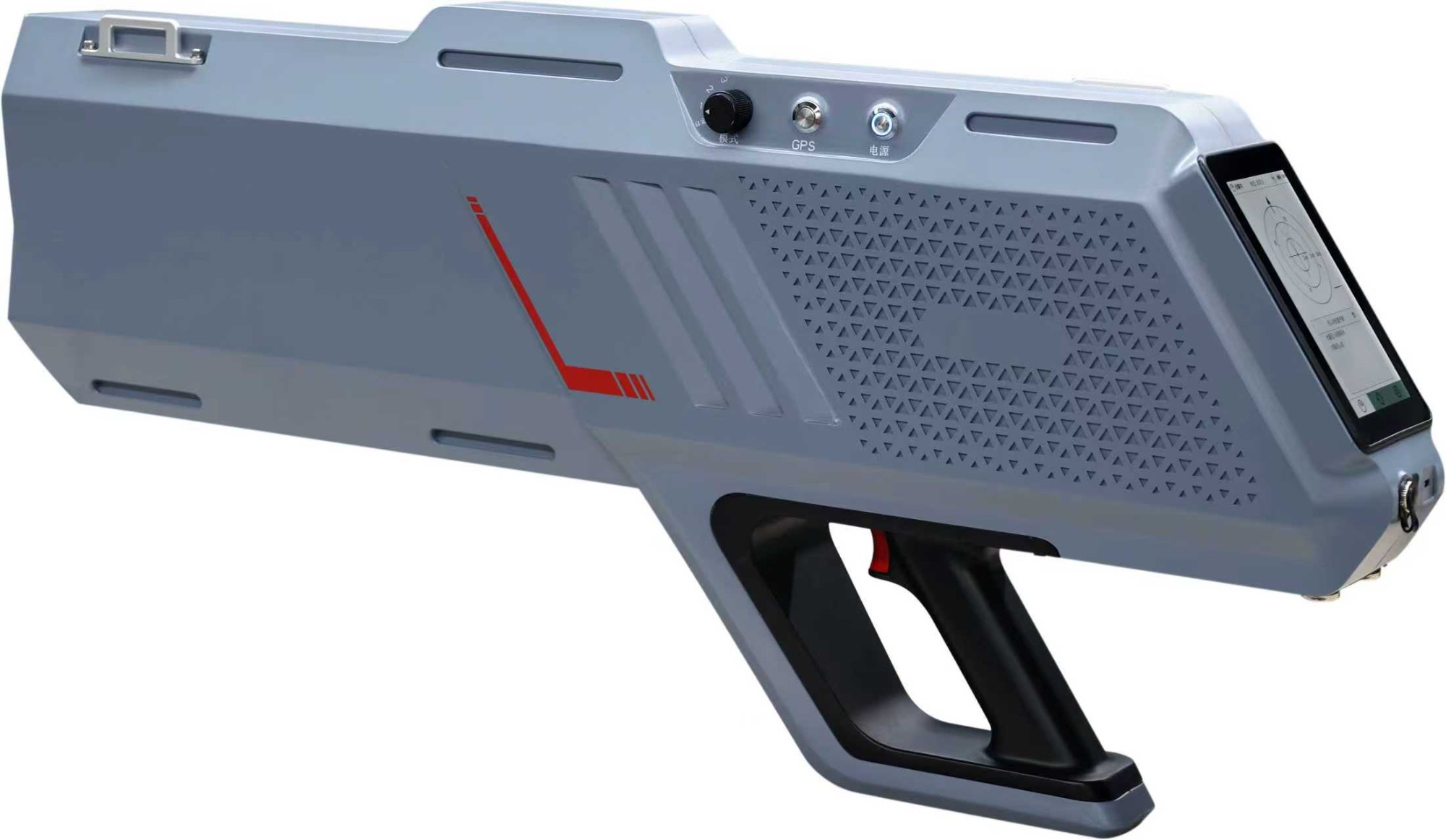

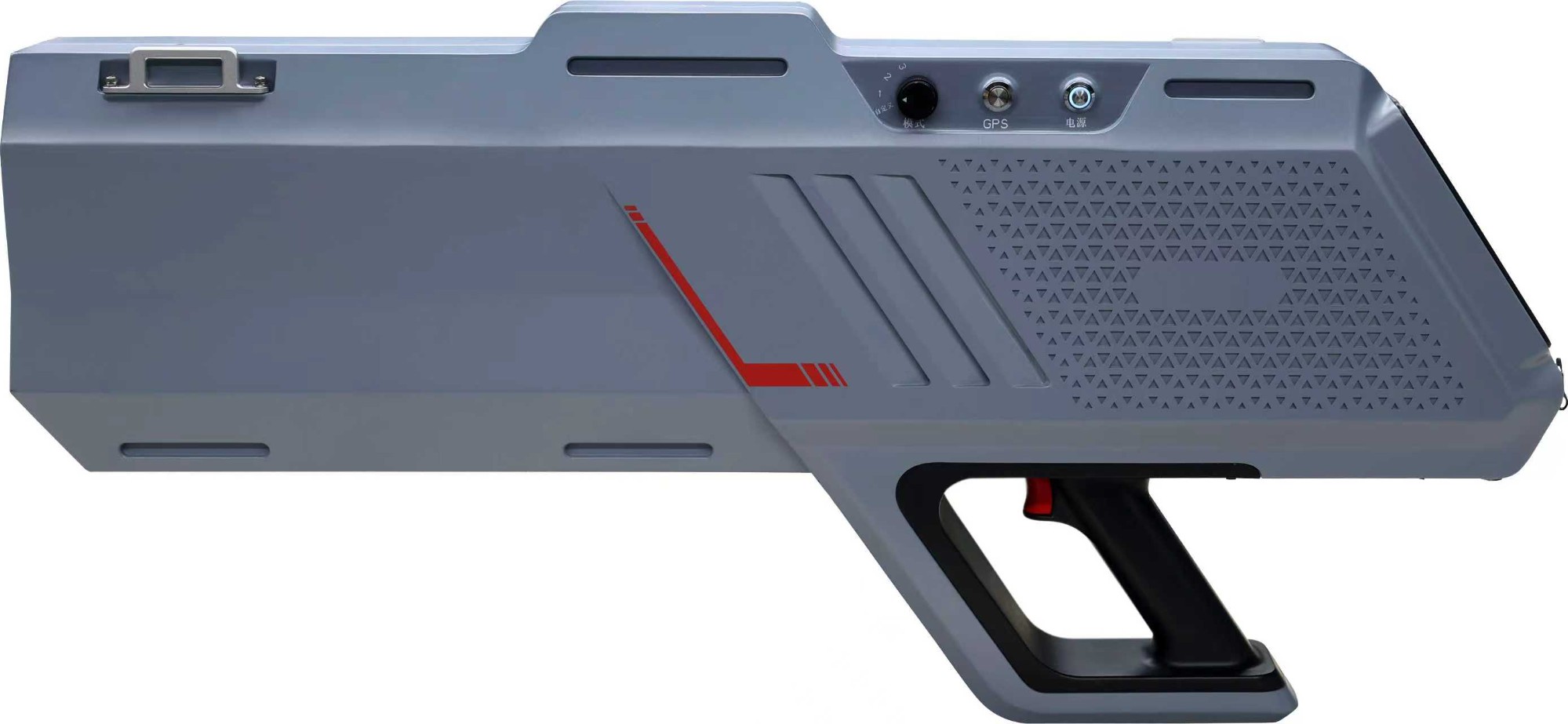

Yh-A30 at-605 Portable Counter-Uav Equipment

1.Overview

The design of the detection and countermeasure system is all-in-one, with no need for additional parts, making it flexible and convenient for individuals to carry. It has the capability to support omni-directional detection up to 3km and directional interference up to 2km for all types of common UAVs in the surrounding airspace.

This system is equipped with SDR technology and a visual auxiliary aiming system, allowing it to detect, locate, and identify UAVs at 360°. In addition, it can perform comprehensive suppression measures, forcing the UAV to hover, return, or descend. The integration of these features makes this system highly effective in countering unauthorized UAV activities and ensuring airspace security.

2.Product Feature

1)All-in-one Design

No external parts, easy to carry for individual soldiers, ready to use after power-on

2)Integrated

3km omni-directional detection and 2km directional countermeasure

3)SDR Efficient Interference

Using digital modulation interference source, can interfere with various types of UAVs

4)Multi-Frequency Interference

Based on SDR architecture, support multi-channel interference, covering common UAV frequency bands both domestically and internationally

5)Visual Positioning

Equipped with a visual auxiliary aiming system and a 5-inch display screen, which supports real-time display of target information, positioning and aiming of target positions, etc.

6)Investment Protection

Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement.

3.Technical Specification
