Overview

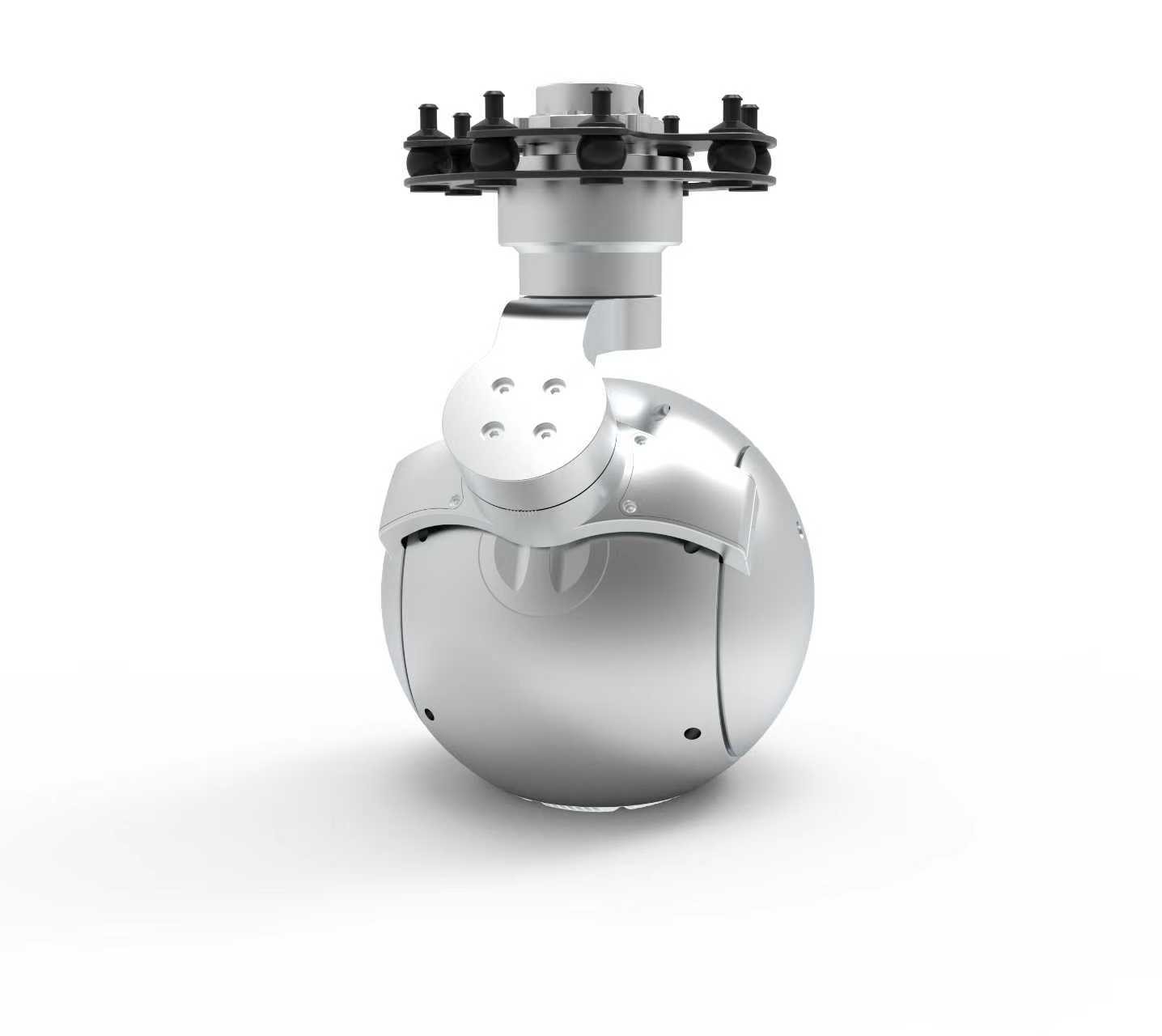

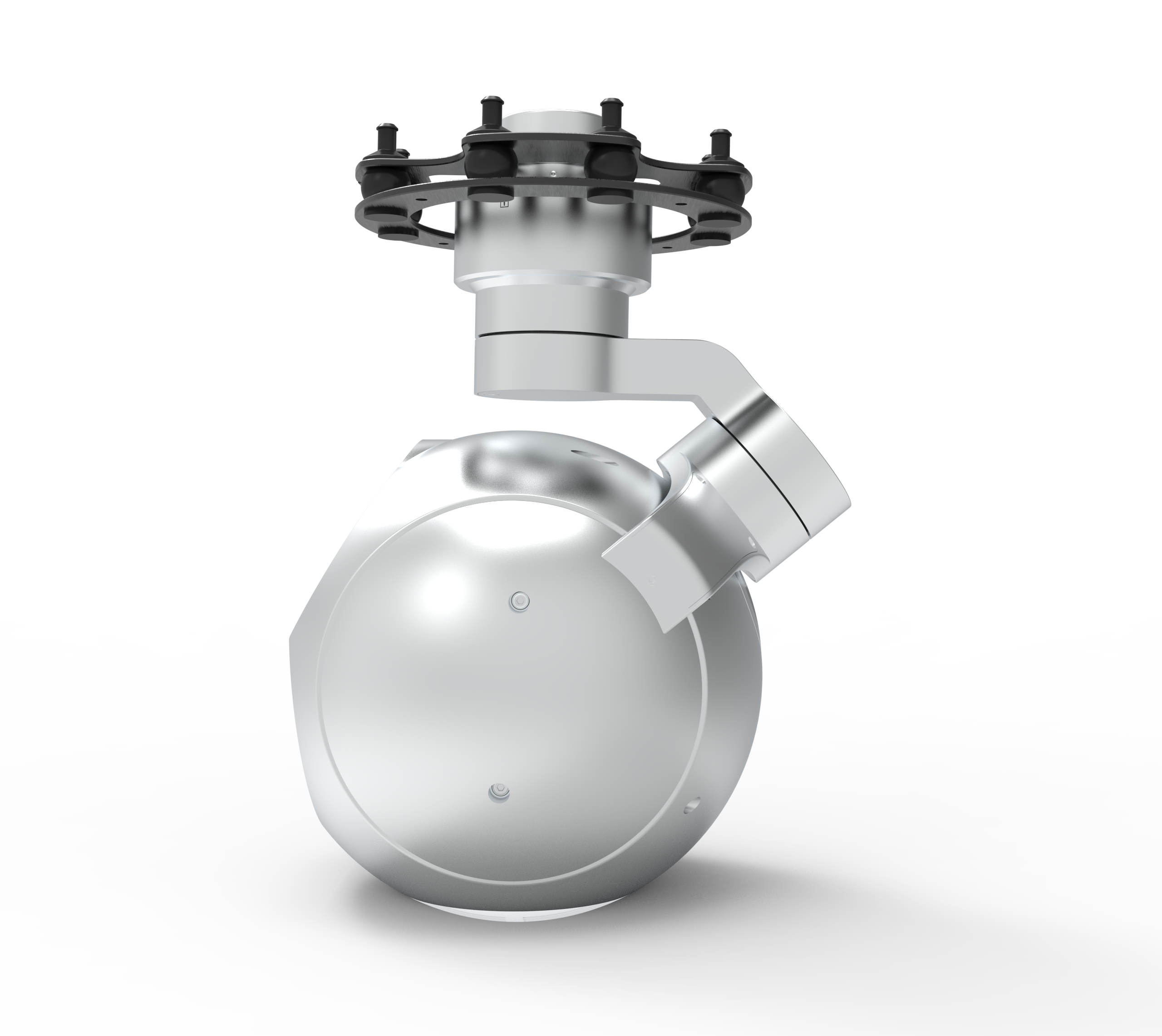

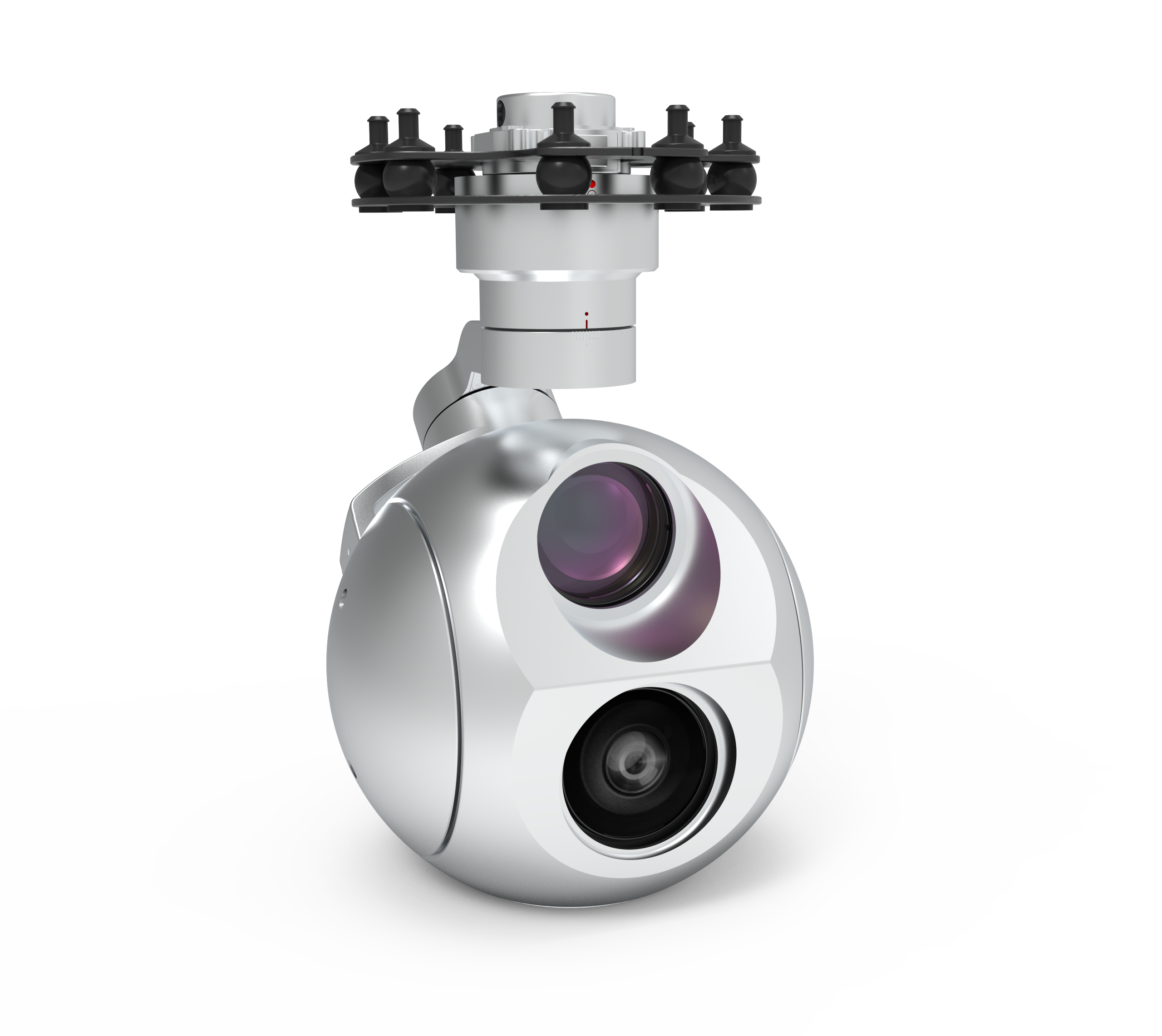

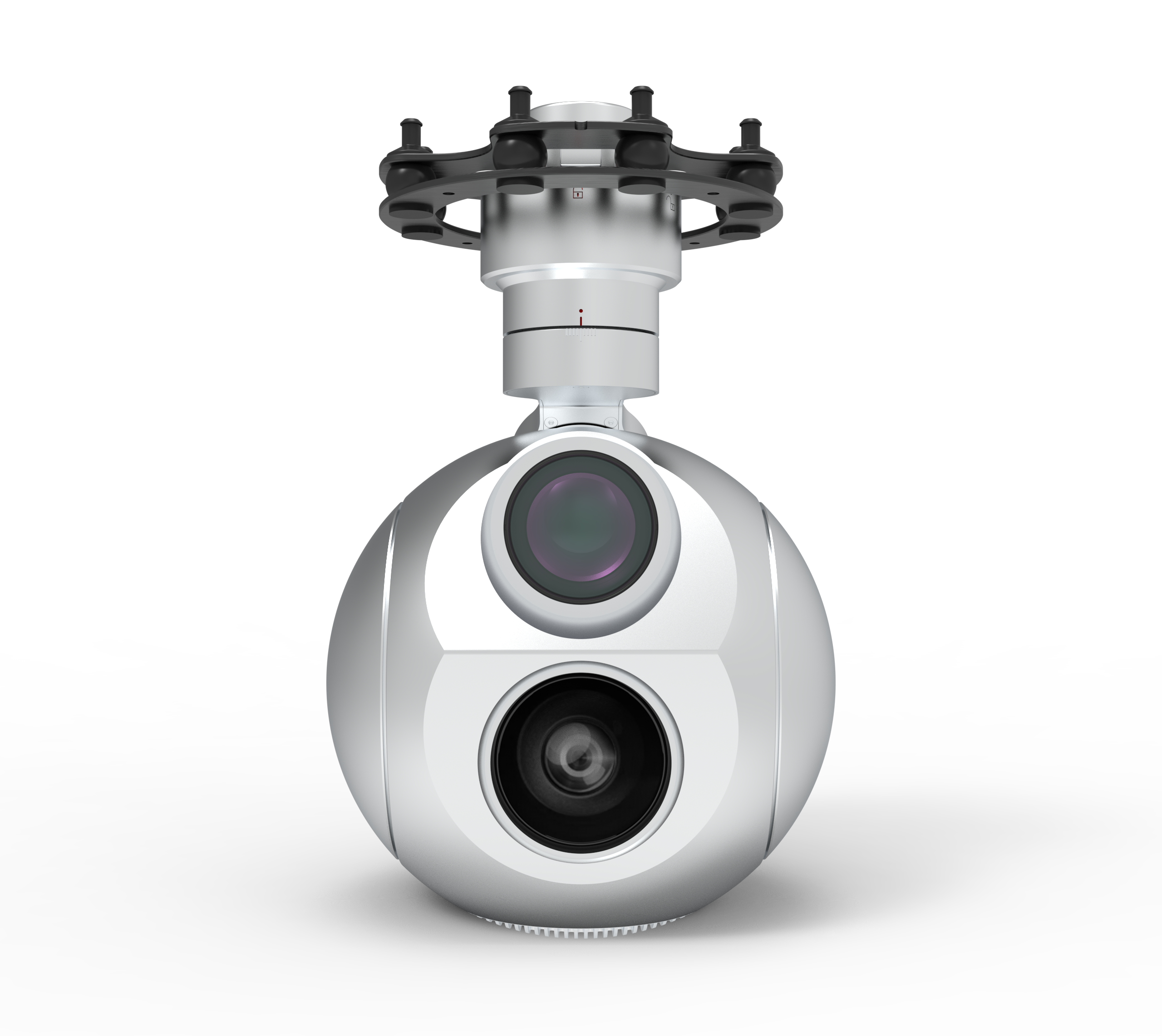

The L40T three-axis gyro-stabilized dual-optical pan-tilt adopts a miniaturized and lightweight industrial design. It is equipped with a 40x continuous optical zoom visible light camera, a long-wave uncooled infrared imaging component, an anti-delay module, AI target recognition and multi-target tracking crossbar. It is mainly applied in the monitoring fields of imaging, detection, tracking and recognition of ground targets. It meets the needs of line inspection, accident investigation, emergency assistance, law enforcement evidence collection, anti-terrorism and anti-violence, etc.
Technical parameters
Multi-target tracking | Single target tracking | |
Target type | People, vehicles, ships, and airplanes | General goals |
Update frame rate | ≥20FPS | ≥50FPS |
Tracking rate | ≥32 pixels/frame | |
Recall rate | ≥90% | |
Accuracy | ≥80% | |
Minimum target size | 32x32 @1080p | |
Number of tracked targets | ≥20 | |
Tracking jump rate | ≤15% | |
Servo control | ||
Course range | Nx360° | |
Pitch range | -120°-40° | |
Rolling range | ±45° |
Visible light | |||
Operating band | 0.4μm~0.9μm | Field of view | 62.13°x1.73° |
resolution | 1920x1080 | Detection range | People 11.1km, vehicles 20km |
focal length | 4.25mm~170mm | Identification distance | People 2.7 km, vehicles 11km |
Thermal imaging | |||
Working frequency band | 8μm-14μm | Field of view | 12.4 degrees to 9.9° |
Resolution | 640x512 | Detection range | Person: 1.8 km, Vehicle: 4.4 km |
Pixel | 12 microns | Identification distance | Person: 0.4 km, Car: 1.1 km |
Focal length | 35mm/F1.2 |
Power characteristics | |
Power supply range | 11V~28V |
Average power consumption | 20W |
Peak power consumption | 50W |
