Overview

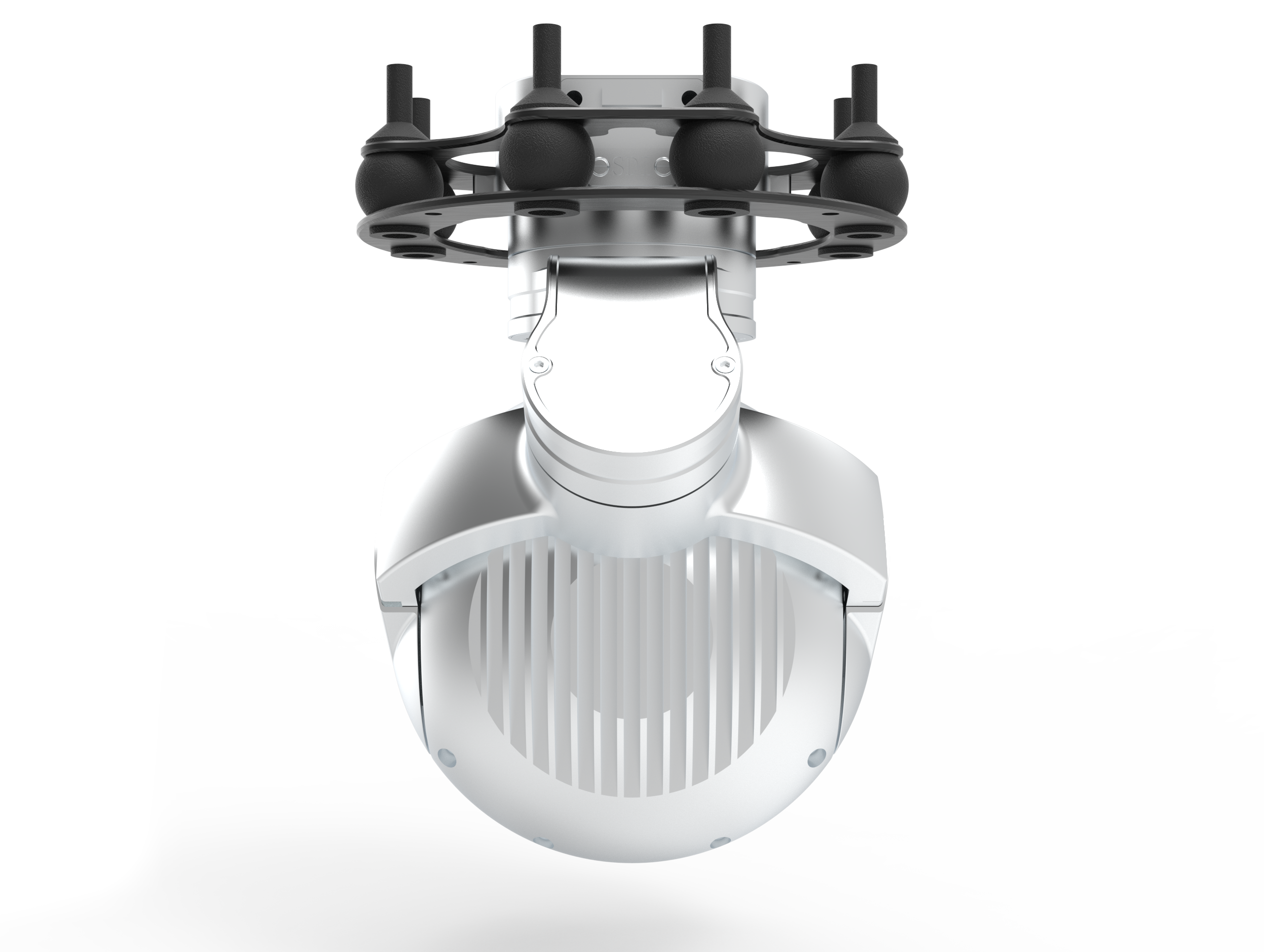

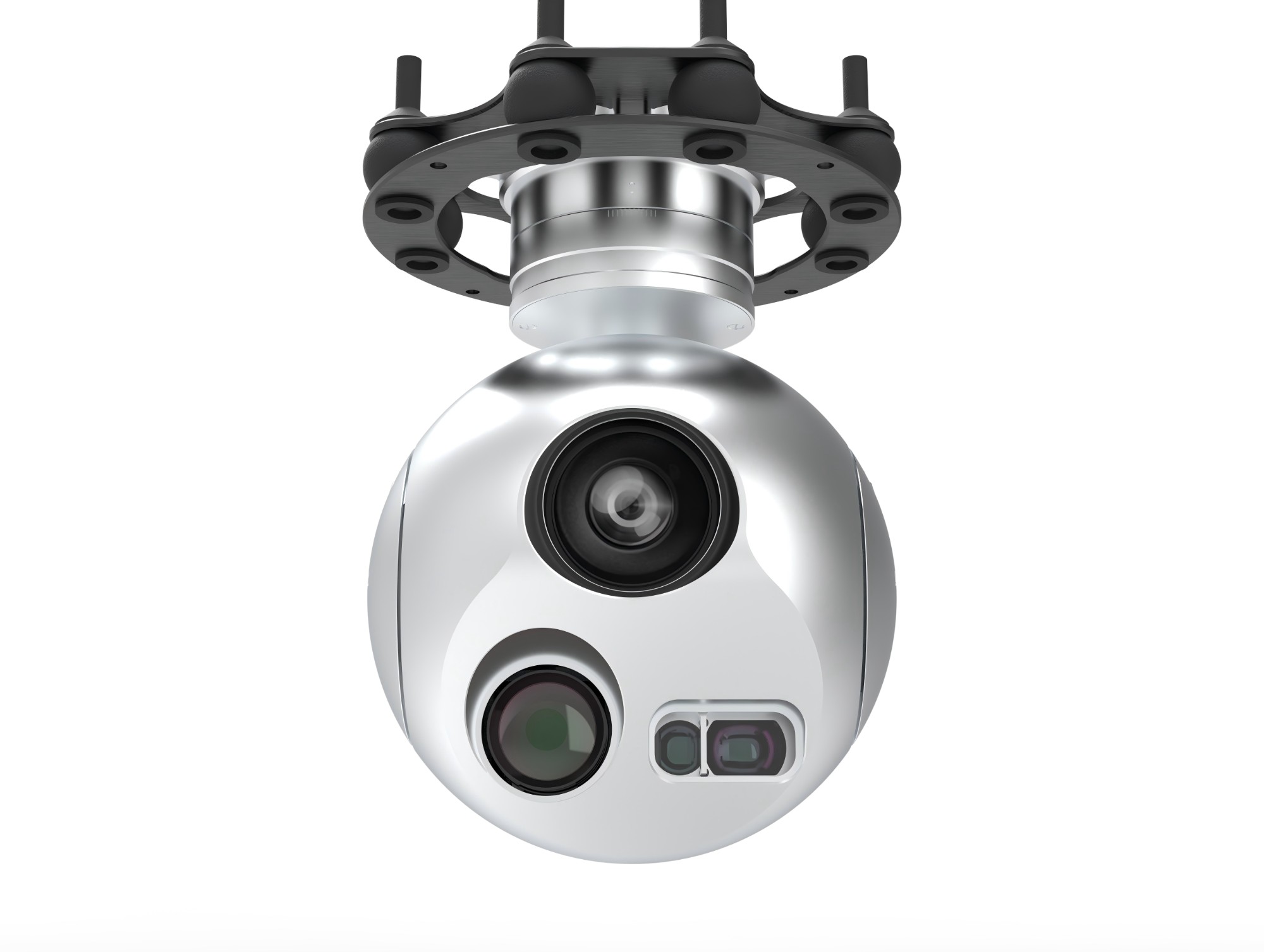

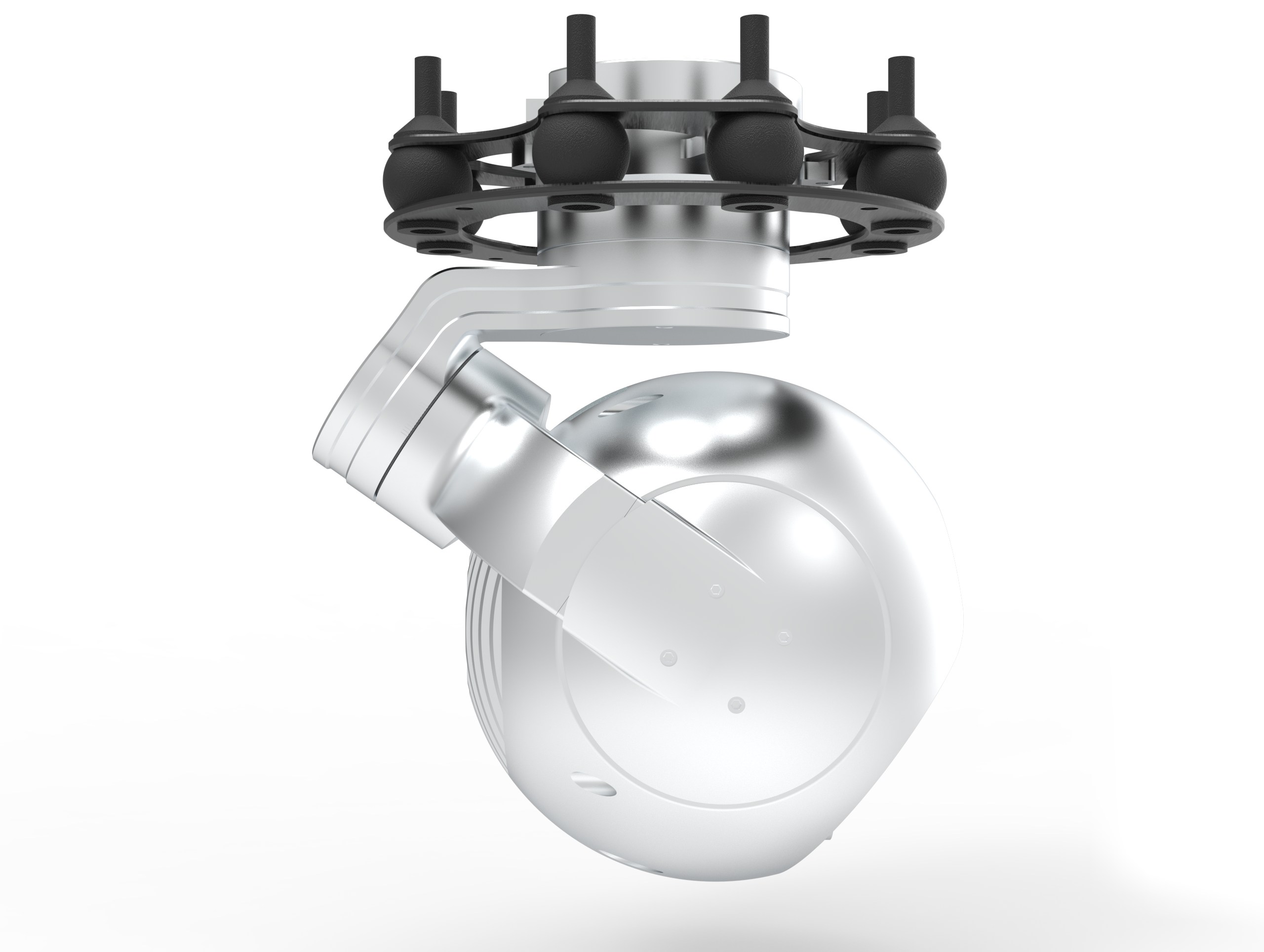

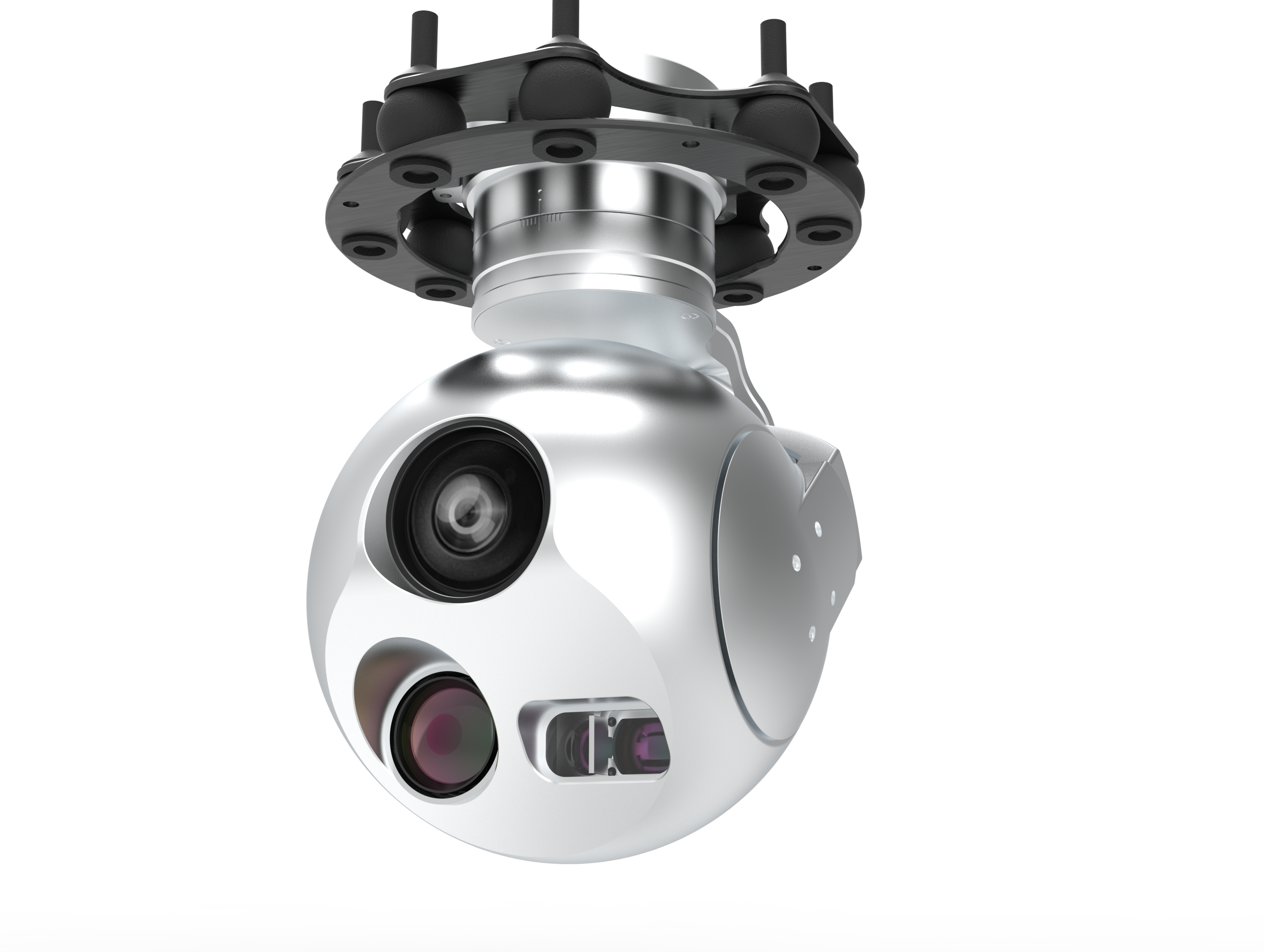

The L10TR three-axis three-frame gyro-stabilized three-optical pan-tilt adopts a miniaturized and lightweight industrial design. It is equipped with a 10x continuous optical zoom visible light camera, a long-wave uncooled infrared imaging component, and an anti-delay module, AI target recognition and multi-target tracking module. It is mainly applied in the monitoring fields of imaging, detection, tracking and recognition of ground targets. It meets the needs of line inspection, accident investigation, emergency rescue, law enforcement evidence collection, anti-terrorism and anti-violence, etc.
Technical parameters
Multi-target tracking | Single target tracking | |
Target type | People, vehicles, ships, and airplanes | General goals |
Update frame rate | ≥20FPS | ≥50FPS |
Tracking rate | ≥30pixels/frame | |
Recall rate | ≥90% | |
Accuracy | ≥80% | |
Minimum target size | 32x32 @1080p | |
Number of tracked targets | ≥20 | |
Tracking jump rate | ≤15% | |
Thermal imaging | ||
Operating band | 8μm~14μm | |
resolution | 640x512 | |
Pixel | 12µm | |
focal length | 19mm/F1.0 | |
Field of view | 23°x18.4° | |
Detection range | People 1.0km, vehicles 2.4km | |
Identification distance | People 0.2km, vehicles 0.6km |
Visible light | |||
Operating band | 0.4μm~0.9μm | Field of view | 58.3°x7.1° |
resolution | 1920x1080 | Detection range | People 2 .7km, vehicles 11 .9km |
focal length | 4.7mm~47mm | Identification distance | People 0 .6 km, vehicles 2.9km |
Power characteristics | |
Power supply range | 11V~28V |
Average power consumption | 15W |
Peak power consumption | 30W |
