Thrower
1.Compatible with 60mm compression. Each round weighs 1.2kg.
2. The external dimensions are 260mm*335mm*200mm, with 8 rounds
3.60-8, weight 3kg
4. Materials: aviation aluminum, carbon fiber, and stainless steel
5. Launch mode: Automatic single-shot drop
6. Dual linkage mode for heading and pitch
7. The diameter size is compatible with 60mm
8. Control mode: SBUS signal channel; Or independent 6-channel PWM
9. The control throw accuracy is less than 2 meters
10. Throwing methods: One-click throwing and independent throwing
11. The usage method is to automatically push upwards with a card lock for loading
12. The on-board aiming function features one-click downward aiming and a cross cursor pointing to six
13. The control distance is the same as that of the unmanned aerial vehicle

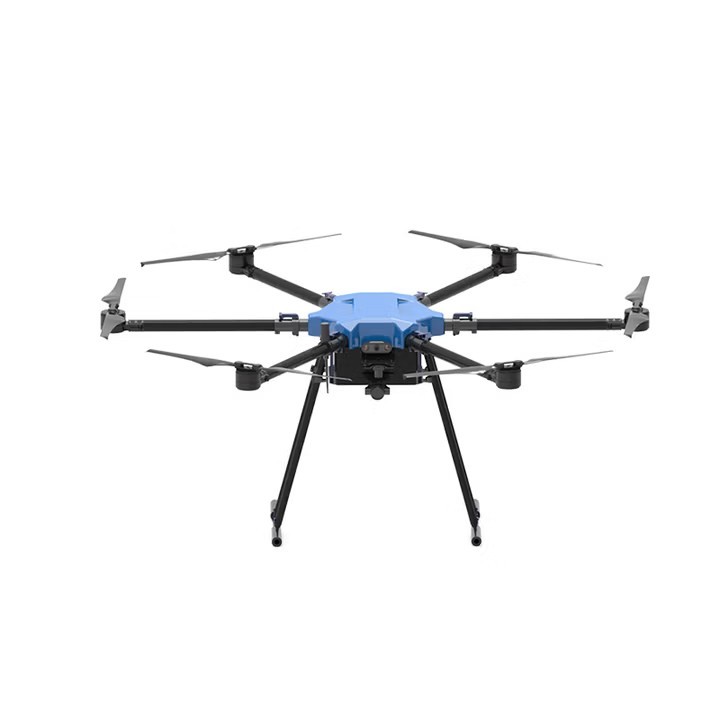

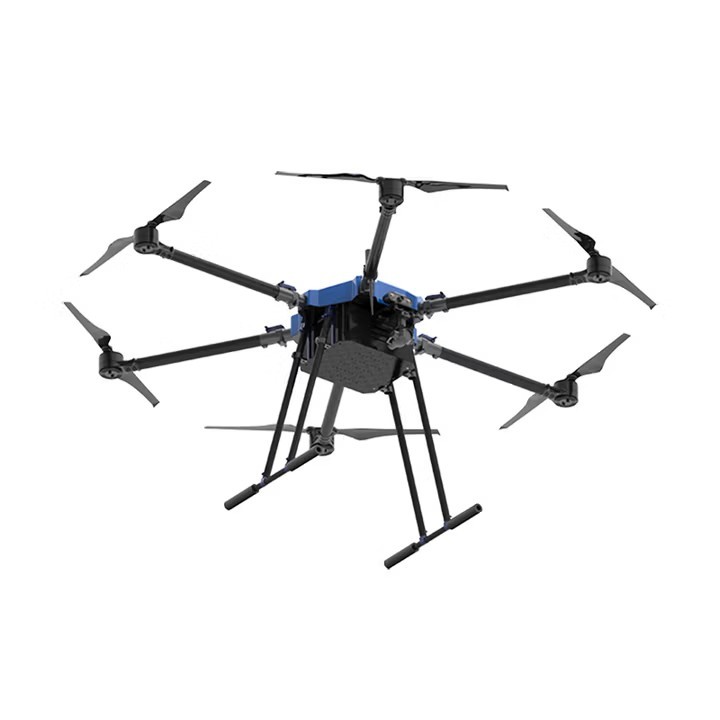

Product Paramenters
Technical parameters | |||
Body size | 3000mmx3000mmx800mm | Maximum control distance | 10km(open and unobstructed,no electromagnetic interference) |
folded size | 1100mmx900mmx850mm | maximum climb height | 1000m |
Wheelbase | 2200mm | Hover accuracy | Vertical:±0.5m(GPS positioning accuracy) |
Material | Aviation aluminum alloy,carbonfiber | Satellite positioning module | GPS/GLONASS/BDS/Galileo |
Empty weight | 45kg(excluding batteries) | pod camera | High-definition 4K image quality/10-30mm zoom |
Maximum load | 50kg | Power system | FOC brushless power system |
maximum ascent speed | 5m/s | working temperature | -20°C-50°C |
maximum descent speed | 5m/s | Waterproof level | Body wash water |
maximum horizontal flight speed | 20m/s | battery capacity | 52000mah*3 |
Maximum withstand wind speed | 12m/s | maximum flight altitude | 5000m |
maximum flight speed | 20m/s | flight time | 70min |
Handheld ground station H16
1. Battery life: Equipped with a large-capacity lithium battery. Working state >18 hours, standby state >24 hours
2. The remote control is equipped with a built-in display screen, with a size greater than 7 inches
3. The weight of the remote control is less than 1100g
4. Operating temperature :-30°C to 60°C
5. It is equipped with RJ45 interface, Type-CUSB interface, audio input/output interface and power interface. It has a Micro SD card slot with built-in microphone and speaker, supports 16-channel remote control, has no less than 4 three-position switches, and is equipped with an independent 2D pan-tilt control joystick
6. The display screen should have multi-touch functionality, a resolution of 1920X1200, and support manual operation (unlocking patterns and controlling the rotation of the pan-tilt through the touch screen). The touch points are greater than 5. The screen brightness is greater than 2000 nits, featuring a high-brightness display.
7. The remote control is equipped with 4G mobile communication, 5-band wiFi and wired network transmission functions
8. It features one-key take-off button, one-key landing button, one-key return button, video recording button, pan-tilt snapshot button, pan-tilt zoom button and custom button, which can control the pan-tilt in one-key return to center, one-key downward, tracking and other modes
9. All the remote rods are equipped with dust-proof rubber, and the outer shell is made of high-strength ABS and carbon fiber composite materials, with a strap mounting point
10. All parameters, images, Settings, etc. of the unmanned aerial vehicle must be displayed in an integrated manner and integrated into the ground station APP
11. The flight modes of fixed-altitude, manual and intelligent route unmanned aerial vehicles can be set
12. It can display the longitude, latitude, horizontal speed, vertical speed, nose orientation, relative altitude, pitch Angle, roll Angle, remaining flight time, remaining battery power, satellite navigation number, GPS signal quality, and transmission link signal quality of the unmanned aerial vehicle, etc
13. It has a real-time voice broadcast function, and the playback information and time interval can be adjusted. When the unmanned aerial vehicle (UAV) experiences situations such as insufficient battery power (low battery level one or two), attitude Angle exceeding the specified range, insufficient number of positioning satellites, motor abnormality, communication interruption, or triggering the flight setting boundary, the remote control should be able to issue audible and visual alarms through the buzzer and screen prompts
14. The remote control can use internal and external storage for data storage, with a maximum supported capacity of over 128G
The remote control can be connected to the system management platform to upload and download flight tasks
16. It is equipped with a built-in GPS module, which can locate the position of the remote control and support dynamic updates of the drone's return point based on the real-time position of the remote control
17. It can store and replay the videos and flight trajectories captured by the drone, and also supports image capture
18. The remote control can set parameters such as the exposure mode, self-balance, bit rate, resolution, frame rate, bit stream type, encoding type, and fogging mode of the on-board camera and send them to the unmanned aerial vehicle
19. It has an electronic fence setting function, allowing for the setting of circular electronic fences and the restriction of the flight height of unmanned aerial vehicles
