Product presentation

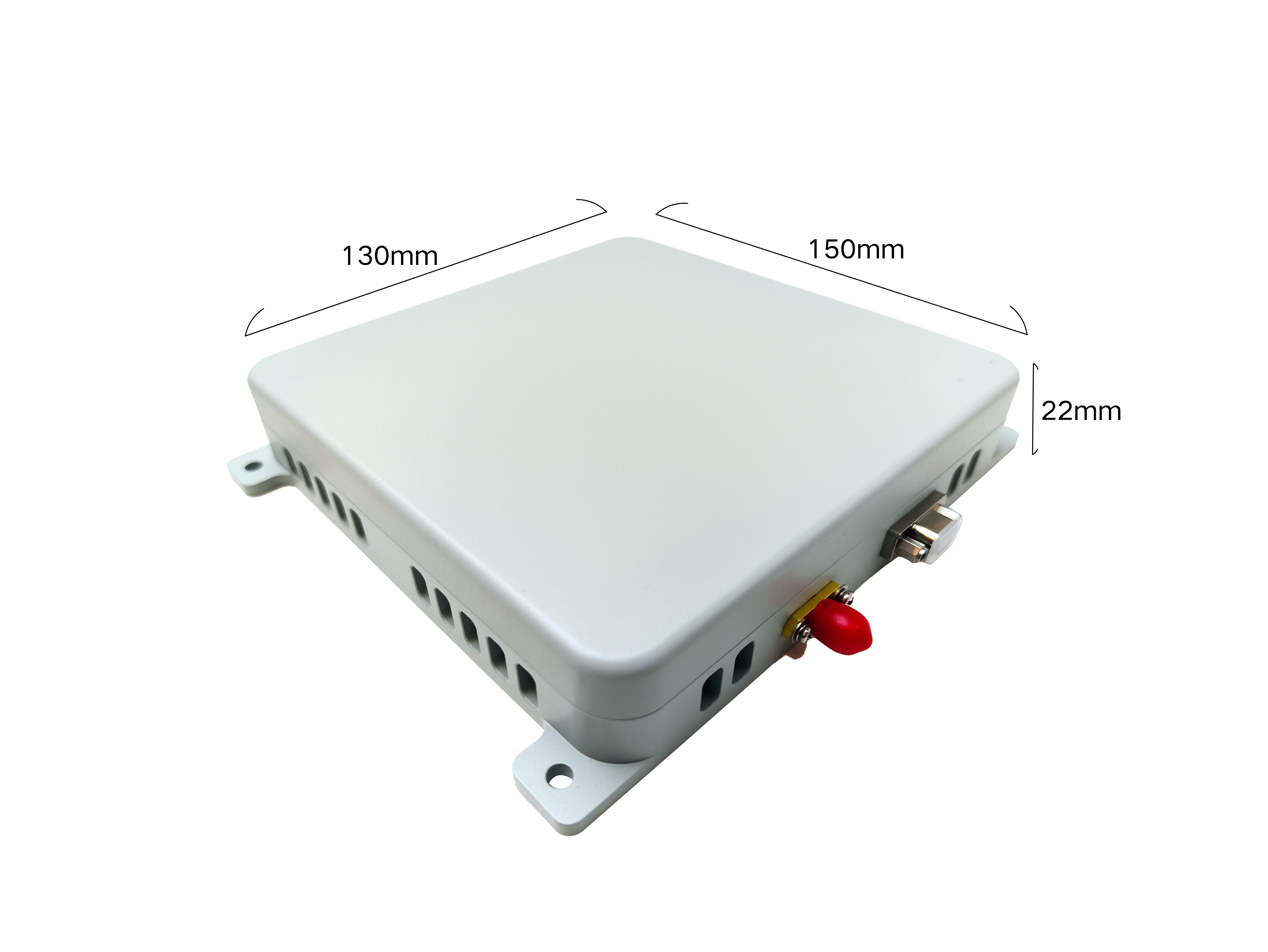

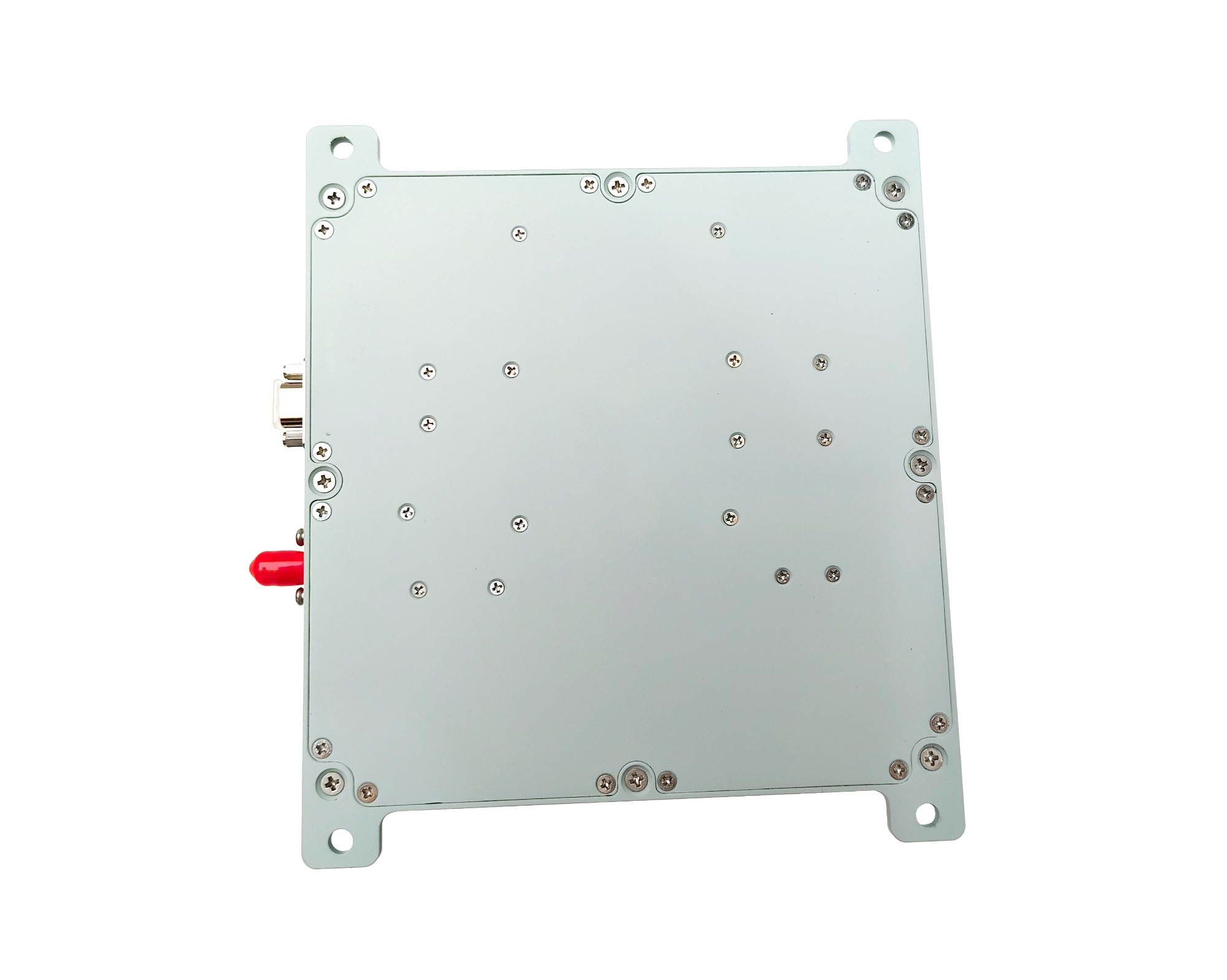

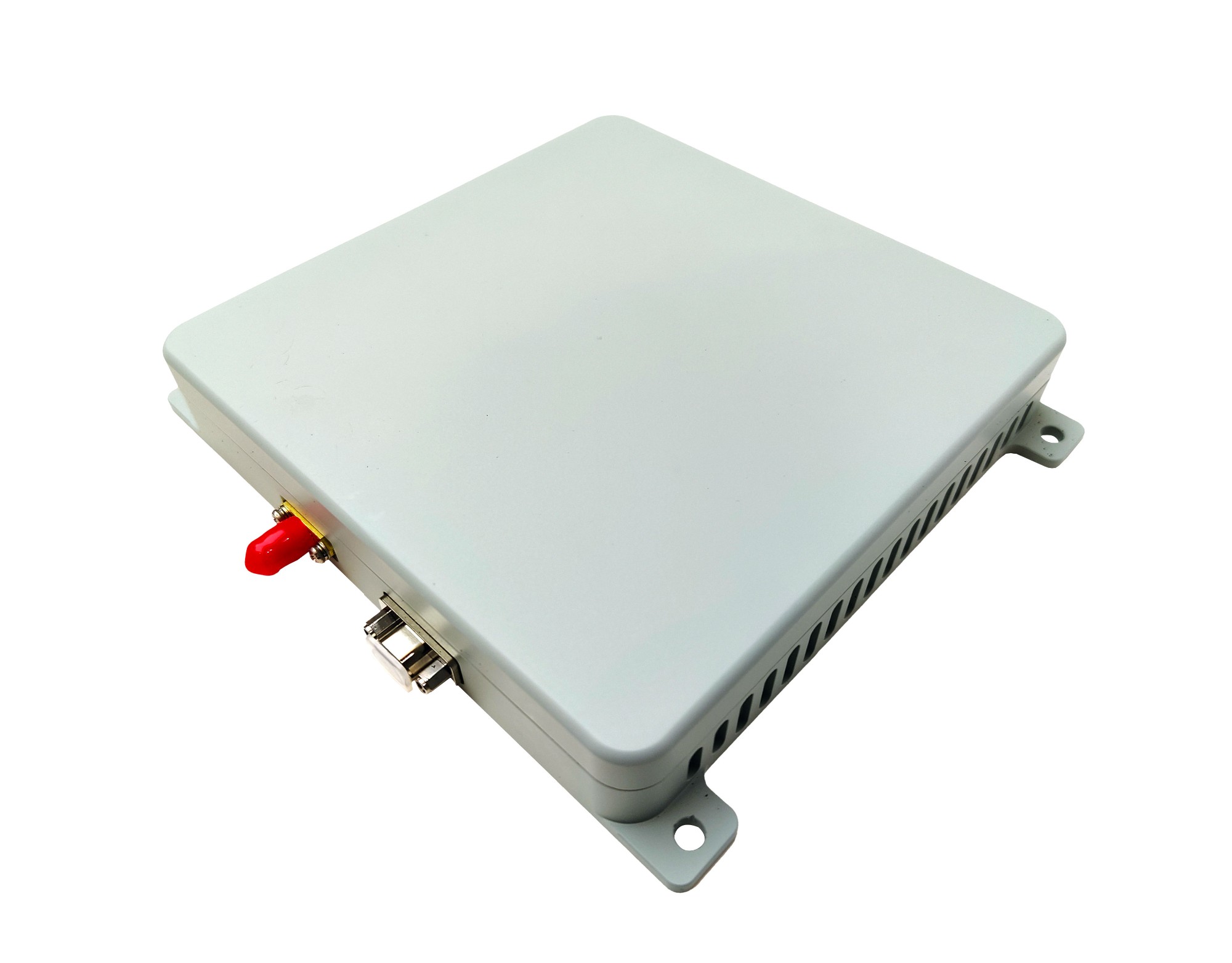

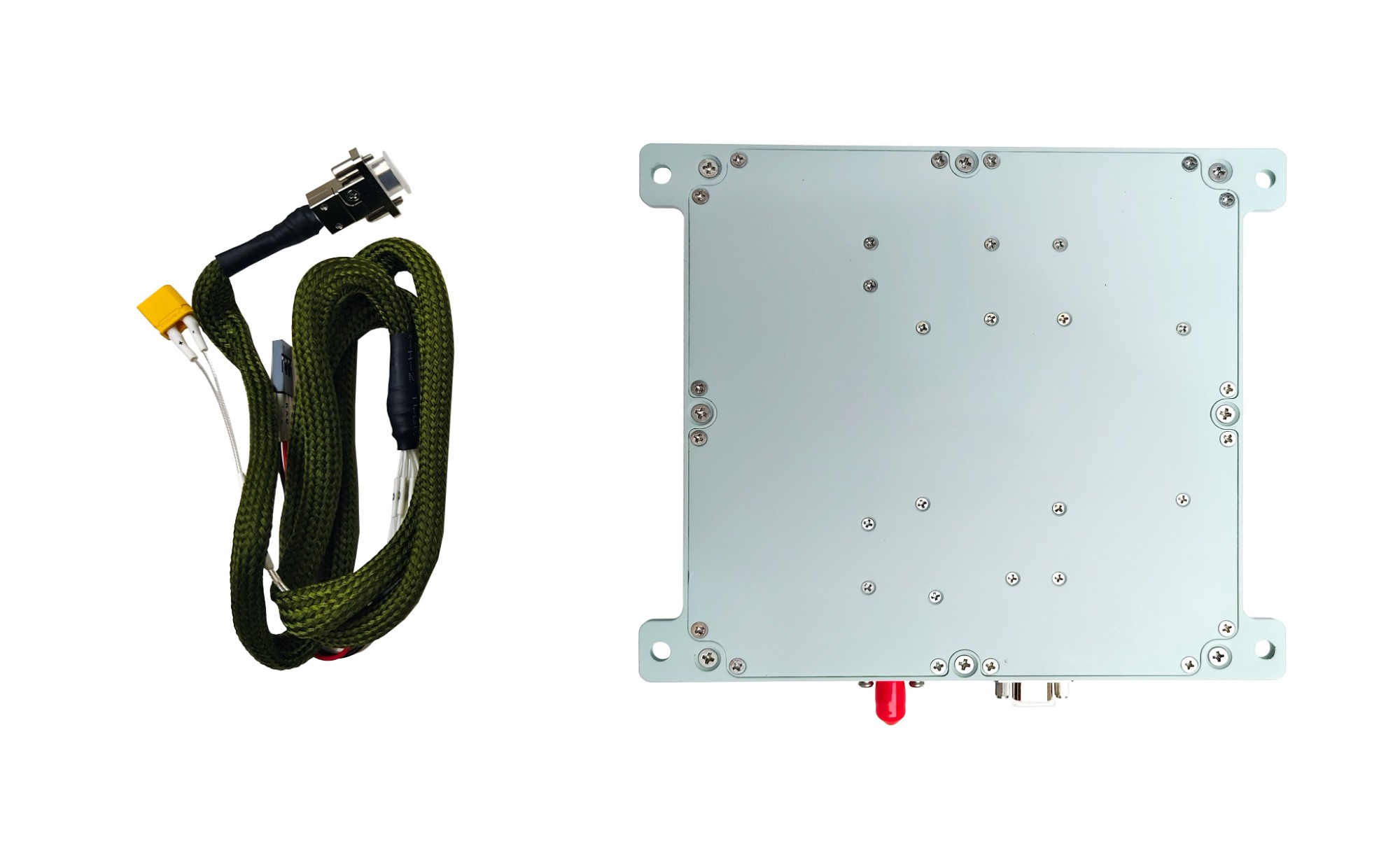

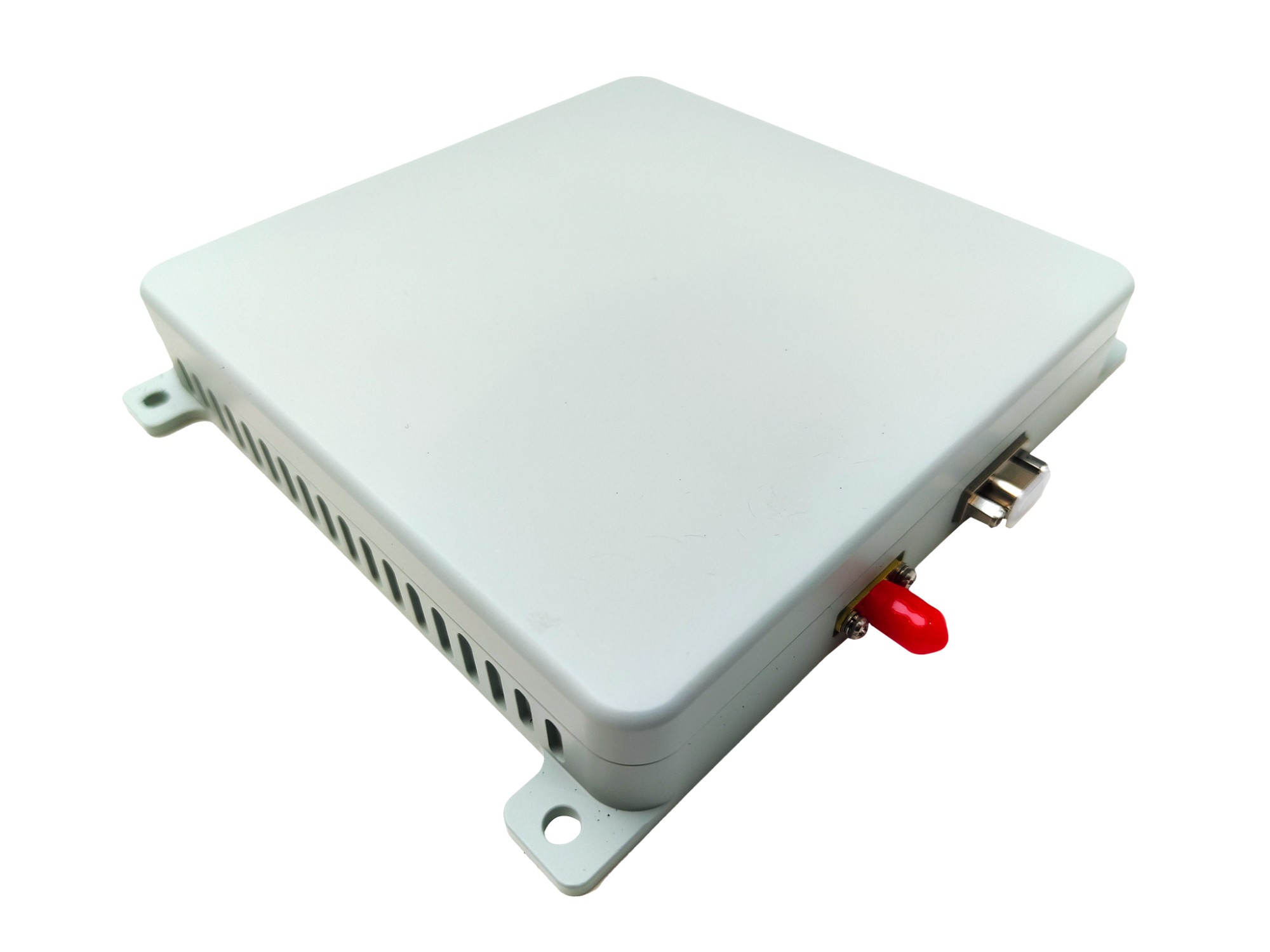

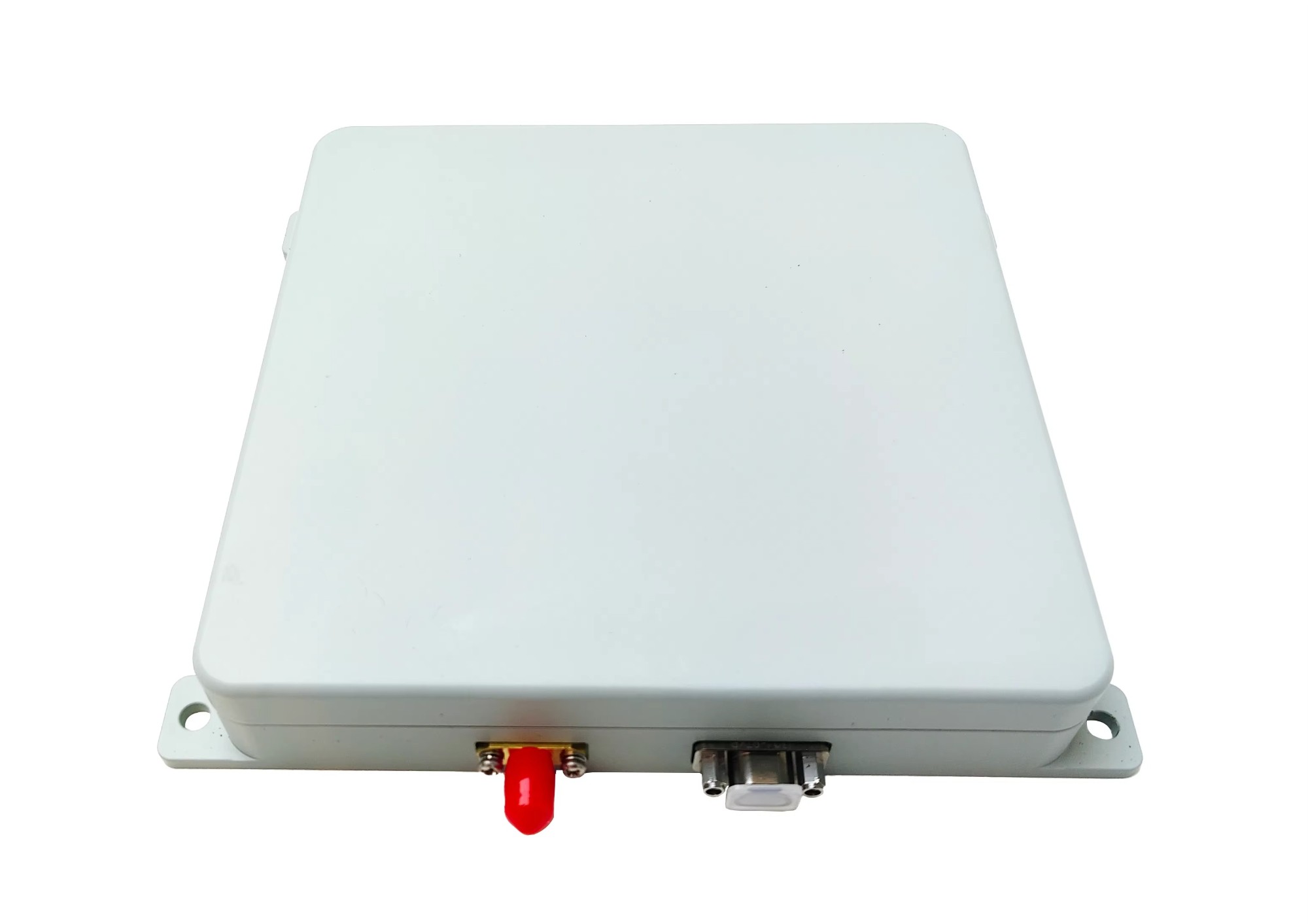

The TX2501 miniaturized dual-antenna integrated device is a compact satellite navigation system designed for civilian drones and industry users. It supports dual-frequency signal reception of BDS B1i and GPS L1, has anti-broadband interference capability with a maximum interference count of 3, and offers anti-spoofing capabilities. The device integrates an antenna array, anti-jamming components, and a satellite navigation receiver, featuring miniaturization, lightweight design and low cost.
Behaviour of electricity
Working frequency | L1:1575.42MHz | Timing accuracy | ≤100ns |
Interference performance | Unidirectional interference: ≥105dB | Working voltage | Input voltage 5~17V |
Positioning accuracy | Level 1.5 m (95%), | Power consumption | ≤13W |
Speed measurement accuracy | 0.2 m / second (95%) | Anti-spoofing performance | Output residual spoofing signal CN0: less than or equal to 20dB |
