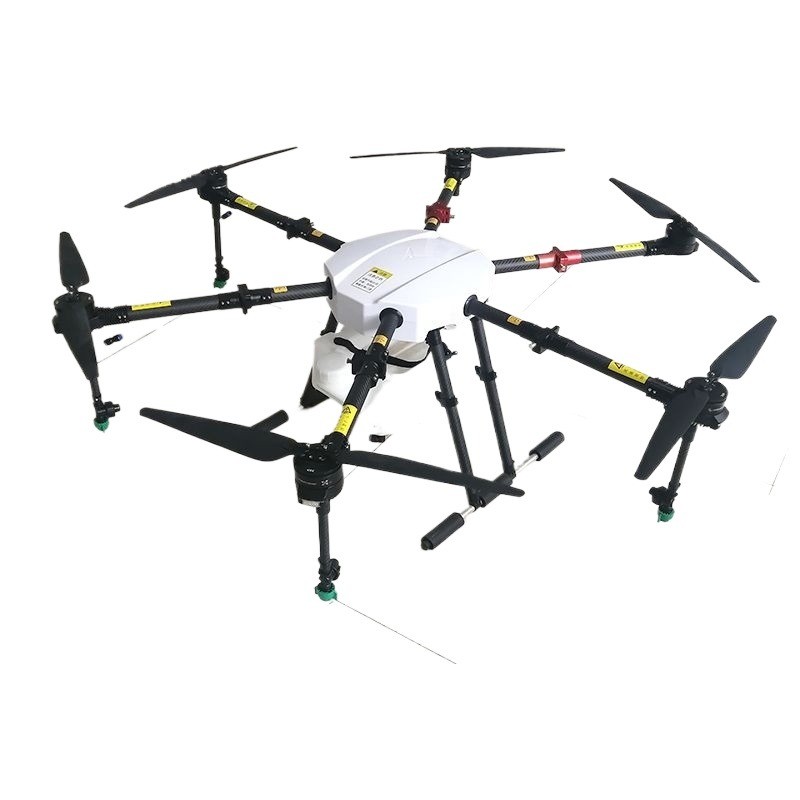

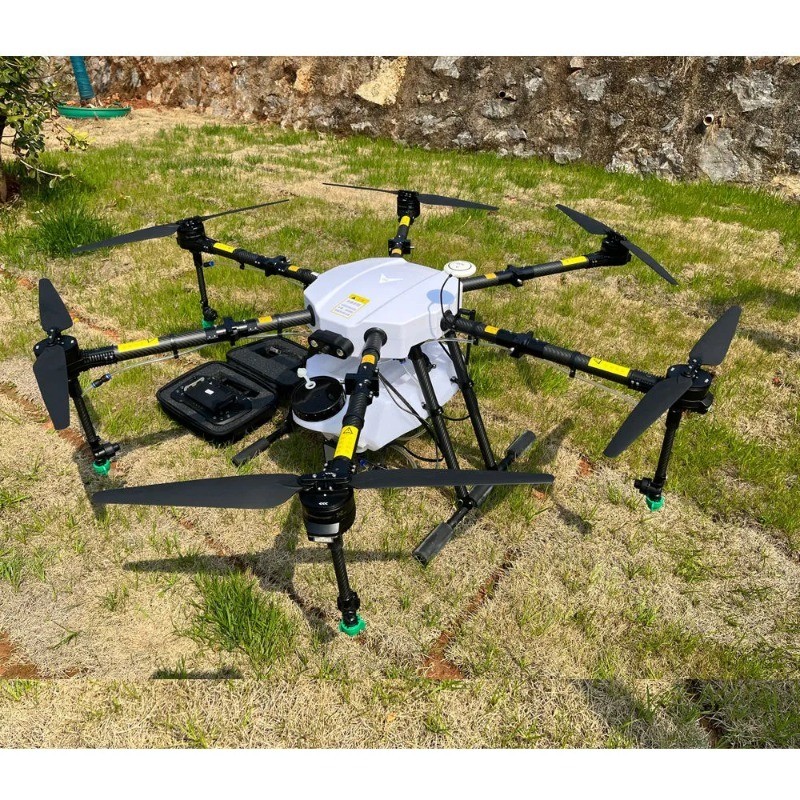

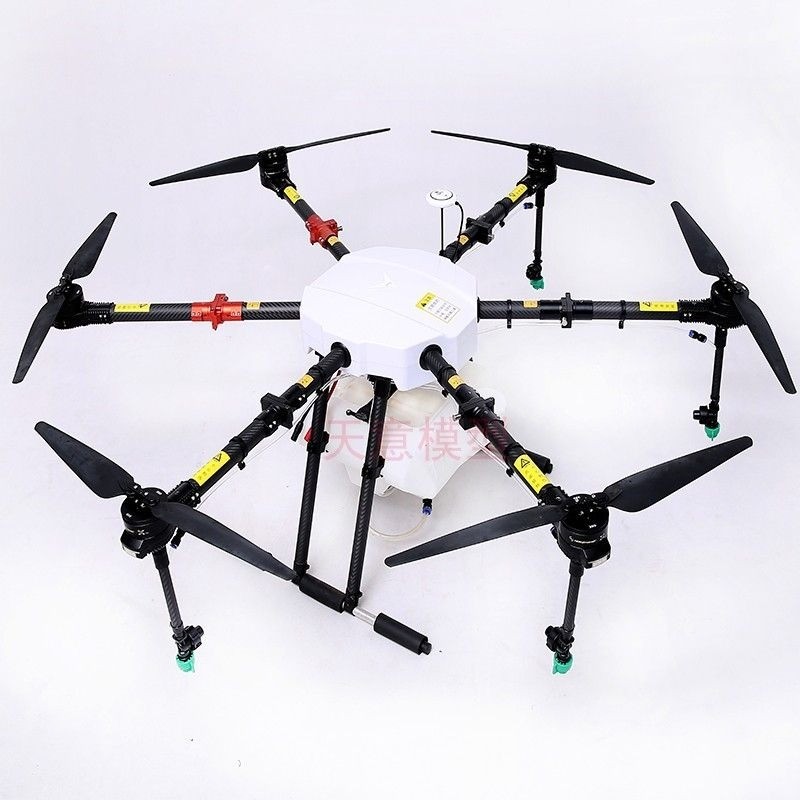

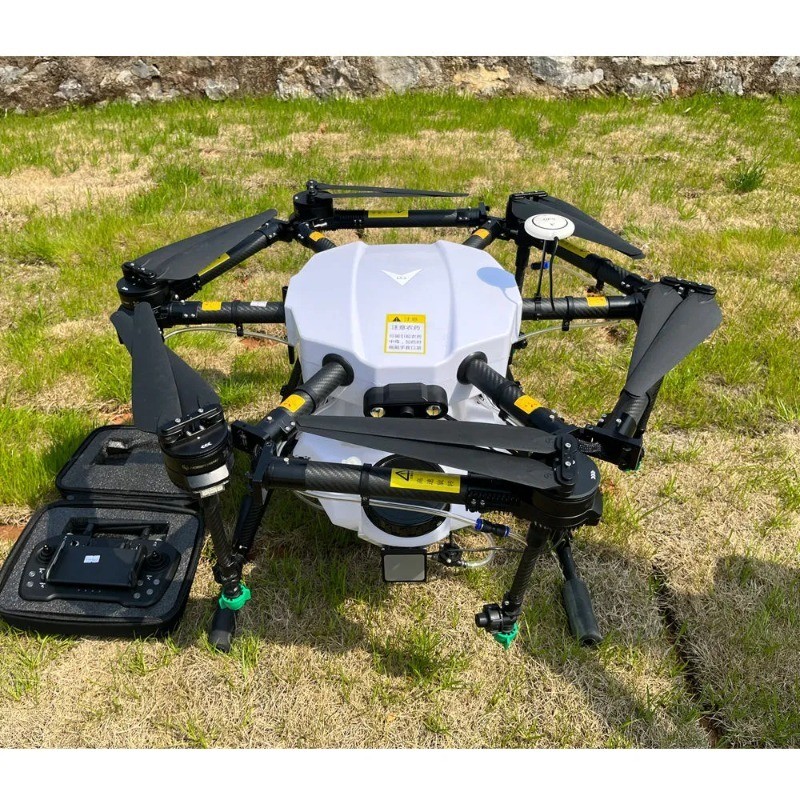

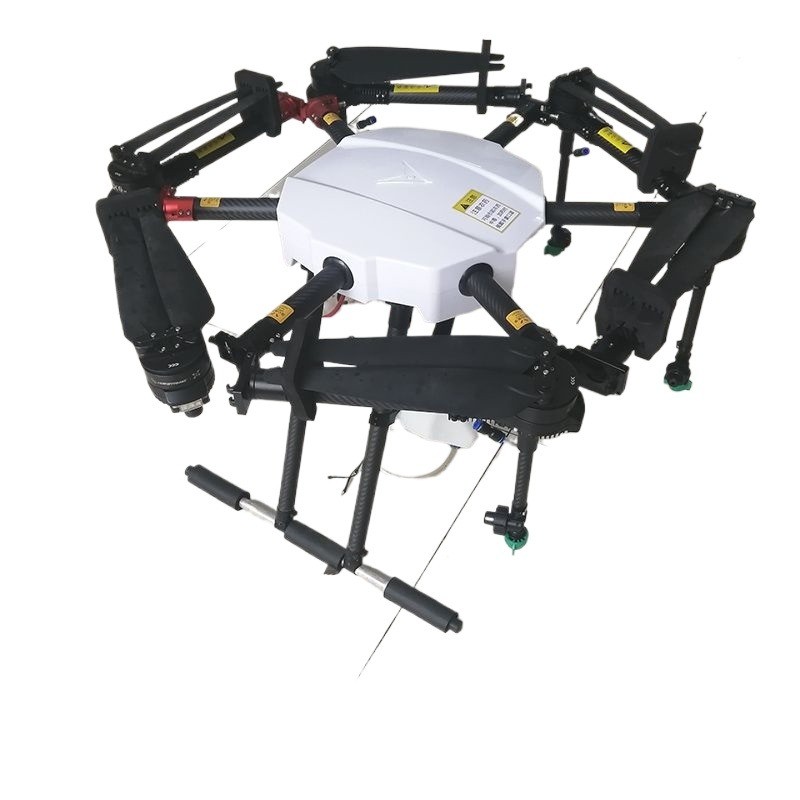

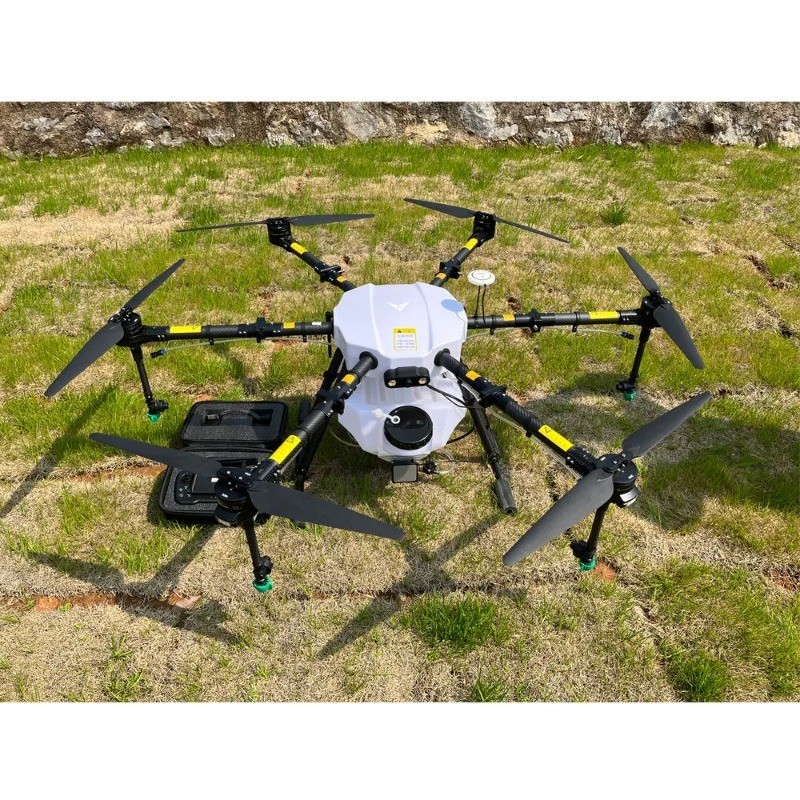

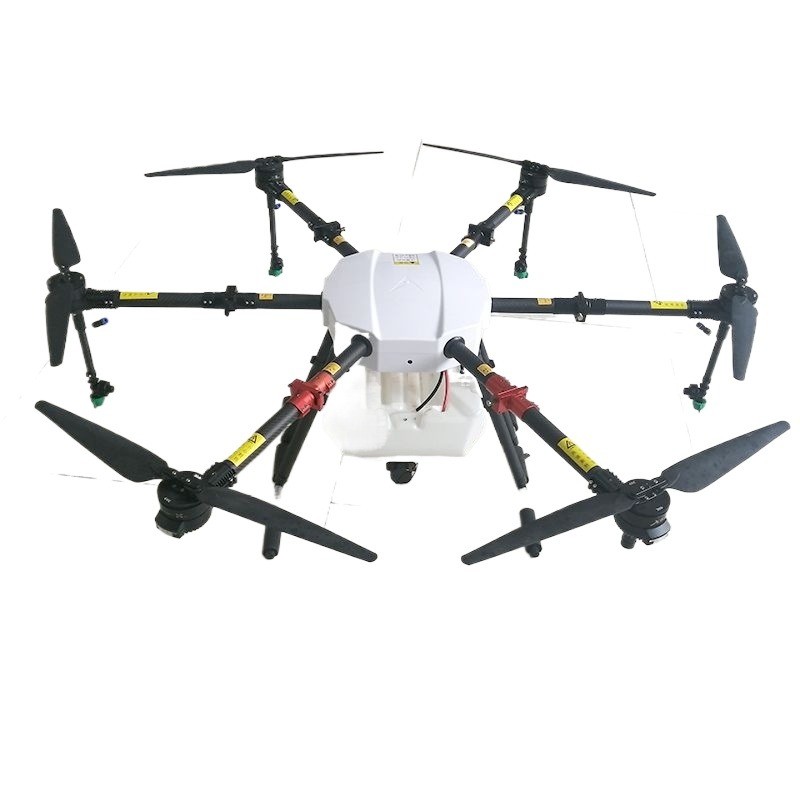

Yh-E02-6 Axis 10L Agricultural Drone

Power

Hobbywing X6 plus

Flight controller

K3A Pro

Remote controller

T10 Remote Controller + Tripod Camera (Night Flight Light + Camera + Image Transmission)

Battery

16000mAh 22.2V 6S Batteries

Charger

PC520 Dual-Channel 6S Charger

Wheelbase (mm)

1280mm

Folded Dimensions (mm)

840*780*535mm

Unfolded size (excluding propellers):

1280*1280*535mm

Arm Diameter

30mm

Weight (excluding battery)

10kg

Payload

10L

Flight Speed

0-10m/s

Spray Width

4-5m

Maximum Takeoff Weight

>28kg

Maximum Water Pump Pressure

0.5MPA

Spraying Flow Rate

Adjustable 0.8-5.0L/min

Efficiency

10-15 acre/flight

Flight Time

10-15 minutes (normal spraying time)

Remote Control Range

1000-2000 meters

Casing Color

White/Red
