Product Description
Overview
The YH-C21D150 is a large-sized agricultural drone designed for robust performance and efficiency in farming applications. It boasts a substantial maximum take-off weight of 360kg and features a compact yet sturdy body design with a wheelbase of 3118mm. For precise field monitoring, it is equipped with a high-definition 1080P camera offering a 360° pan-tilt range. Enhancing its operational flexibility, the drone can be conveniently folded to a compact size of 1580mm1680mm1200mm for storage and transport. Powering this advanced UAV is a reliable 18kw/H battery, ensuring extended mission durations.
Detailed technical parameters
Body material | High strength composite carbon fiber | Body wheelbase size | 3118mm |
Collapse folding size | 1580mm*1680mm*1200mm | Total weight of thedevice(including battery) | 135kg empty; 73kg |
maximum take-off weight | 360kg | Maximum lifting safety load Rated lifting payload; | 200kg (flight time reduction) |
maximum flying speed | S mode; 21m/s | 200kg maximum payload endurance 150kg rated payload endurance | ≥12-65 minutes(full front, empty back) |
battery capacity | 18kw/h | Airborne avionics; | Military-grade three -axis redundant system |
Flight hover accuracy | 0.1m | Maximum wind resistance; | ≥6 on the Beaufort scale (or ≥8 on the Beaufort scale) |
Emergencyobstacle avoidancecapability | Radar+Vision+ElectronicFence | Distance of remote control for integrated data and graphics | 30km (open and no interference) |
Pan-tiltfreedom | 360° | Camera resolution | 1080P |

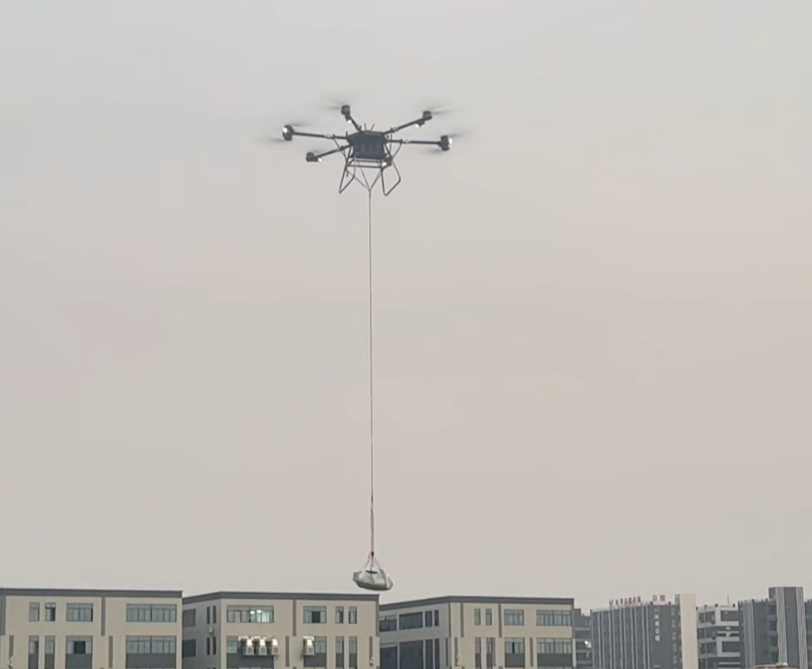

Missionaltitude | 20 to 1200 meters | A multi-purpose excuse | Fire/Transport/Lifting Support |
Workenvironment temperature | -20 to 65 degrees | Waterproof, dustproof grade | IP68 (light rain) |
